Sensors
J012/J013/J014 3-56 SM
3.8.5 2ND REGISTRATION SENSOR
Preparation:
Remove platen or ADF. ( 3.2.4, 3.2.5)
Raise the scanner unit to full upright. ( 3.2.7)
Remove: (1) paper cassette, (2) paper output tray, (3) right cover (unlock the carriage so
you can push it left/right), (4) left cover, (5) scanner unit, (6) rear cover
( 3.2.8, 3.2.10, 3.2.12, 3.2.14, 3.2.15)

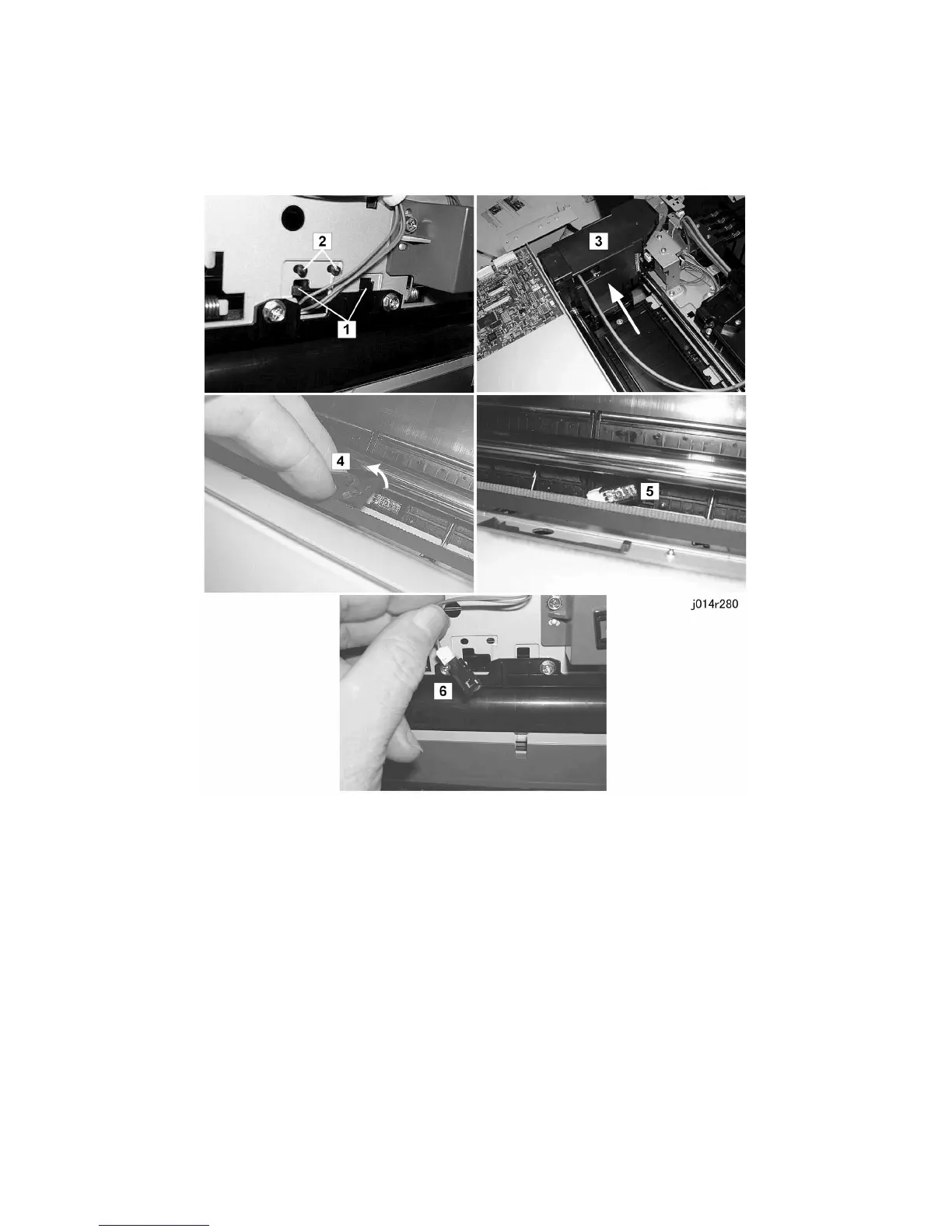

1. To dislodge the sensor cover pinch the hooks inward [1] to release them as you push on
the boss pins [2].
2. Push the carriage [3] to the right side of the machine.
3. Remove the dislodged sensor cover [4].
4. Remove the sensor [5].
5. Pull out the sensor [6] and disconnect it (x1).
