Sensors
J012/J013/J014 3-54 SM
3.8.3 INK LEVEL SENSOR
Preparation:
Remove platen or ADF. ( 3.2.4, 3.2.5)
Raise the scanner unit to full upright. ( 3.2.7)
Remove: (1) paper cassette, (2) paper output tray, (3) right cover ( 3.2.8, 3.2.10)

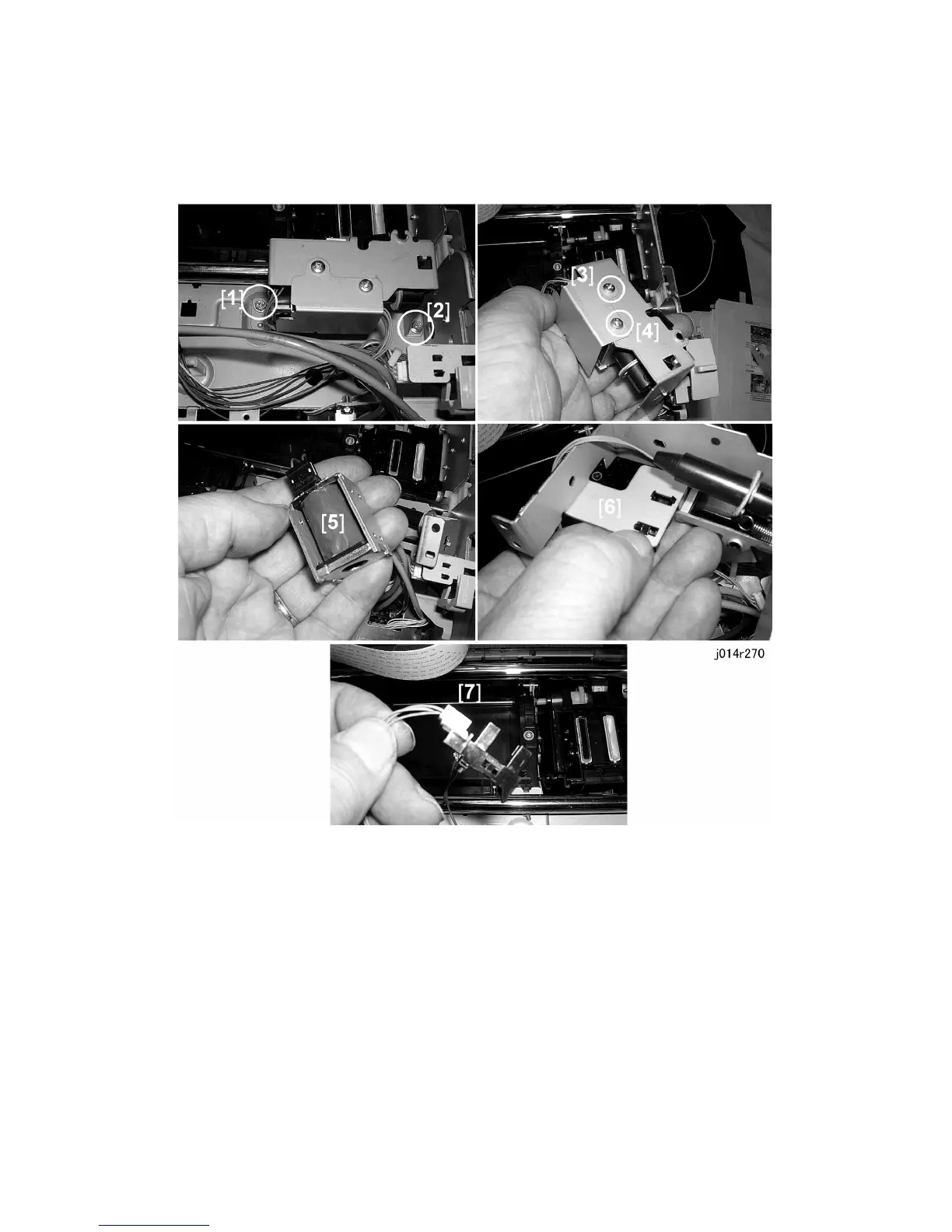

1. Remove the bracket screws [1], [2] (x2)
2. Remove the air release solenoid screws [3], [4] (x2).
3. Remove the air release solenoid [5].
4. Disconnect the sensor from the bracket frame (x1).
5. Release the sensor tabs [6].
6. Pull out the sensor [7] and disconnect it.
To Next Page
