Boards

SM 3-39 J012/J013/J014

Replacement

Adjustment

3.6.2 HVPS

Preparation:

 Remove platen or ADF. ( 3.2.4, 3.2.5)

 Raise the scanner unit to full upright. ( 3.2.7)

 Remove: (1) paper tray, (2) paper output tray, (3) right cover, (4) front cover

( 3.2.8, 3.2.10, 3.2.13)

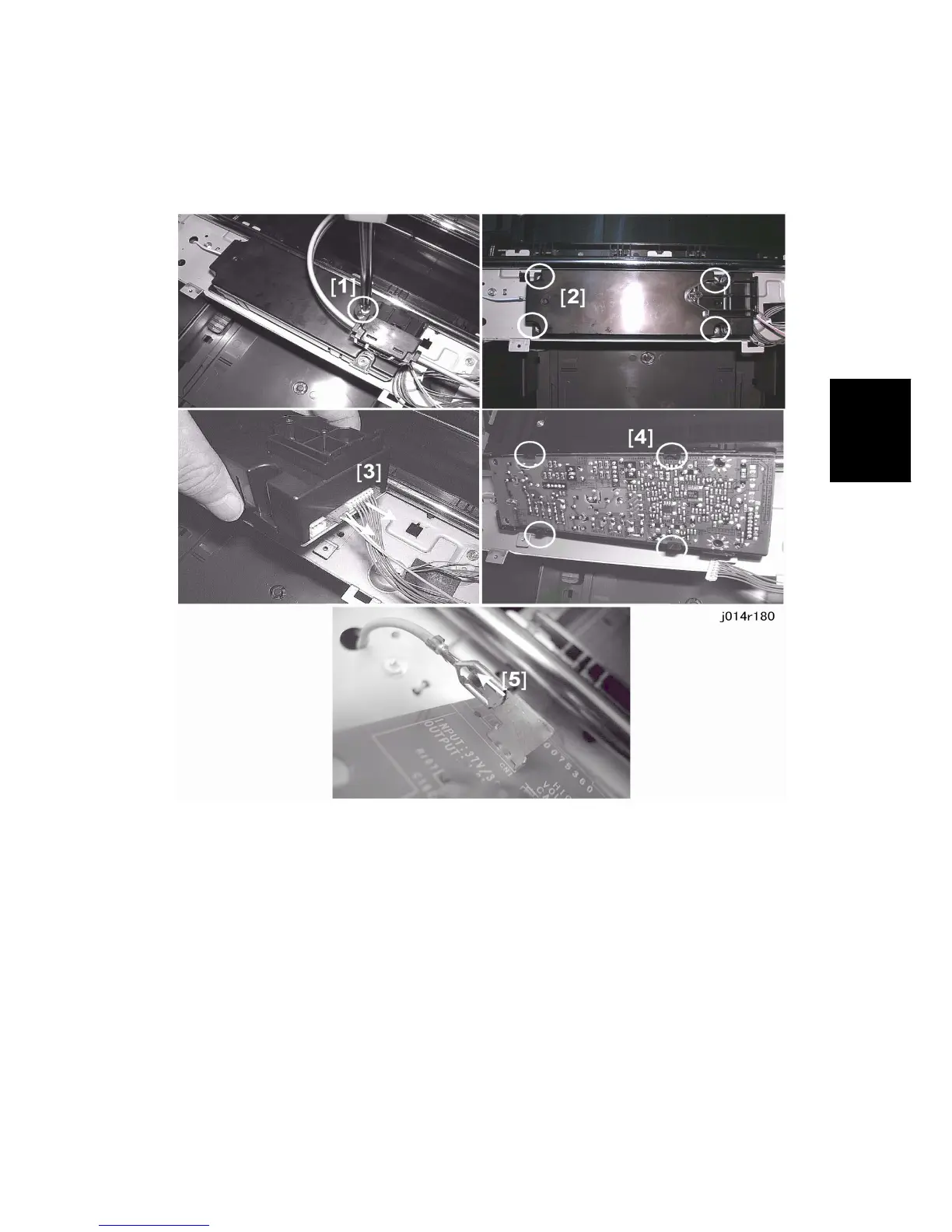

1. Remove screw [1] (x1).

2. Remove cover screws [2] (x4).

3. Disconnect connectors [3] (x2).

4. Disengage the hooks [4] (x4)

5. Disconnect the bayonet connector [5].
