Important Parts
SM 6-7 J012/J013/J014
Detailed
Description

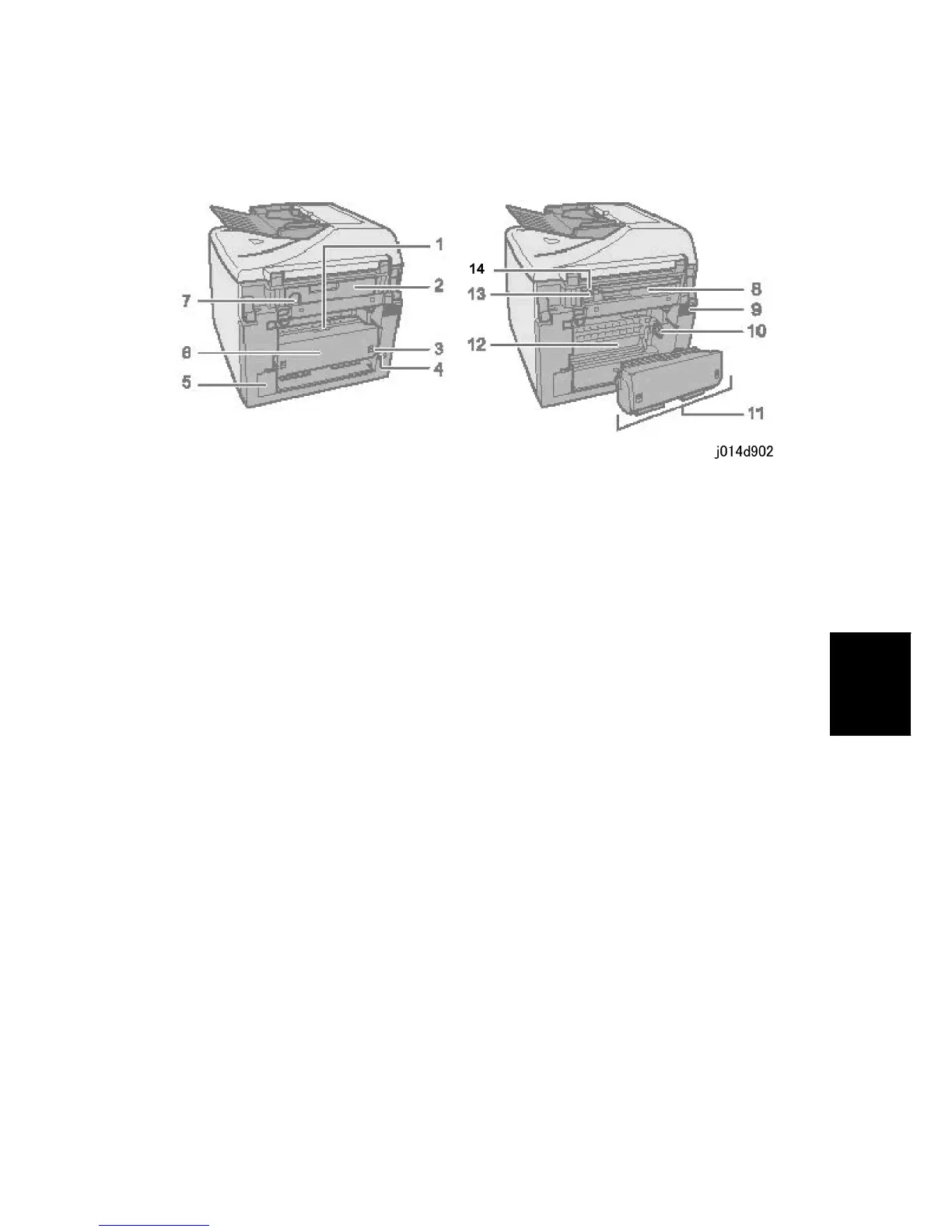

Rear View: J013/J014
1. Duplex cover button
Press to open the duplex unit cover.
2. Connector cover
Open to connect telephone line, extension telephone, USB cable, or install the NIB.
(The NIB is standard for the J014.)
3. Duplex unit locks
Unlocks and locks the duplex unit for removal and installation. The duplex unit must
always remain installed on the machine. The will not print with the duplex unit removed.
4. Power cord
The connection point for the power cord. Use only the power cord provided with the
printer. Make sure you ground (earth) the head of the plug at the power source.
 The detachable power cord is provided with the EU model only.
 The power cord of the NA model is permanently attached.
5. Ink collector unit cover
Open and remove the ink collector tank when it needs to be replaced, or before
servicing the printer.
6. Duplex unit cover
Open to remove paper jams from the duplex unit.
