Image Correction
J012/J013/J014 4-50 SM
Adj=0
OK=Yes
7. [#] or [%] > Select the adjustment value read from the test print
 # to select a + value
 % to select a – value
8. [Yes] > "Adjust"
9. [No] > "Cancel?" > [Yes]> Standby
4.5.6 HEAD POSITION
The print head is out of position if you see these:
 Broken vertical lines
 Blurred, smeared or streaked colors
Do the following procedure to correct these problems.
1. [Menu]> "System Settings?"
2. [#] or [%] > "Maintenance?" > [Yes]> "1 Nozzle Check?"
3. [#] or [%] > "4 Head Position?" > [Yes]> "Print Test Pattern?"
4. [Yes]> "Quality/Speed"
5. ['] or [(] > Select the test pattern ("High Quality", "Quality/Speed", "High Speed") >
[Yes].
"*Please Wait*" displays until pattern printing is finished. Do not start any other
operation until printing stops.
6. Look at the patterns and determine which is the best.

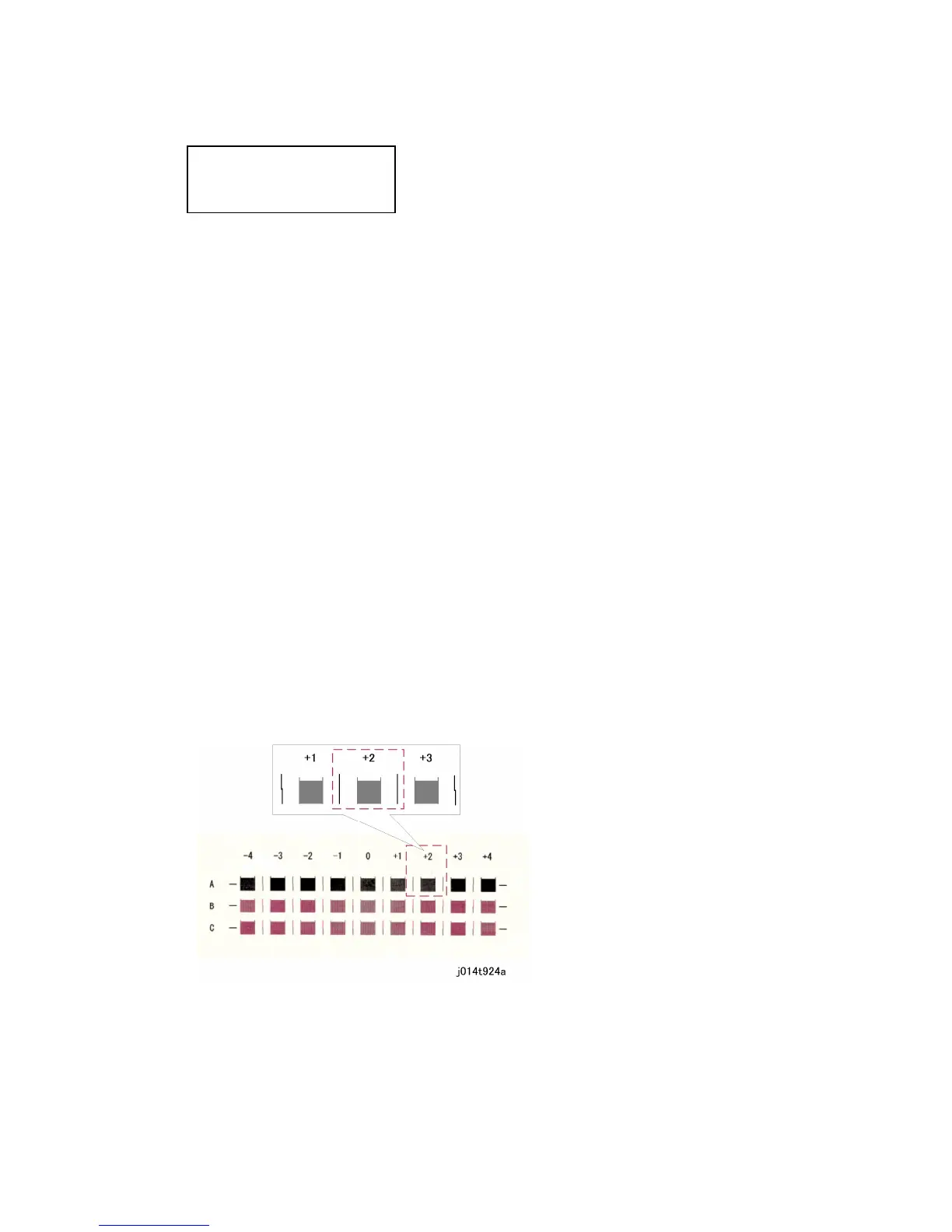

 The best pattern is the gray square with straight vertical lines on both sides.
 The pattern setting is read as a matrix value from the pattern. For example, if the
best pattern is in column "+2", line "A", the entry for adjustment will be "A" then "+2"
