Common Procedures
J012/J013/J014 3-10 SM
3.2 COMMON PROCEDURES

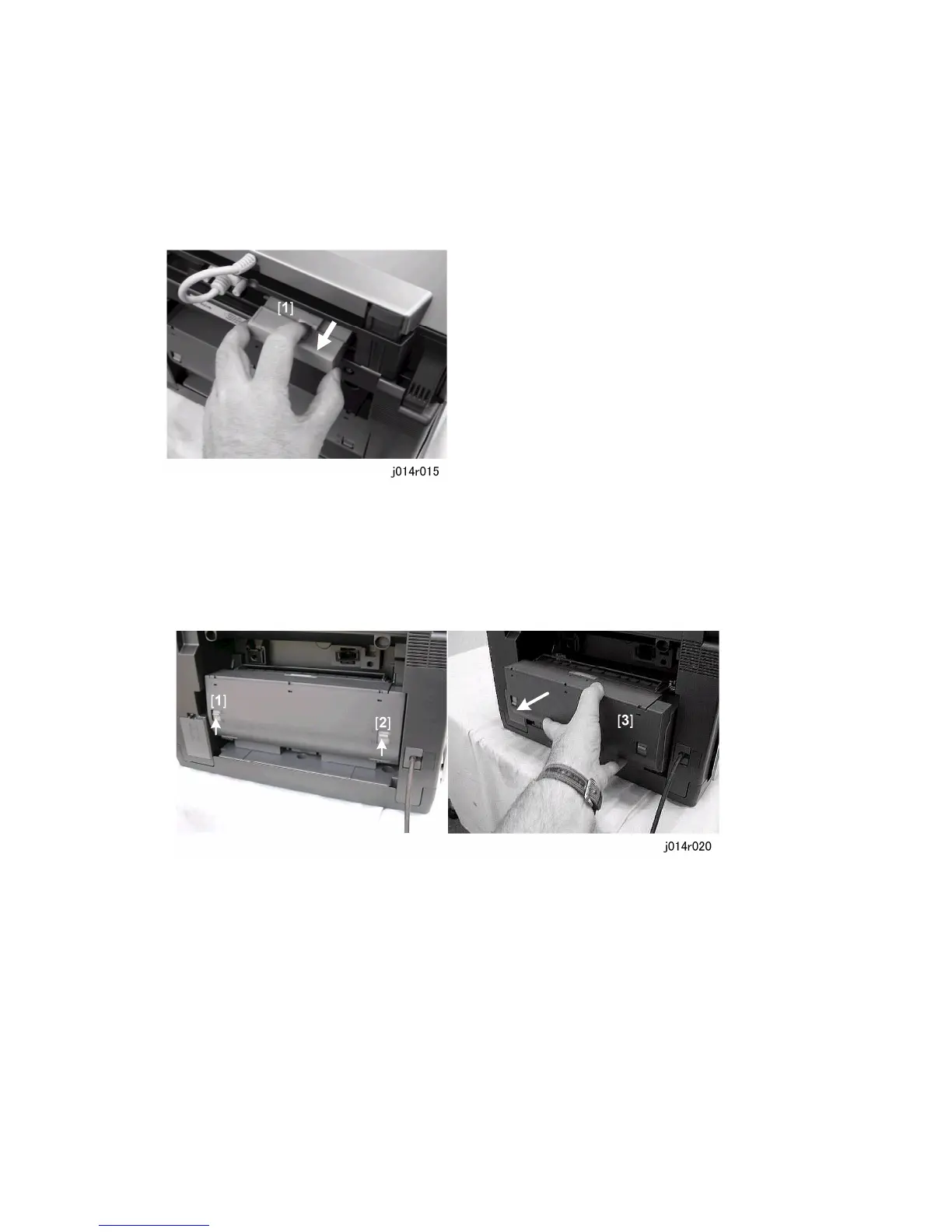

3.2.1 NETWORK INTERFACE BOARD (NIB)
This procedure applies to the J012/J013 only. The NIB is built into the J014.
1. Press down on the tab release [1].
2. Pull the NIB out of the machine.
3.2.2 DUPLEX UNIT
1. Raise the left and right release tabs [1] and [2] together to unlock the duplex unit.
2. Pull the duplex unit [3] out of the machine.
Reinstallation
 The duplex unit must be installed in the machine at all times, even for simplex printing.
The machine will not operate without the duplex unit.
 Reinstall the duplex unit carefully to avoid bending the contact pins.
