Paper Feed, Transport, Paper Exit
J012/J013/J014 6-60
SM

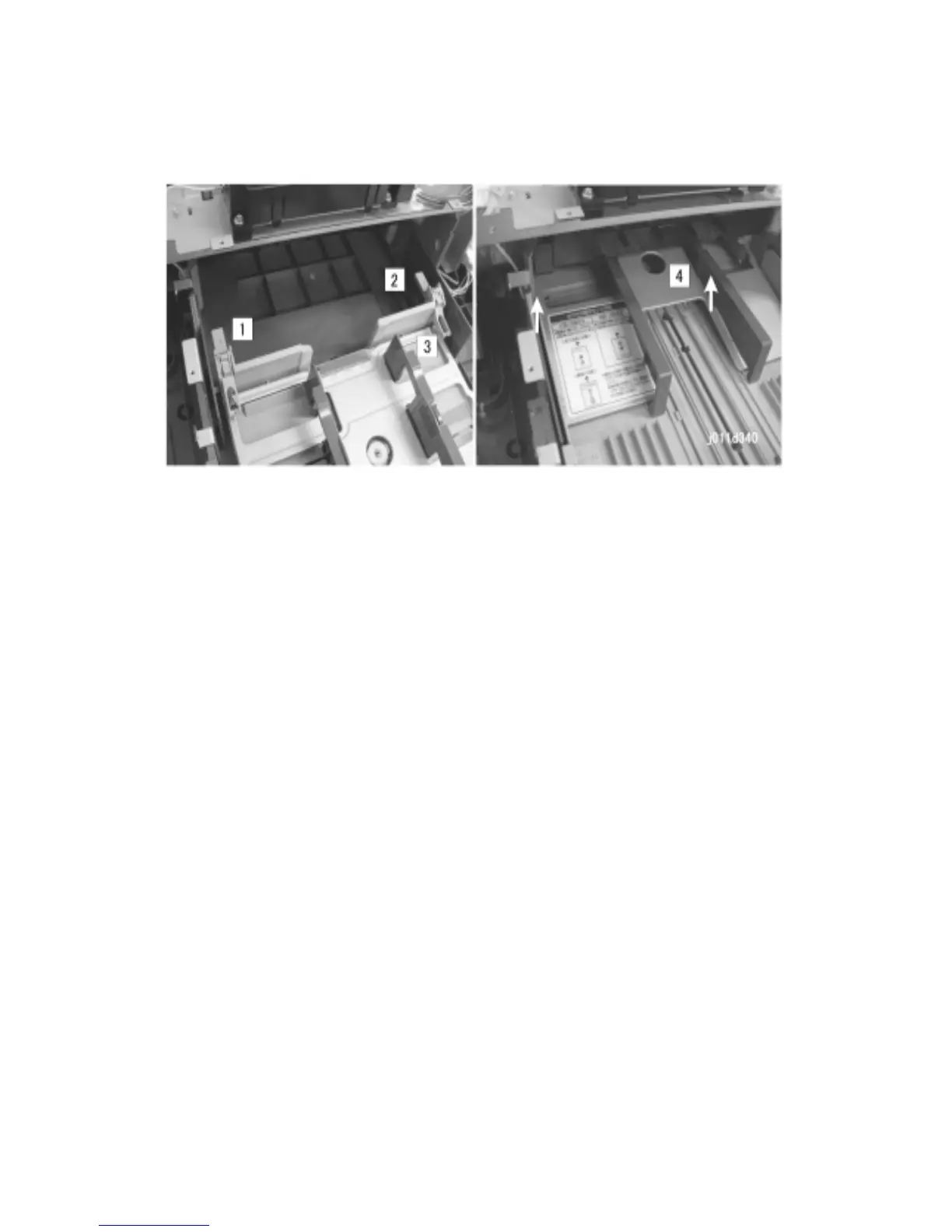

6.8.2 CASSETTE
LOCK/RELEASE
The arms [1] and [2] on both sides of the casse
tte [3] (guided by rails slanting upward ) raise
the bottom plate [4] when the paper cassette is pus
hed into the printer
. This raises the paper
in the cassette to the correct height for p
aper feed.
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
397
399
