Flushing Unit
J012/J013/J014 3-30 SM
3.3 FLUSHING UNIT
Preparation:
 Remove platen or ADF. ( 3.2.4, 3.2.5)
 Raise the scanner unit to full upright. ( 3.2.7)
 Remove: (1) left cover ( 3.2.12)

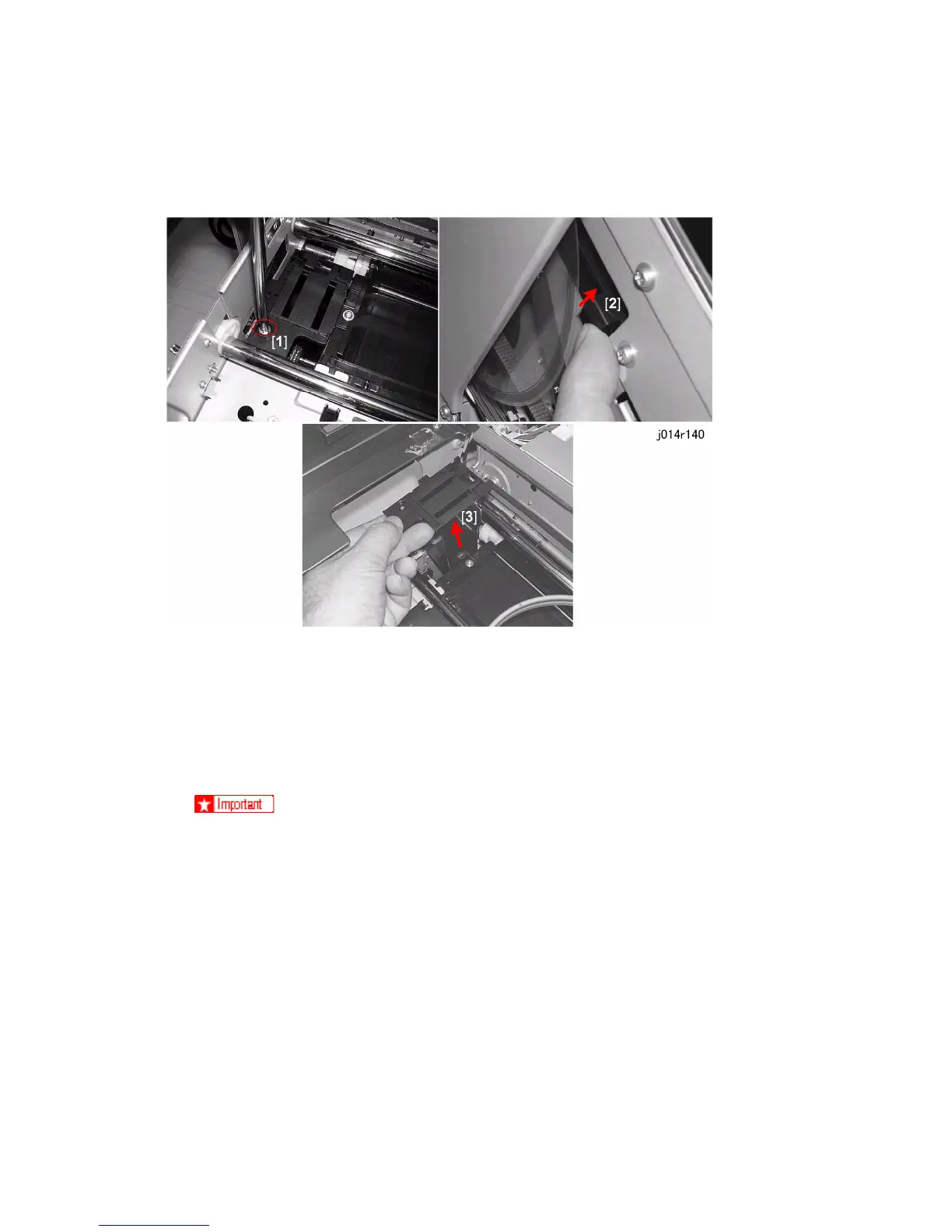

1. Remove screw [1] (x1).
2. Lift the hook [2] behind the vertical encoder wheel.
 Never touch the surface vertical encoder wheel around its edges.
3. Lift the flushing unit [3] out of the machine.
