Precautions for Loading Materials
Make sure that the material is loaded and set up correctly in the machine.
• Place the pinch rollers with the necessary space at both edges of the material.
• Be sure to place the pinch rollers on both edges of the material within the grit patterns that indi-
cate the position of grit rollers. If the pinch rollers are not placed within the range of the grit pat-
terns, the material cannot be fed properly.
• If the material lifts up even when it is fixed by pinch rollers on both edges, or when loading large
material, place pinch rollers in the middle of the material. When placing pinch rollers in the mid-
dle of the material, avoid placing them where there is cutting data as the pinch rollers may leave
marks on the material.
• Make sure that the material is loaded straight. If not, the material cannot be fed properly.

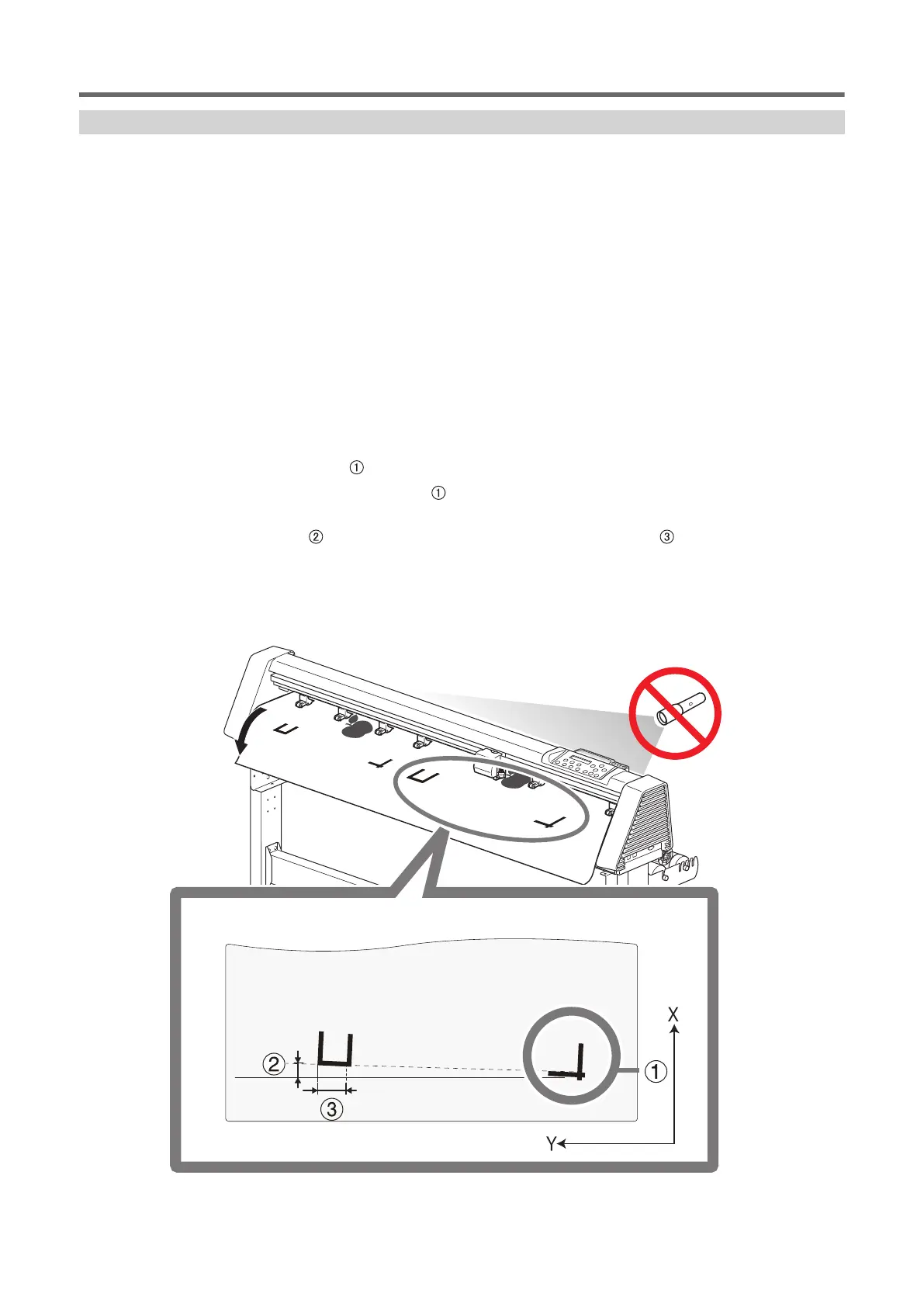

For printing and cutting using the automatic aligning system (AAS), follow the rules below to ensure
correct crop mark reading:
• Avoid using any lighting that may shine horizontally onto the AAS sensor inside the cutting car-
riage.
• Place the origin of crop marks (
) at the front right when facing the machine.
• Ensure that the two crop marks (the origin
and second mark) at the front are not angled when
loading the material.
Allowable range of slant (
): No more than half the length of a crop mark ( )
• Ensure that the first crop mark in the Y direction is not over the grit rollers and place it near the
cutting carriage path.
