Roland Camm-1 GR2-540 User Manual

Normally you load the material with the crop mark origin at the front right of the cutting machine. If
crop marks are set up using the AAS plug-in, the material feed direction is recognized as correct even
when the material is loaded in reverse direction, and the material is cut according to the contour line
of the print.
MEMO
The cutting order is detected by a sensor according to the shape of each crop mark created at the four corners. Auto-
matic detection of material feed direction only supports 180-degree orientations.
Normally, the machine reads the crop marks in the order of 1 (crop mark origin), 2, 3, and finally 4.
12
3 4

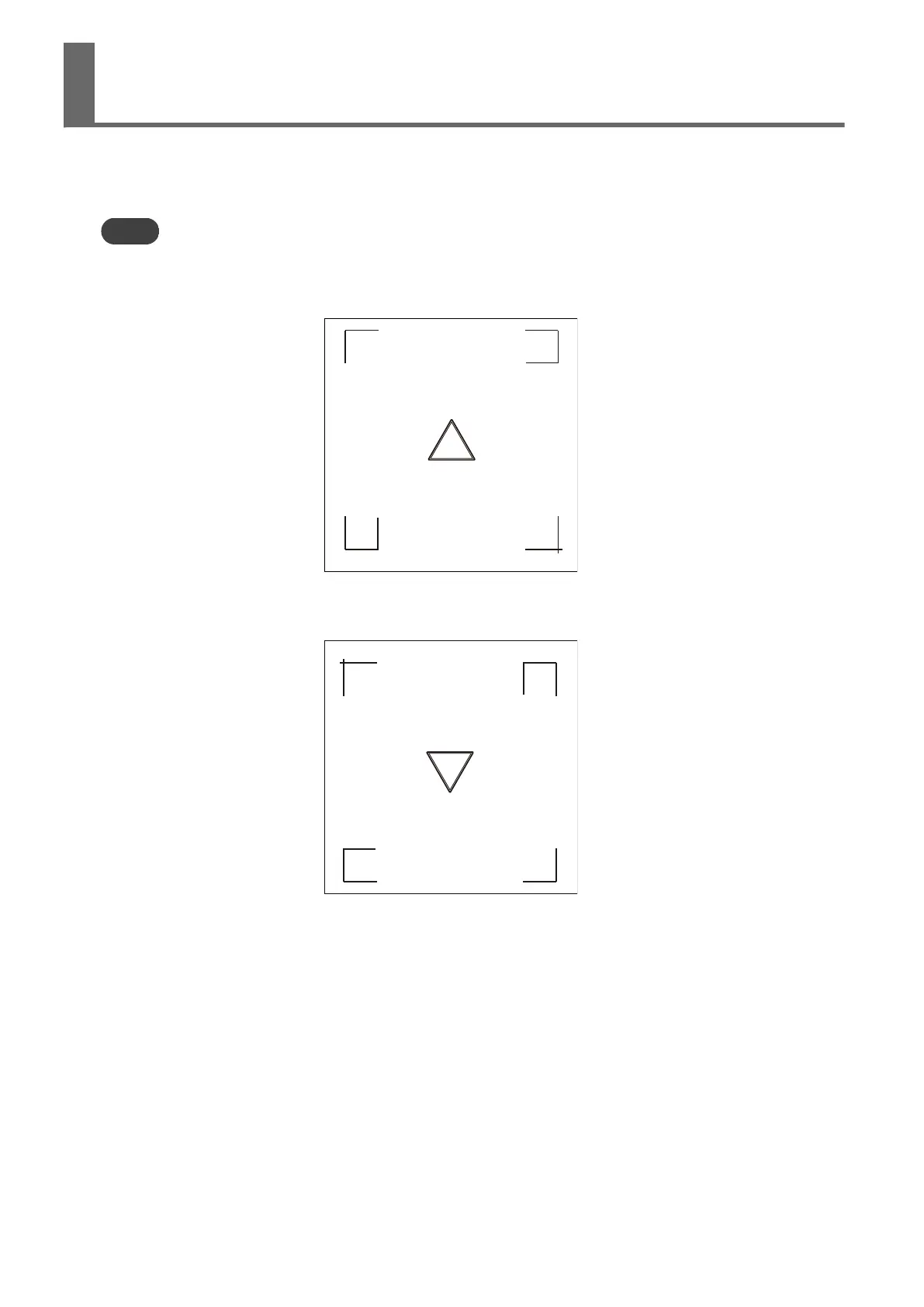

Crop marks on material loaded in reverse direction (rotated) will be read in the order of 3, 4, 1 (crop
mark origin), and 2. The feed direction is detected when the fourth crop mark is read, and the infor-
mation is sent to the driver.
1 2
34
Automatic Detection of Material Feed Direction
62 Basic Printing and Cutting

Roland Camm-1 GR2-540 Specifications

General

Connectivity	USB 2.0, Ethernet
Cutting Method	Media-moving method
Power Supply	AC 100 to 240 V ±10%, 50/60 Hz
Power Requirements	AC 100 to 240 V ±10%, 50/60 Hz
Cutting Width	54 inches
Maximum Cutting Speed	1, 485 mm/s
Software Resolution	0.025 mm/step
Weight	187 lbs
Usable Tools	Cutting blade, plotting pen
Distance Accuracy	±0.2% or 0.3 mm (0.012 in), whichever is greater
Repeatability Accuracy	±0.1 mm
Alignment Accuracy for Print & Cut	±0.04 inches
Operating Temperature	41-95°F (5-35°C)
Operating Humidity	35 to 80% RH (non-condensing)
Weight (with stand)	187 lbs
Blade Type	Roland CAMM-1 series blades
Resolution	0.025 mm/step
