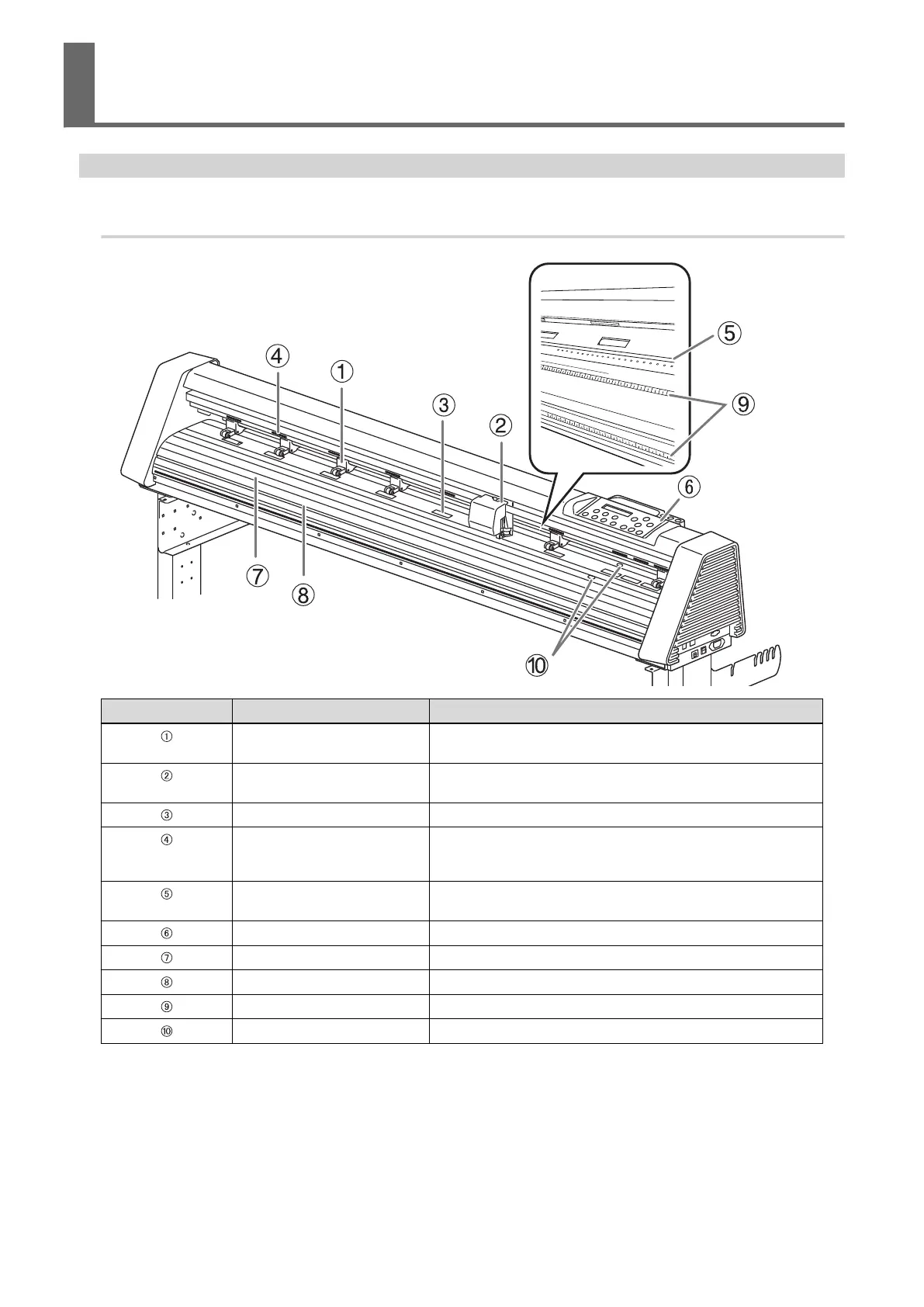

Cutting Machine Main Unit
Front
No. Name Function overview
Pinch rollers When you lower the lever, this part pinches the material. Lift the
lever to release the material.
Cutting carriage Install the blade holder. This part moves to the left and right to cut
the material.
Grit rollers These rollers feed the material to the front and rear.
Grit patterns These indicate the locations of the grit rollers. When loading the
material, be sure to place the pinch rollers within the area indicat-
ed by each of these patterns.
Blade protector This is the path that the blade takes during cutting. It protects the
tip of the blade.
Operation panel The panel containing the buttons used to operate the machine.
Platen This is the path over which the material passes.
Cutting groove The safe blade slides along the groove and separates the material.
Rulers Load the material using the rulers as a guide.
Paper sensors These sensors detect the presence/absence of material.
Part Names and Functions
Basic Information 7
