Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
103
Wiring with the HFD line reactor

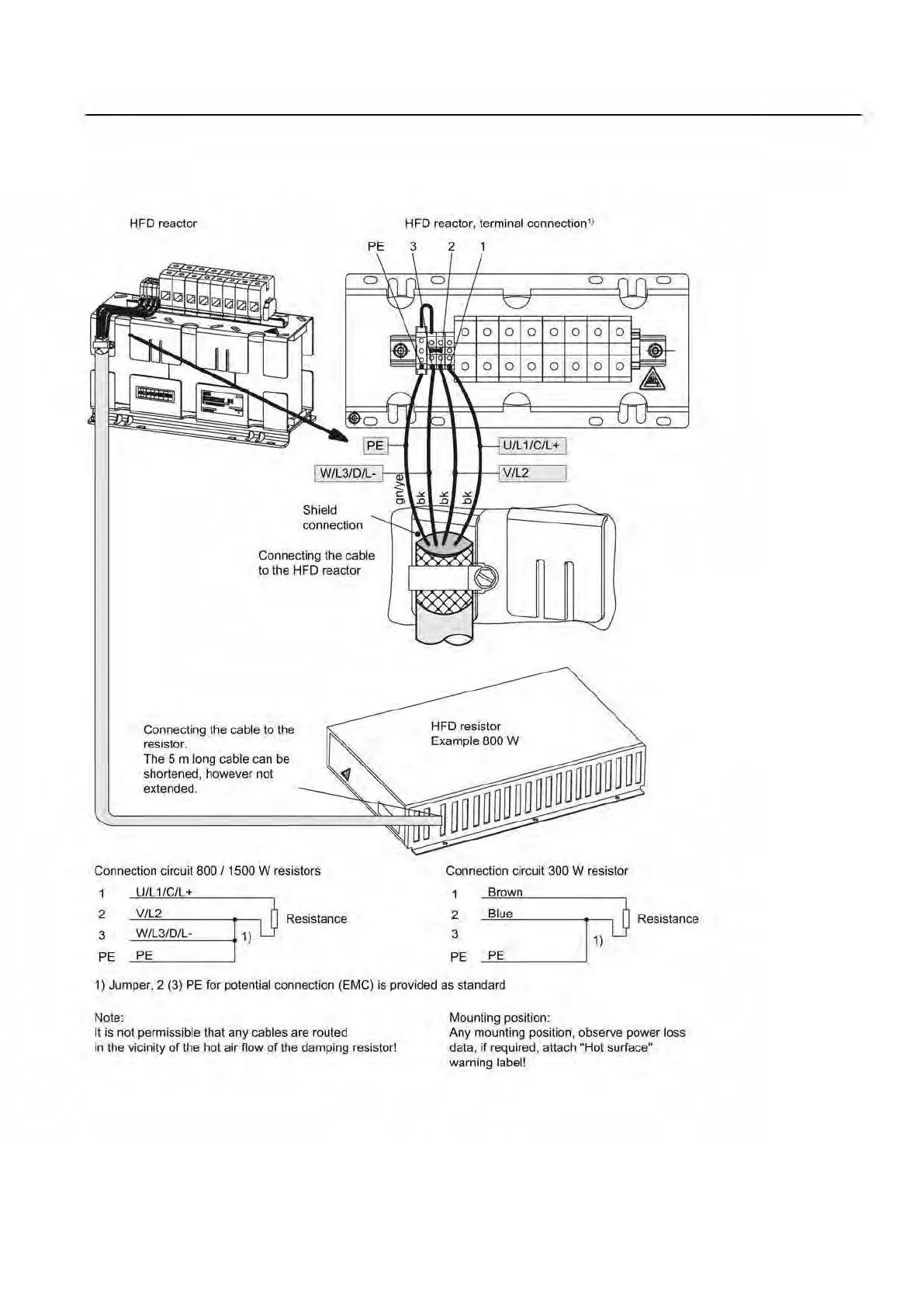

Figure 3-38 Wiring the HFD line reactor with a damping resistor
HFD
reactor
Shield
connection
PE
Connecting the cable
to the
HFO
reactor
Connecting the cable to the
resrstor.
The 5 m long cable can be
shortened, however not
extended.
Connection circuit 800
/1500
W resistors
U/L 1/C/L+
2
V/L2
Resistance
3
W/L3/D/L-
PE
PE
HFD
reactor, terminal connection')
3 2
0
0 0 0
0 0 0
0
Connection circuit 300 W resistor
1
Brown
2
Blue
1
1)
J
Resistance
3
PE
PE
1) Jumper, 2 (3) PE for potential connection (EMC) is provided
as
standard
Note:
It
is not permissi
ble
that any cables are routed
in the vicinity
of
the hot air flow
of
the damping resistor!
Mountlng position:
Any mounting position, observe power loss
data.
If
required, attach "Hot surface"
warning Iabeil
