Line Modules Booksize
4.10 Smart Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
335
4.10.4
Connection example

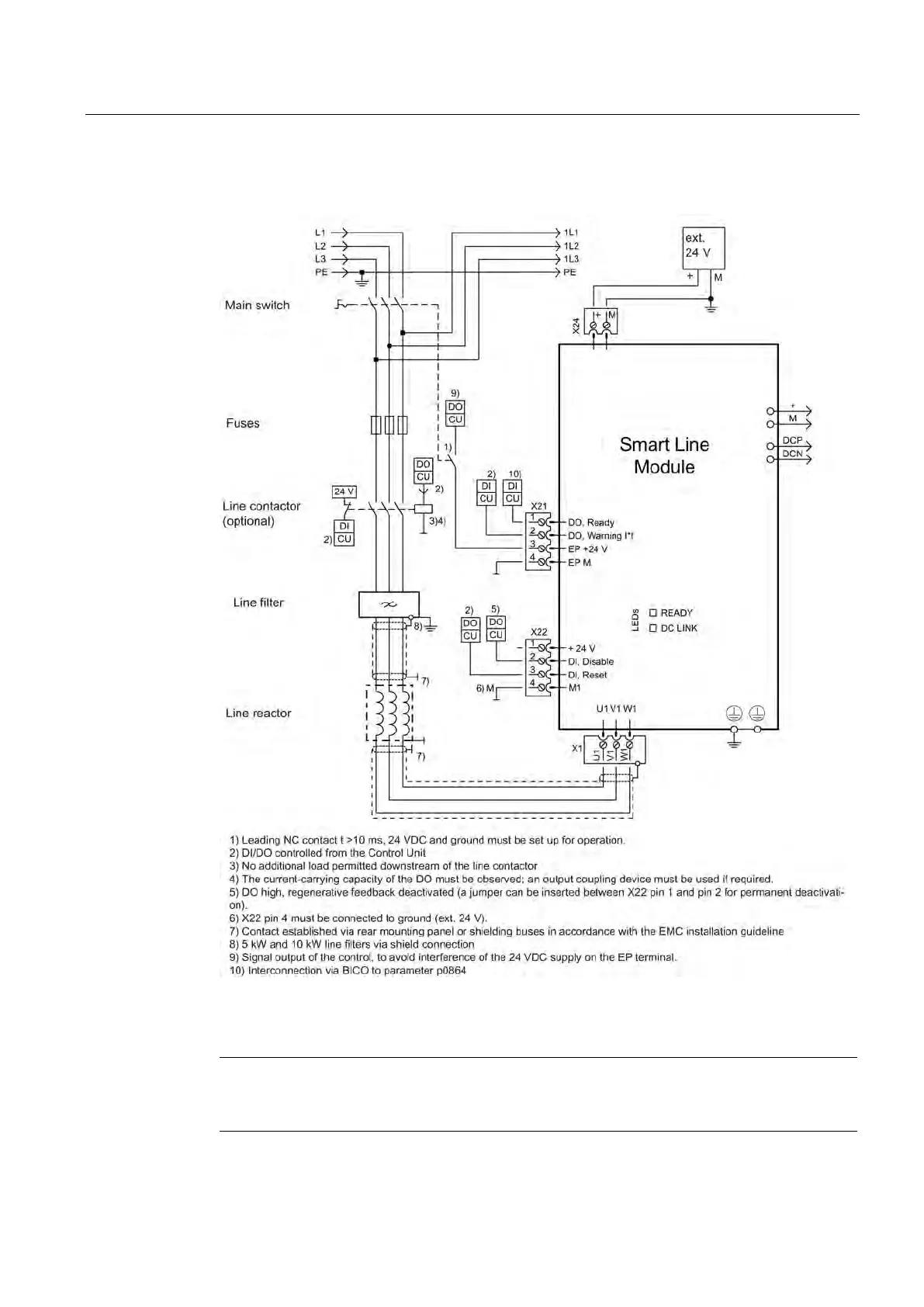

Figure 4-106 Connection example for 5 kW and 10 kW Smart Line Modules
Note
If you are using a VSM10 Voltage Sensing Module, the leading opening contact can be
omitted.
