Line Modules Booksize

4.10 Smart Line Modules with cold plate

Booksize Power Units

Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

337

4.10.6

Dimension drawings

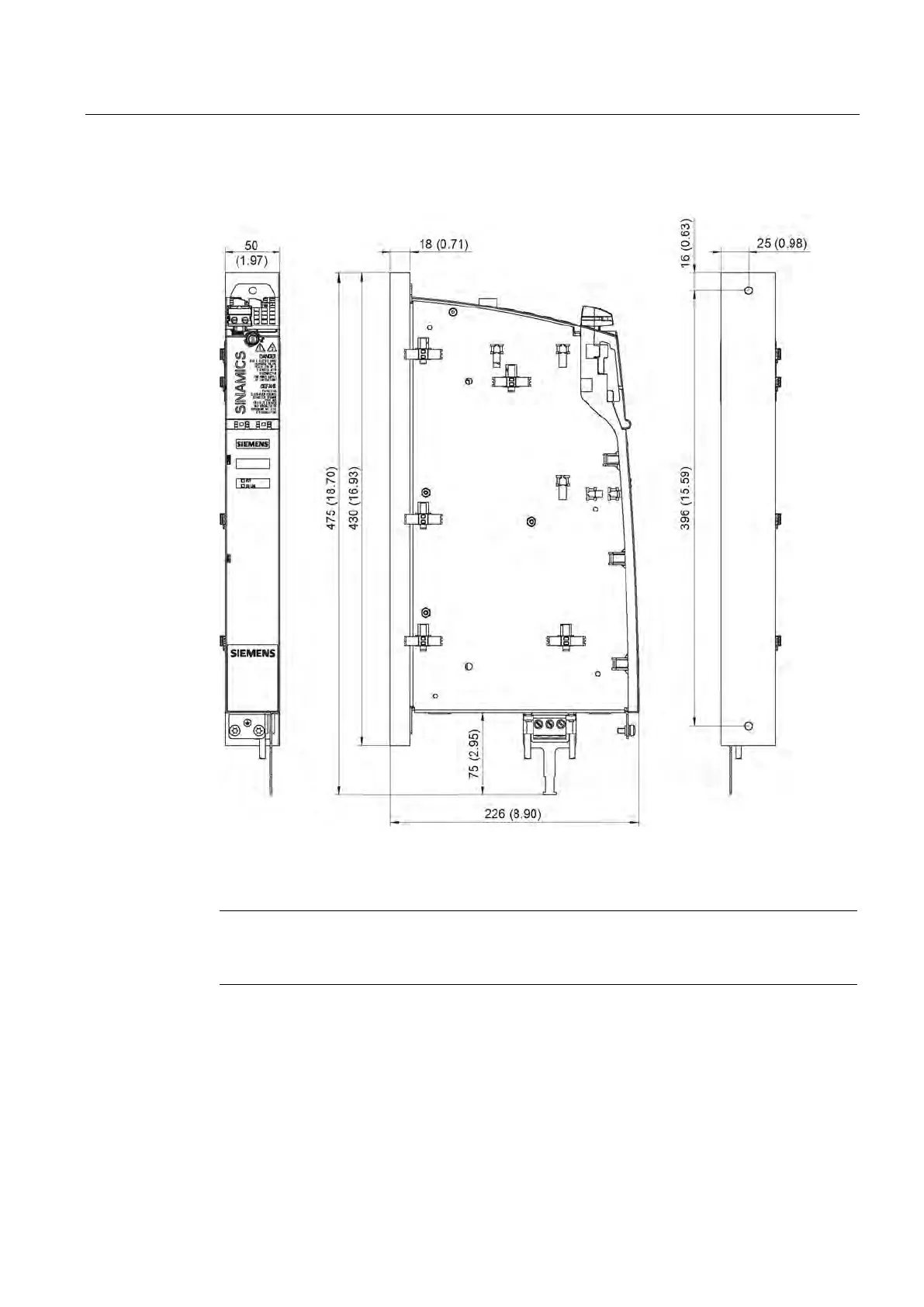

Figure 4-107 Dimension drawing of Smart Line Module with cold plate (5 kW and 10 kW), all

dimensions in mm and (inches)

Note

The shield connecting plate is integrated in the power supply connector of the 50

mm Smart

Line Modules.
