Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
63
1)
Maximum total cable length = Σ motor cables, mains supply conductor from line filter to
1)
Line Module
Interface description
Overview

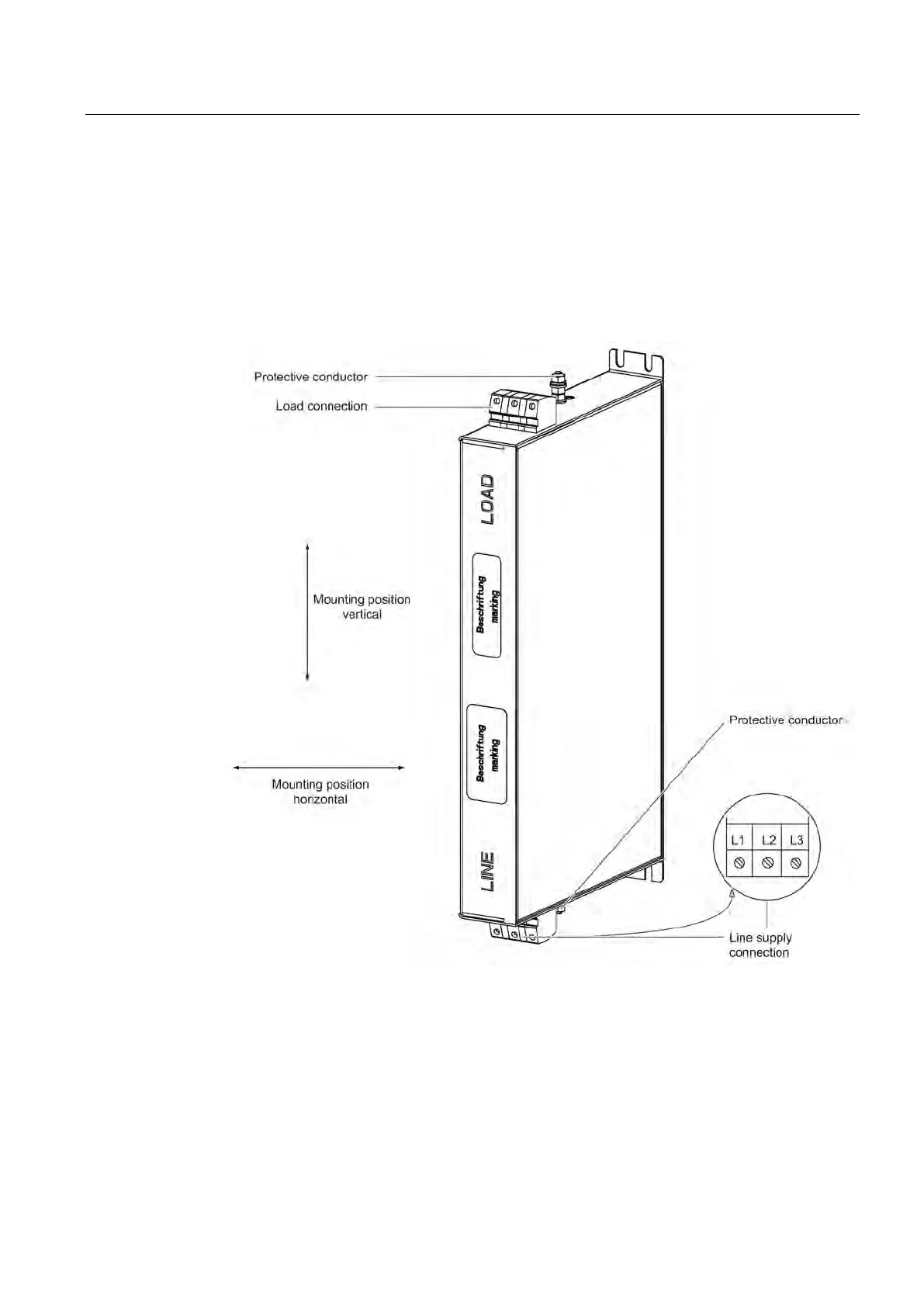

Figure 3-5 Interface overview, Basic Line Filter for Active Line Modules (example: 16 kW)
Either the upper or lower PE screw can be used for the connection. One of the screws
remains unused. "Looping-through" the protective connection to the line reactor is not
permissible.
