Siemens 6SL3120-2TE21-0AA3 User Manual

Line Modules Booksize
4.10 Smart Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
331
4.10.3.2
X1 line connection

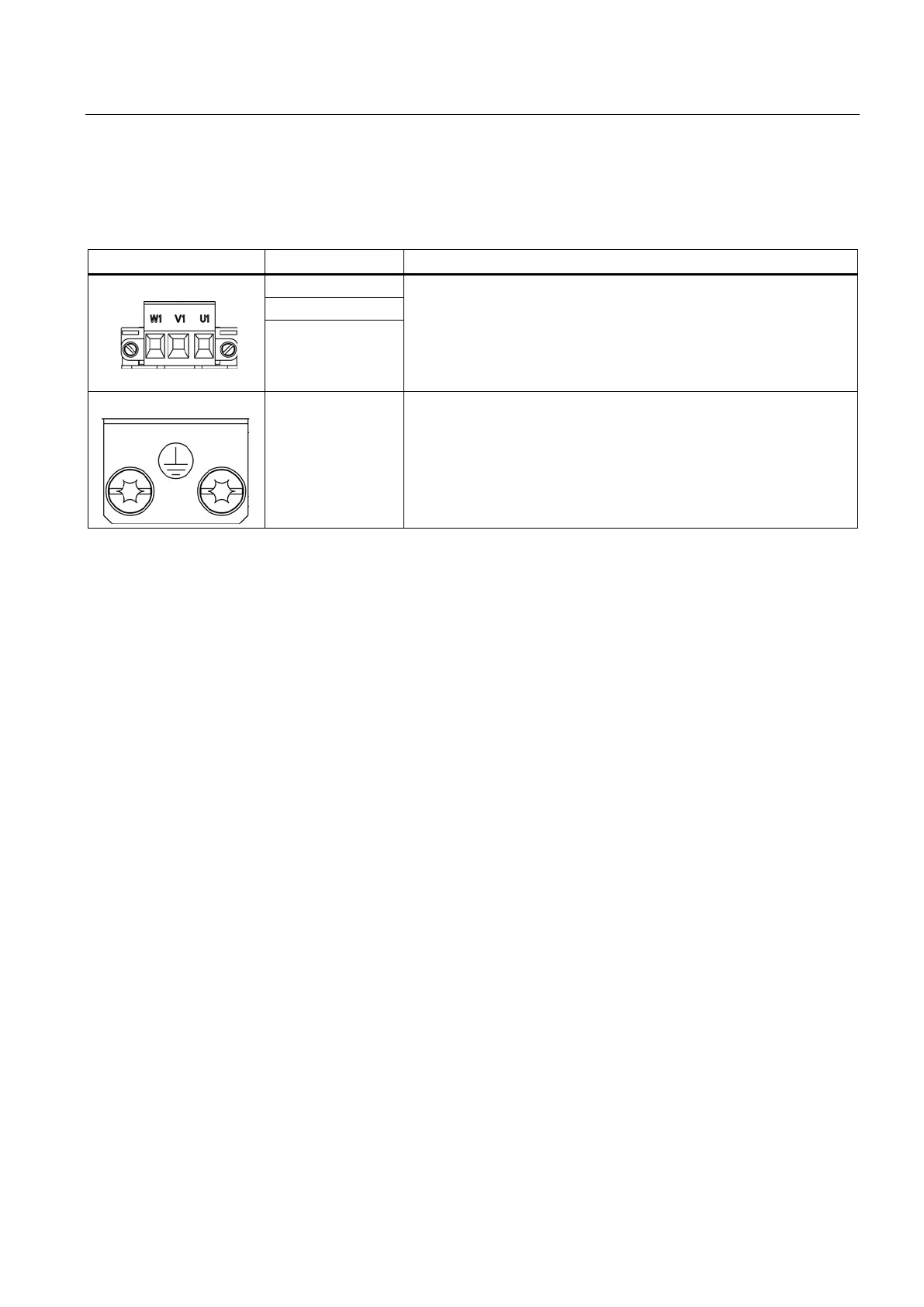

Table 4- 86 X1 line connection
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Max. connectable cross-section: 6 mm
2
Type: Screw terminal 5 (Page 755)
Max. cross-section that can be connected: 6 mm
2
Tightening torque: 1.2 … 1.5 Nm
V1
W1
PE connection Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation
