Siemens 6SL3120-2TE21-0AA3 User Manual

Motor Modules Booksize
6.4 Motor Modules with cold plate
Booksize Power Units
442 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
6.4.2.2
Motor and brake connection

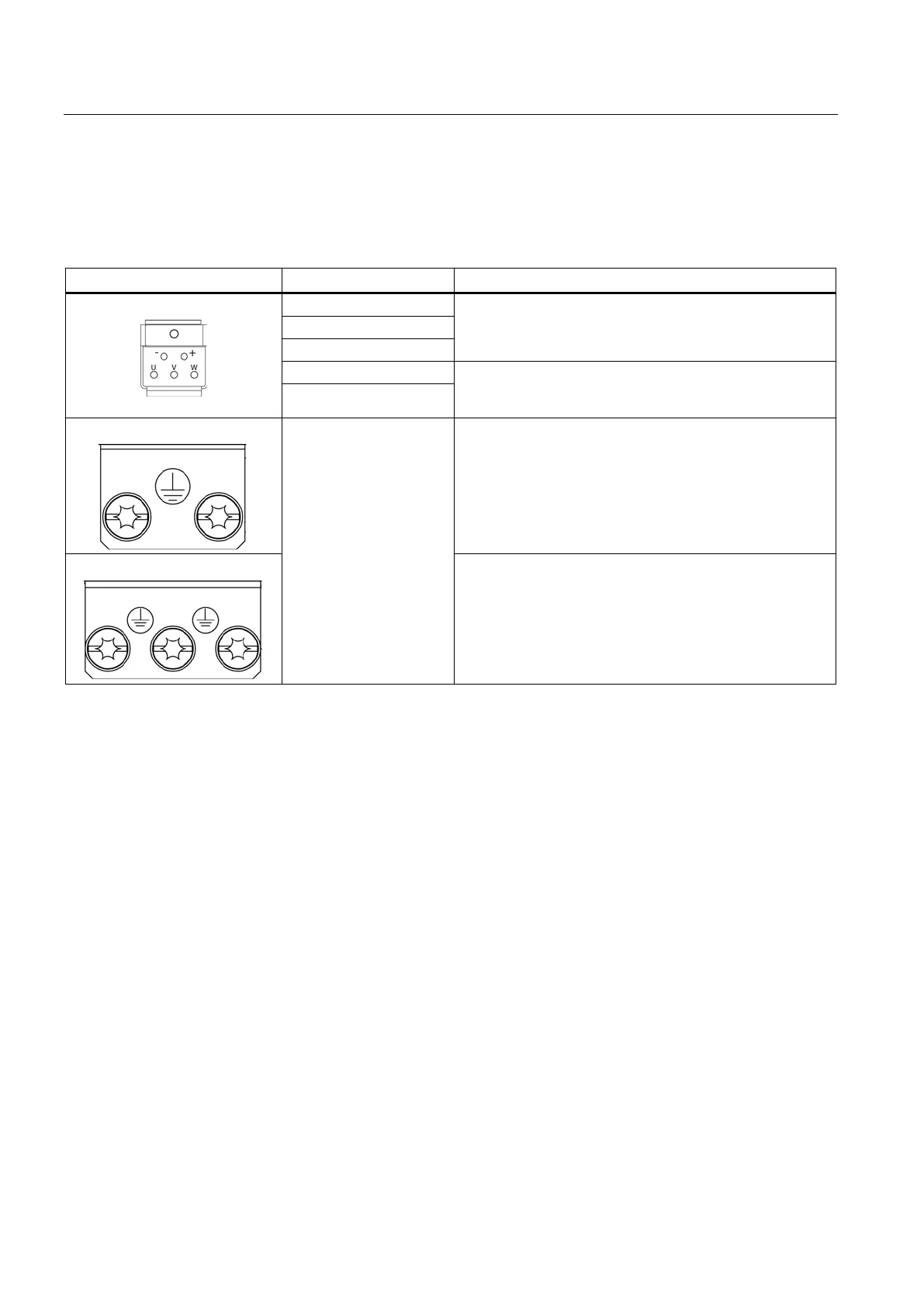

Table 6- 32 X1/X2 motor and brake connection for Single Motor Modules 3 A to 30 A and Double Motor Modules 3 A to
18 A
Terminal
Technical data
U (U2)
Motor connection
V (V2)
W (W2)
+ (BR+)
Brake connection
Max. load current: 2 A
Minimum load current: 0.1 A
- (BR-)
PE connection
Single Motor Modules 3 ... 30 A:
Threaded hole M5 / 3 Nm
1)
Double Motor Modules 3 ... 18 A:
Threaded hole M5 / 3 Nm
1)
1)
For ring cable lugs without insulation
