Siemens 6SL3120-2TE21-0AA3 User Manual

Line Modules Booksize Compact
5.1 Smart Line Modules Booksize Compact
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
353
5.1.3.4
X24 24 V terminal adapter

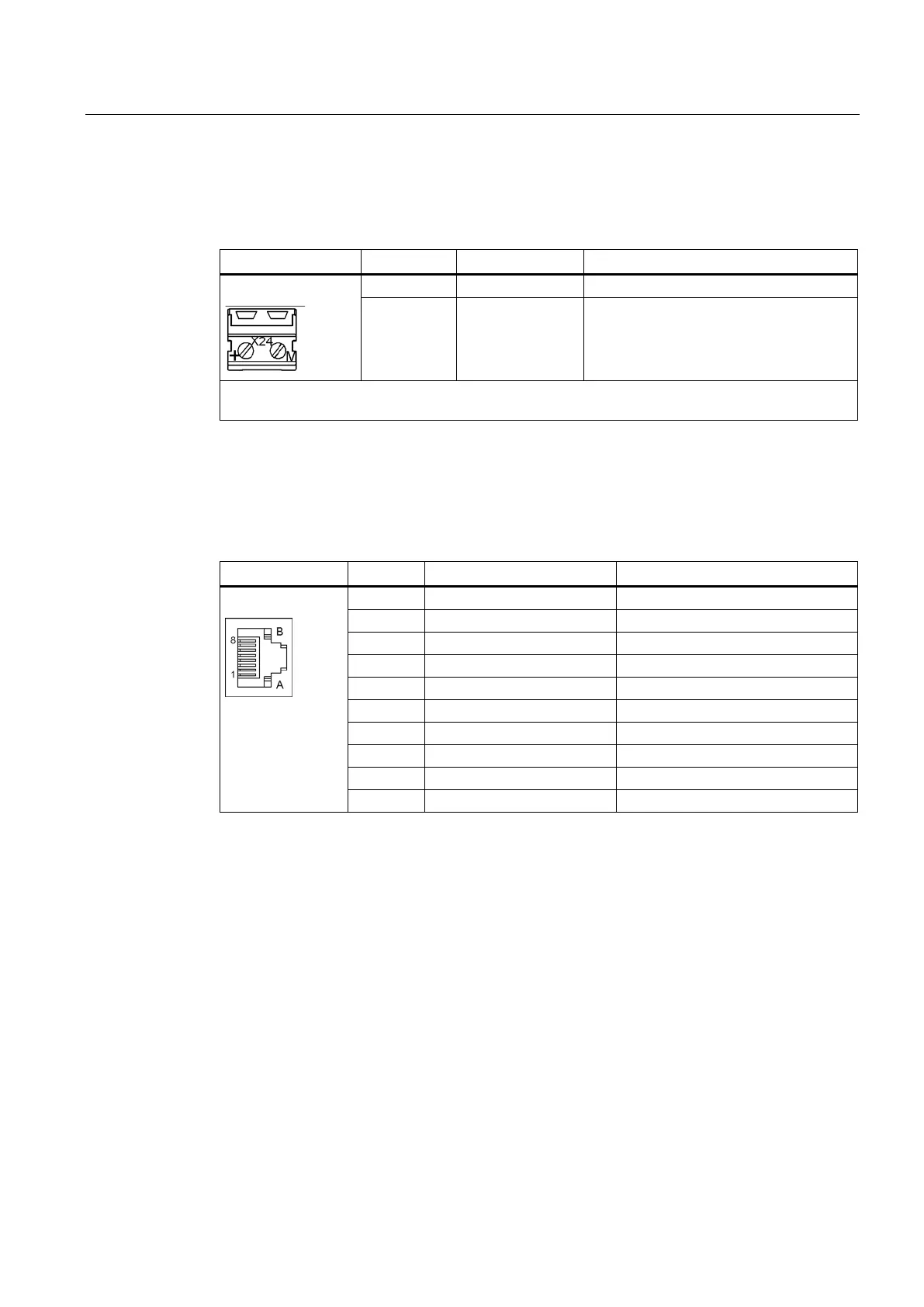

Table 5- 3 X24: 24 V terminal adapter
Terminal
Designation
Technical data
+
24 V power supply
24 V DC supply voltage
M Ground Electronics ground
Type: Screw terminal 5 (Page 755)
Max. cross-section that can be connected: 6 mm
2
The 24 V terminal adapter is included in the scope of supply.
5.1.3.5
X200-X202 DRIVE-CLiQ interfaces
Table 5- 4 X200-X202: DRIVE-CLiQ interfaces
PIN
Signal name
Technical data
1
TXP
Transmit data +
2 TXN Transmit data -
3
RXP
Receive data +
4 Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+(24 V)
24 V power supply
B
M (0 V)
Electronics ground
The blanking covers for the DRIVE
-CLiQ interfaces are included in the scope of delivery.
Blanking cover (50 pcs.) Order number: 6SL3066-4CA00-0AA0
