Line Modules Booksize
4.2 Active Line Modules with internal air cooling
Booksize Power Units
162 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
4.2.3

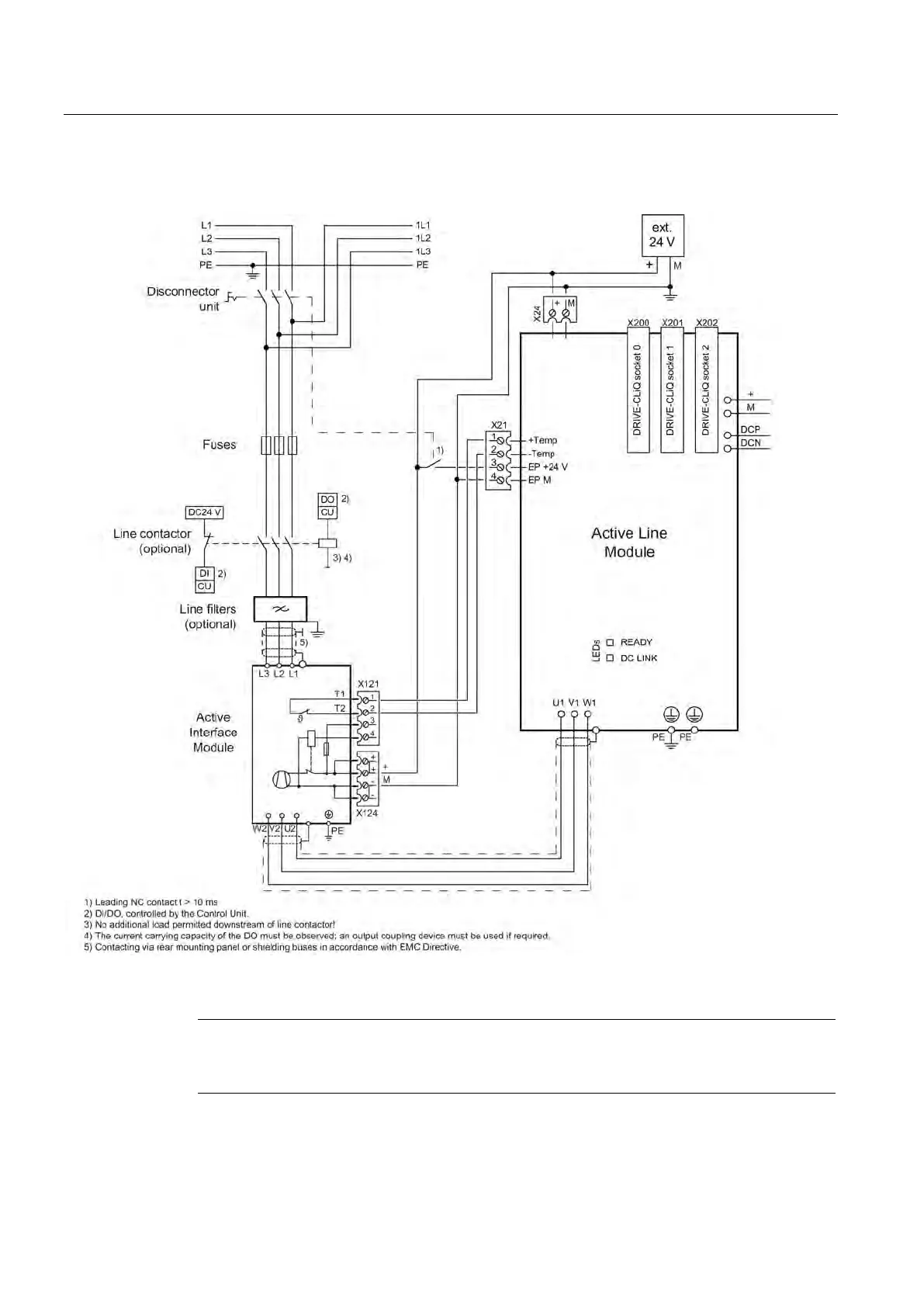

Connection example
Figure 4-2 Example connection of Active Line Module
Note
If you are using a VSM10 Voltage Sensing Module, the leading opening contact can be
omitted.
