Line connection and line-side power components
3.9 Active Interface Modules internal air cooling
Booksize Power Units
134 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

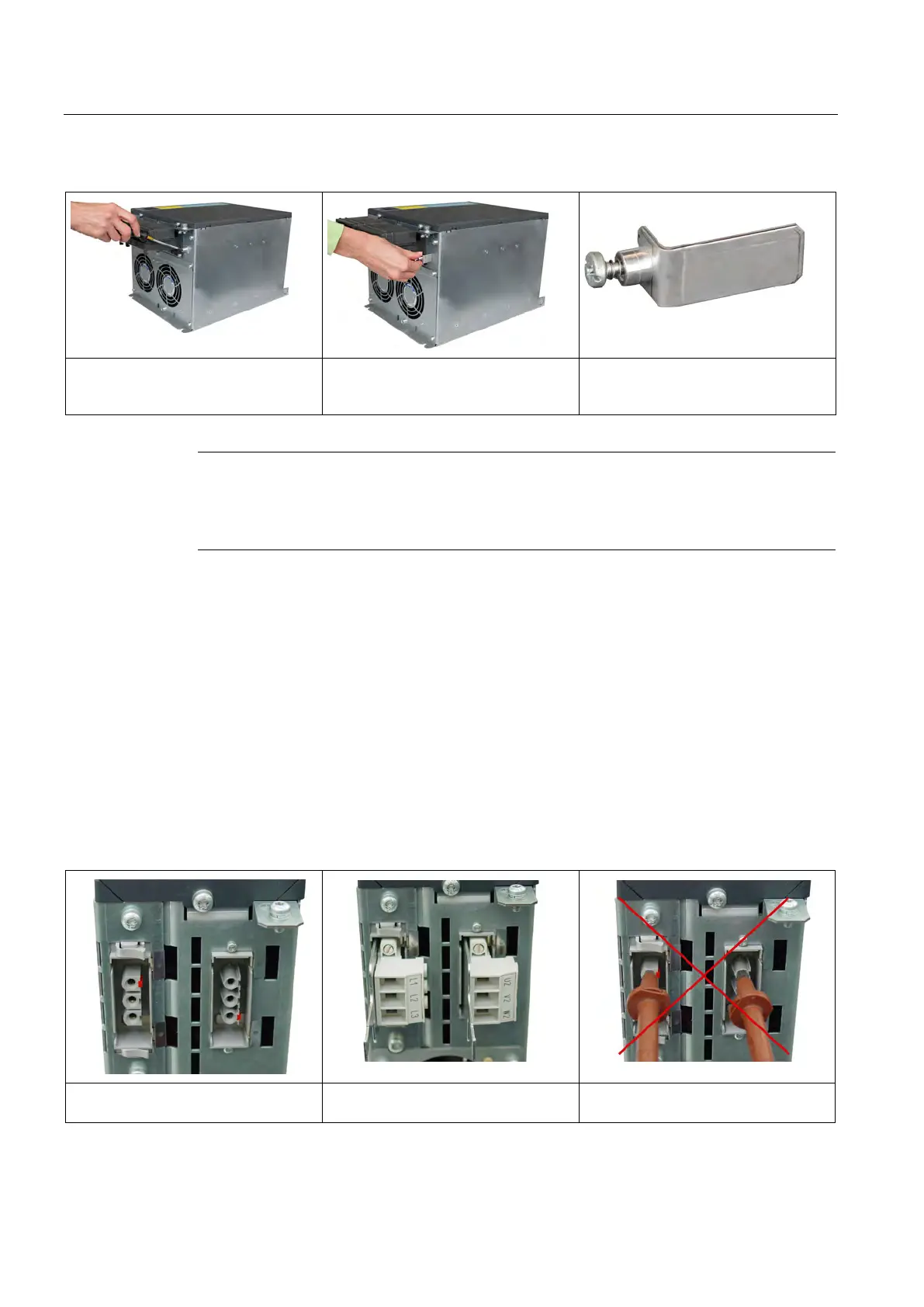

Remove the connection bracket to the
noise suppression capacitor using a
Withdraw the connection bracket. Connection bracket for the
interference-suppression capacitor
Note
Installing the connection bracket for the interference-suppression capacitor
For operation in other line supplies, the connection bracket must be reinstalled and fixed with
a tightening torque of 1.8 Nm.
Electrical tests
Tests on the 16 kW Active Interface Module
Electrical tests on the 16 kW Active Interface Module may only be performed via the
associated terminal connectors. The socket contacts will expand if unsuitable testing
equipment is used (e.g. 4 mm safety plugs inserted directly into device sockets).
Using such equipment will result in contact problems involving the Active Interface Module's
power connections.
Table 3- 26 Electrical test on the 16 kW Active Interface Module
Active Interface Module 16 kW
: Measurement with original
: Measurement via the device
