Line connection and line-side power components
3.11 Line connection variants
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
137
Line connection variants
3.11.1
Ways of connecting the line supply
A distinction is made between the following line connection versions:
● Line connection components to be directly connected to the line supply
● Operating line connection components via an autotransformer
● Operating line connection components via an isolating transformer

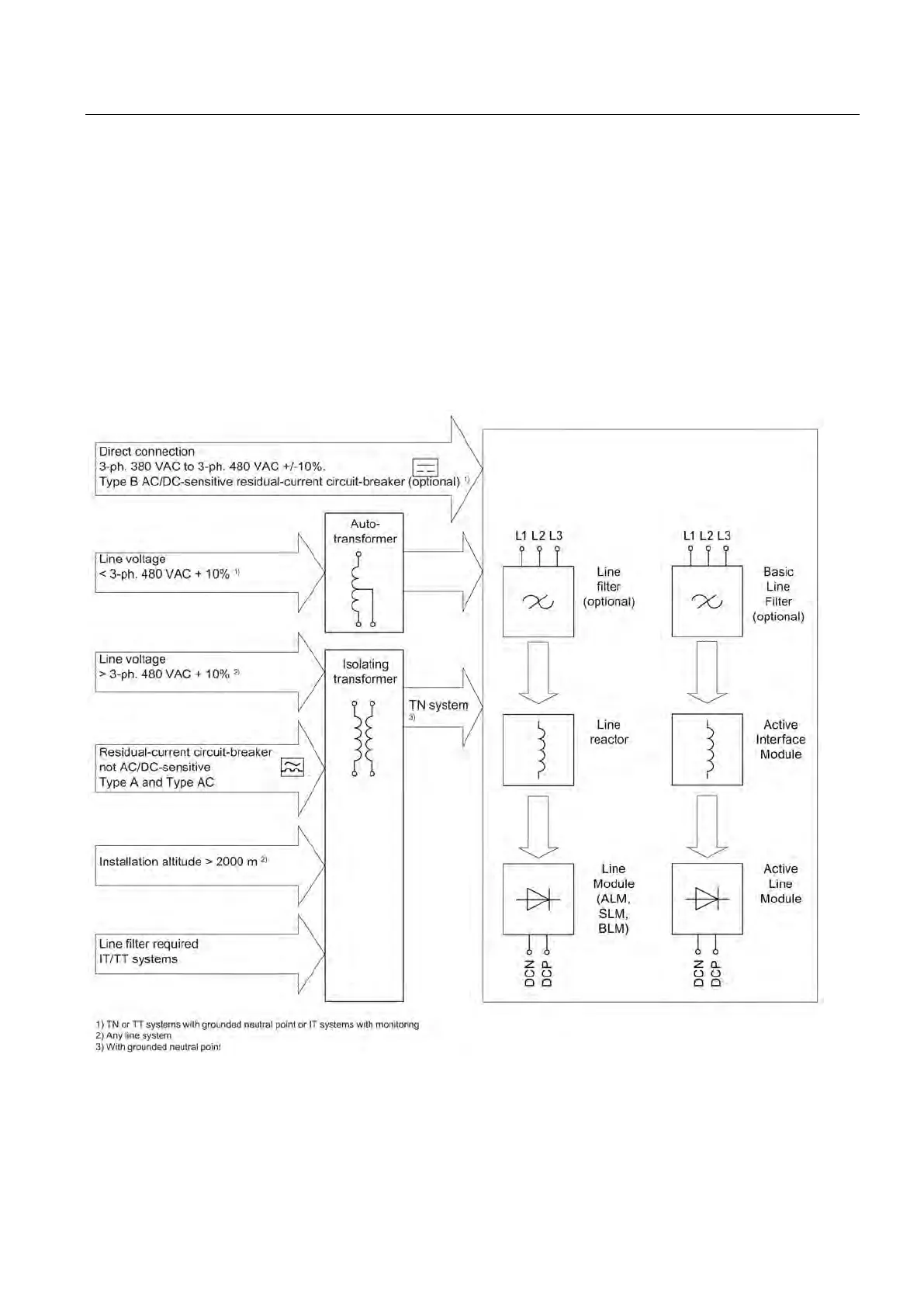

Figure 3-64 Overview of line connection versions
