Line Modules Booksize
4.2 Active Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
159
Active Line Modules 80 kW and 120 kW are equipped with an interface for connecting the
sub-chassis fan. The interface is located on the underside of the Line Module.

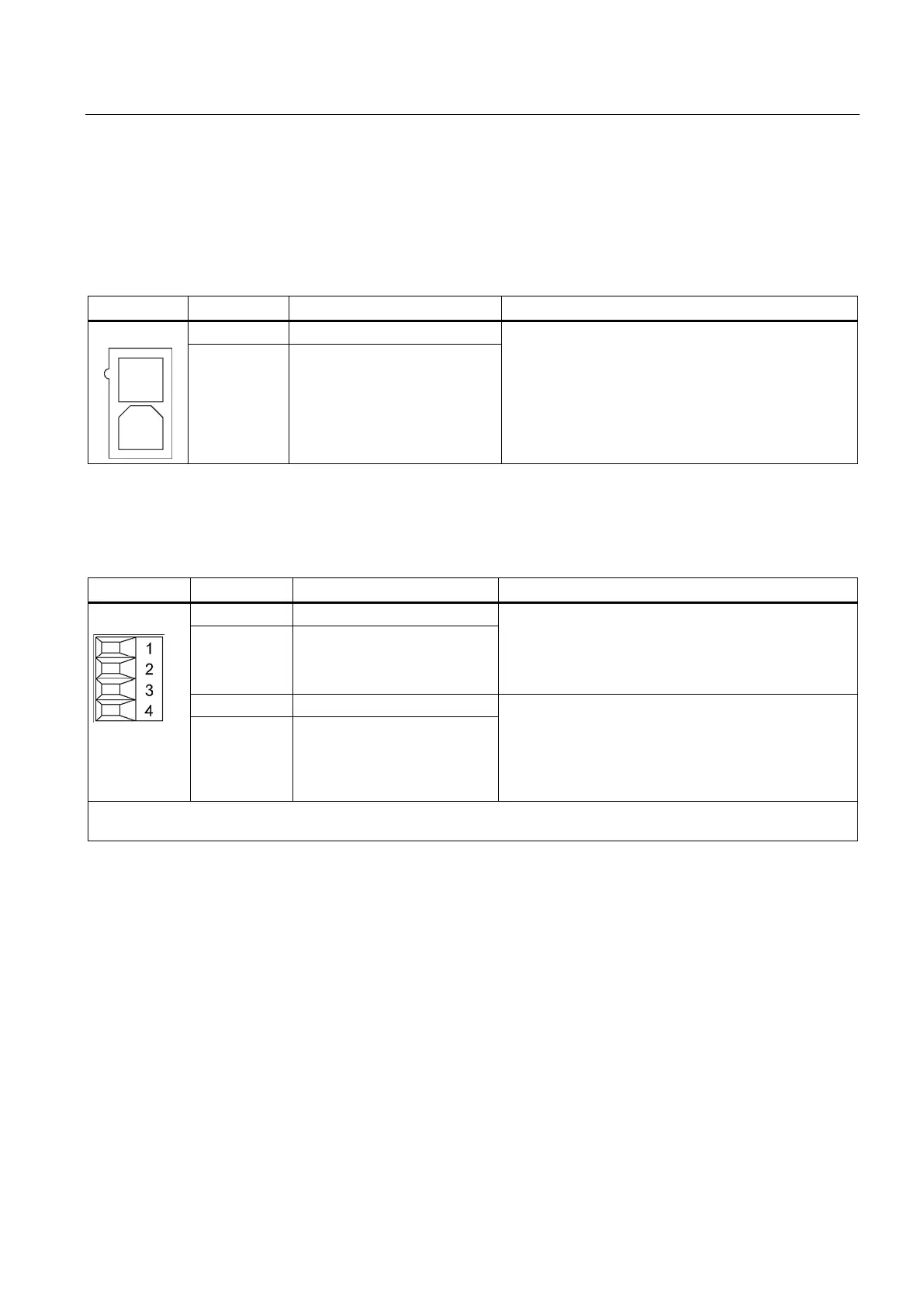

Table 4- 3 X12 fan connection
Voltage 48 V DC for the supplied fan
2 Fan connection -
Table 4- 4 X21 EP terminal / temperature sensor
1 + Temp Temperature sensors
1)
: KTY 84–
1C130
2)
/PTC
2)
/bimetallic switch with NC contact
If an Active Interface Module is used, the temperature
input must be connected to the Active Interface Module
sensor (bimetallic switch with NC contact).
2 - Temp
Voltage: 24 V DC
Current consumption: 10 mA
Isolated input
Signal propagation times:
L → H: 100 μs
4 EP M (Enable Pulses)
Type: Screw terminal 1 (Page 755)
Max. cross-section that can be connected: 1.5 mm
2
The temperature sensor type and the temperature output can be selected by parameter (see the SINAMICS S120/S150
List Manual).
2)
Temperatures are detected but not evaluated in the Active Line Module.
Terminals X21.1 and X21.2
When using an Active Interface Module, the temperature output of the Active Interface
Module must be connected at terminals X21.1 and X21.2.
