Line connection and line-side power components
3.9 Active Interface Modules internal air cooling
Booksize Power Units
130 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
The Active Interface Modules are designed for installation in the control cabinet. The Active
Interface Modules should if possible be mounted directly next to the Active Line Module.
M6 screws, Torx T30 (not hexagon-head screws)

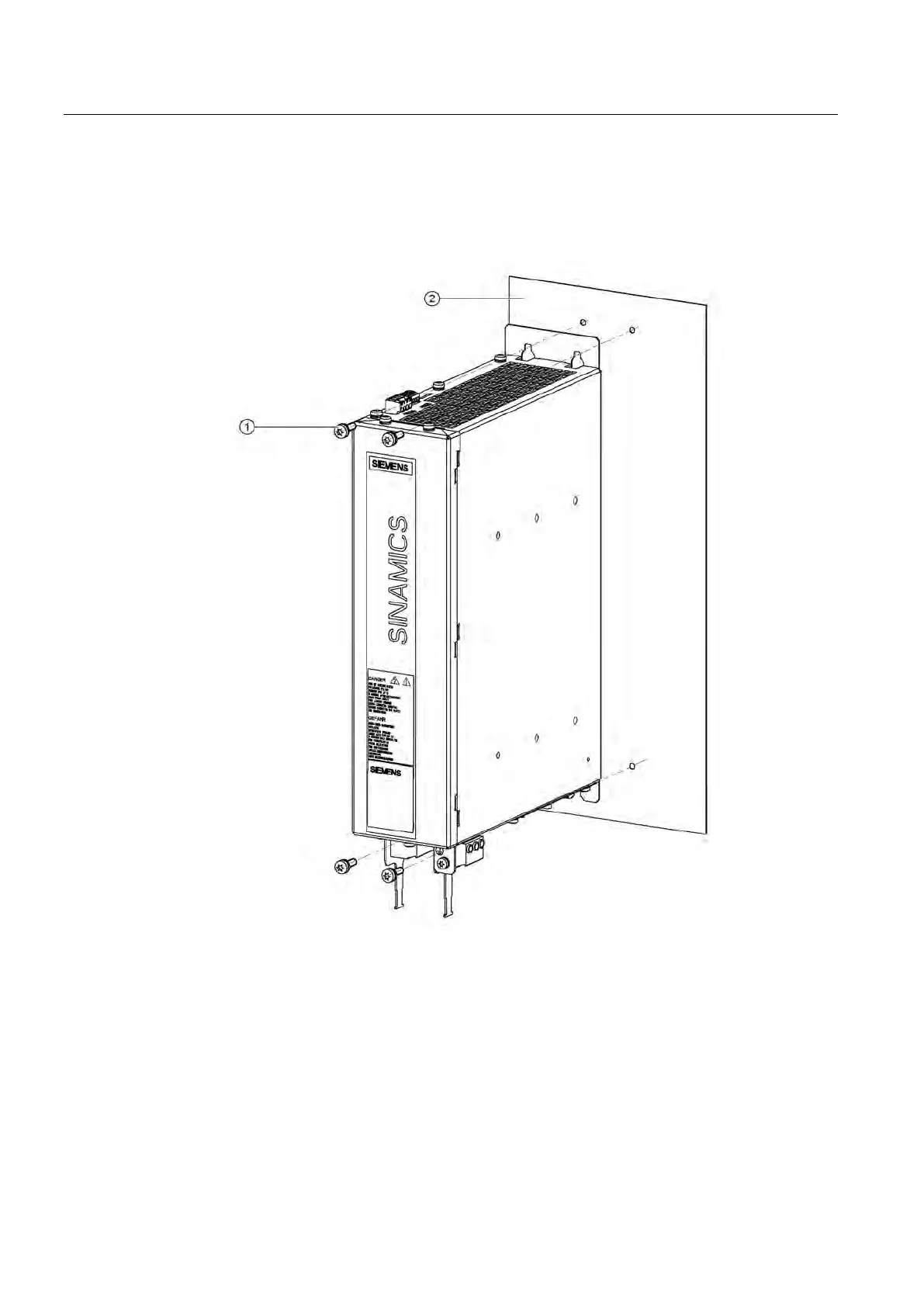

Figure 3-60 Installation of 16 kW Active Interface Module
