Line Modules Booksize
4.5 Active Line Modules Liquid Cooled
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
225
4.5.6
Installation

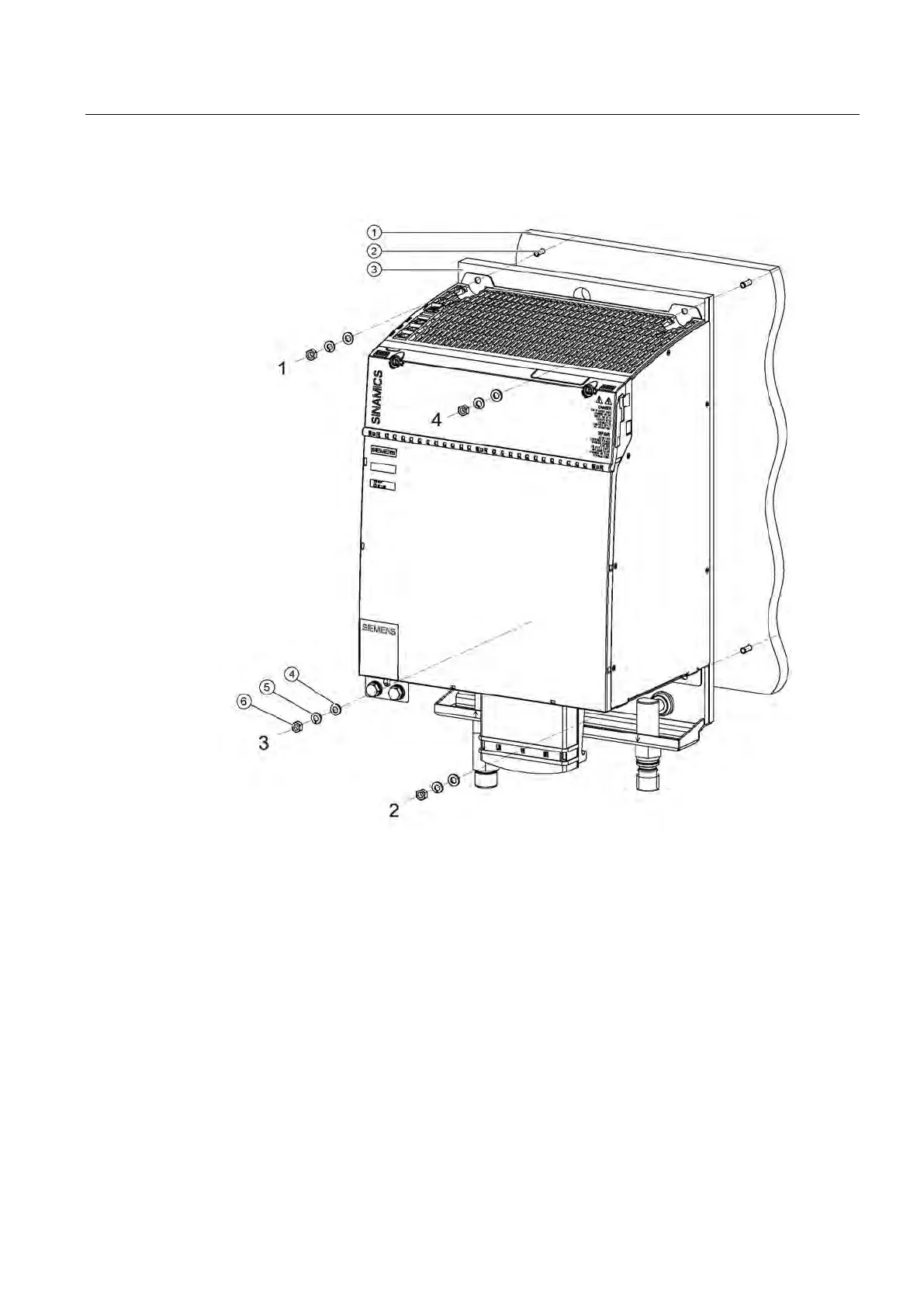

①
Mounting surface
②
M6 studs
③
Heat sink
④
Washer
⑤
Spring washer
⑥
M6 nut
Figure 4-43 Mounting an Active Line Module Liquid Cooled
Tightening torques
:
● Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 10 Nm
