Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
435

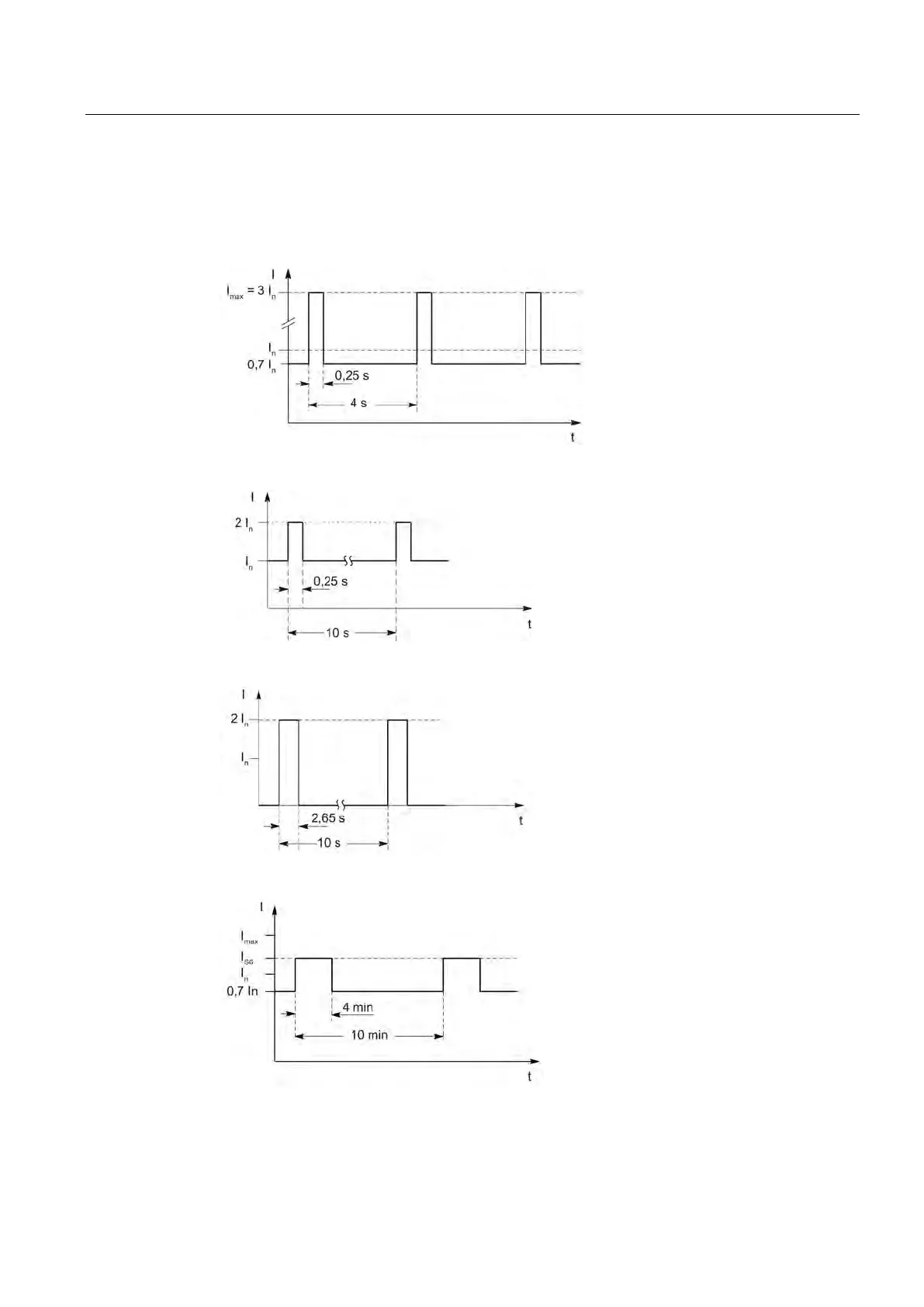

Characteristics for Motor Modules Booksize with 300% overload
Rated duty cycles Motor Modules Booksize with 300% overload
Figure 6-60 Peak current duty cycle with initial load (300% overload)
Figure 6-61 Duty cycle with initial load
Figure 6-62 Duty cycle without initial load
Figure 6-63 S6 duty cycle with initial load for a duty cycle duration of 600 s
