Line Modules Booksize
4.3 Active Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
187
4.3.6
Mounting
①
Mounting plate with openings for mounting
②
M6 studs
③
M6 nut
④
Spring washer
⑤
Washer
⑥
Fan assembly

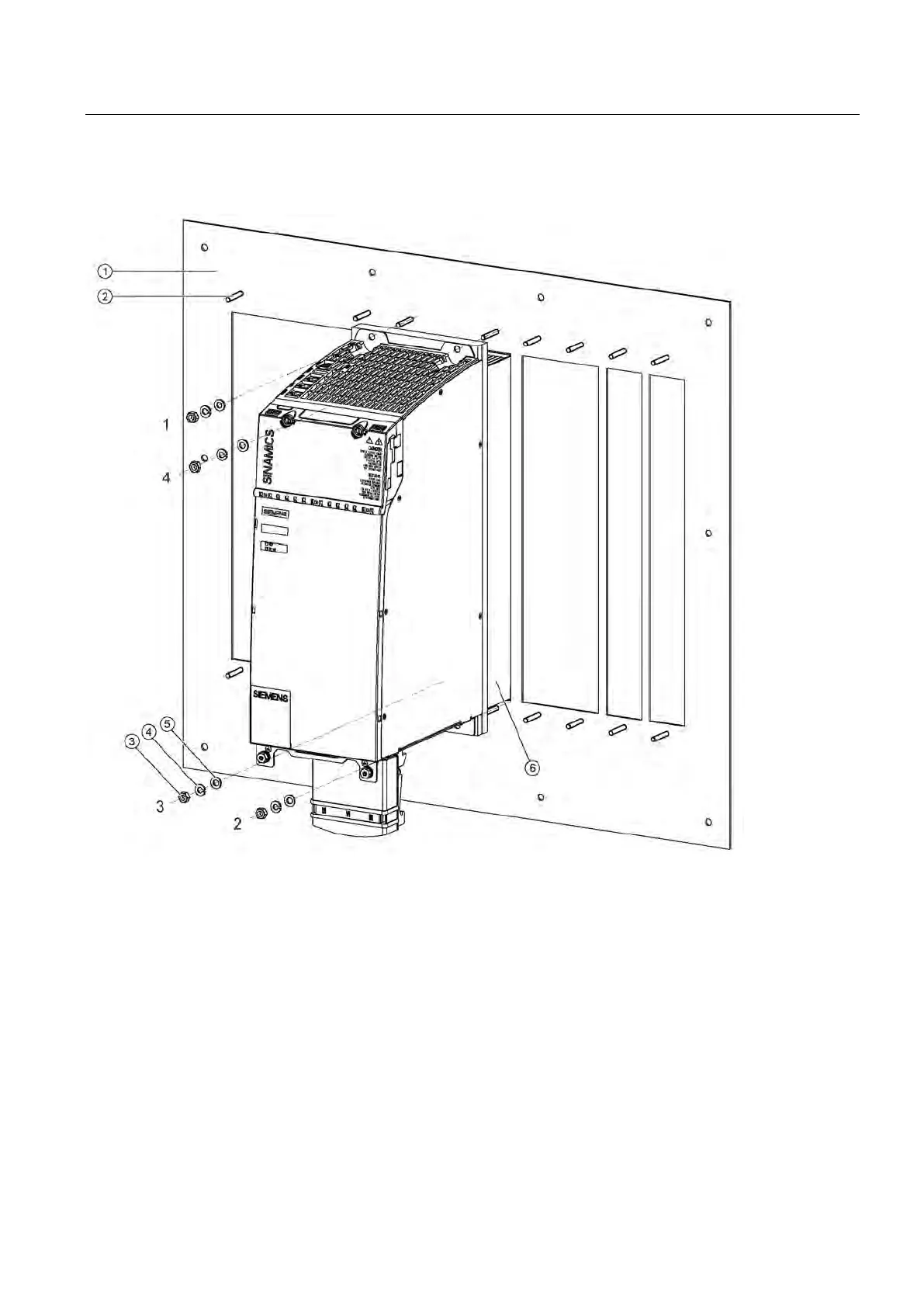

Figure 4-19 Mounting an Active Line Module with external air cooling (example: 36 kW)
Tightening torques
:
● Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 6 Nm
