System overview
2.4 SINAMICS S120 components
Booksize Power Units
40 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Line Modules generate a DC voltage from the connected rated voltage that is used to power
the Motor Modules.
All Basic Line Modules and Active Line Modules as well as the 16 kW, 36 kW, and 55 kW
Smart Line Modules are equipped with DRIVE-CLiQ interfaces for communicating with the
Control Unit. The 5 kW and 10 kW Smart Line Modules must be connected with the Control
Unit via terminals.

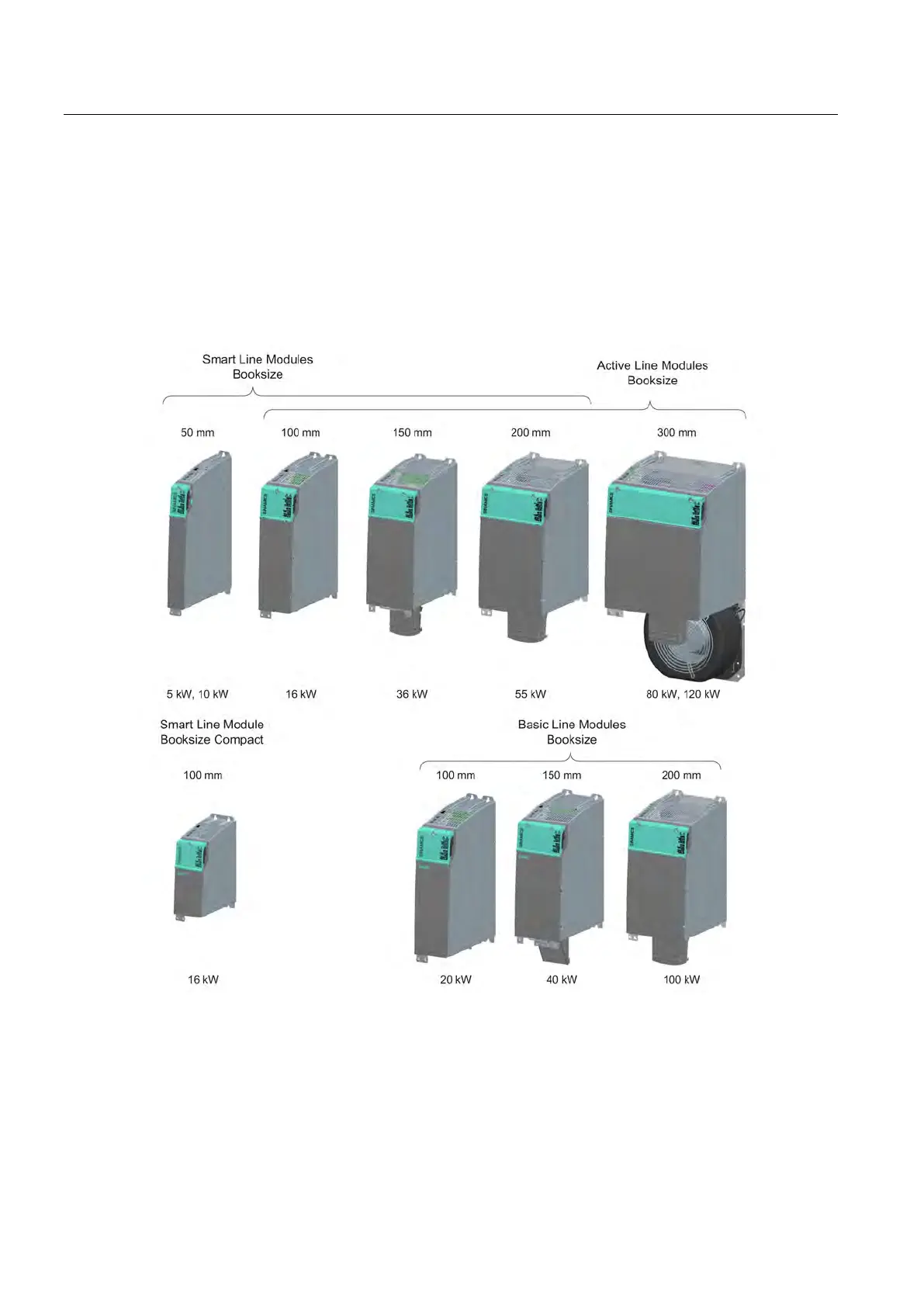

Figure 2-5 Overview of Line Modules
