Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
77
Interface description
Overview

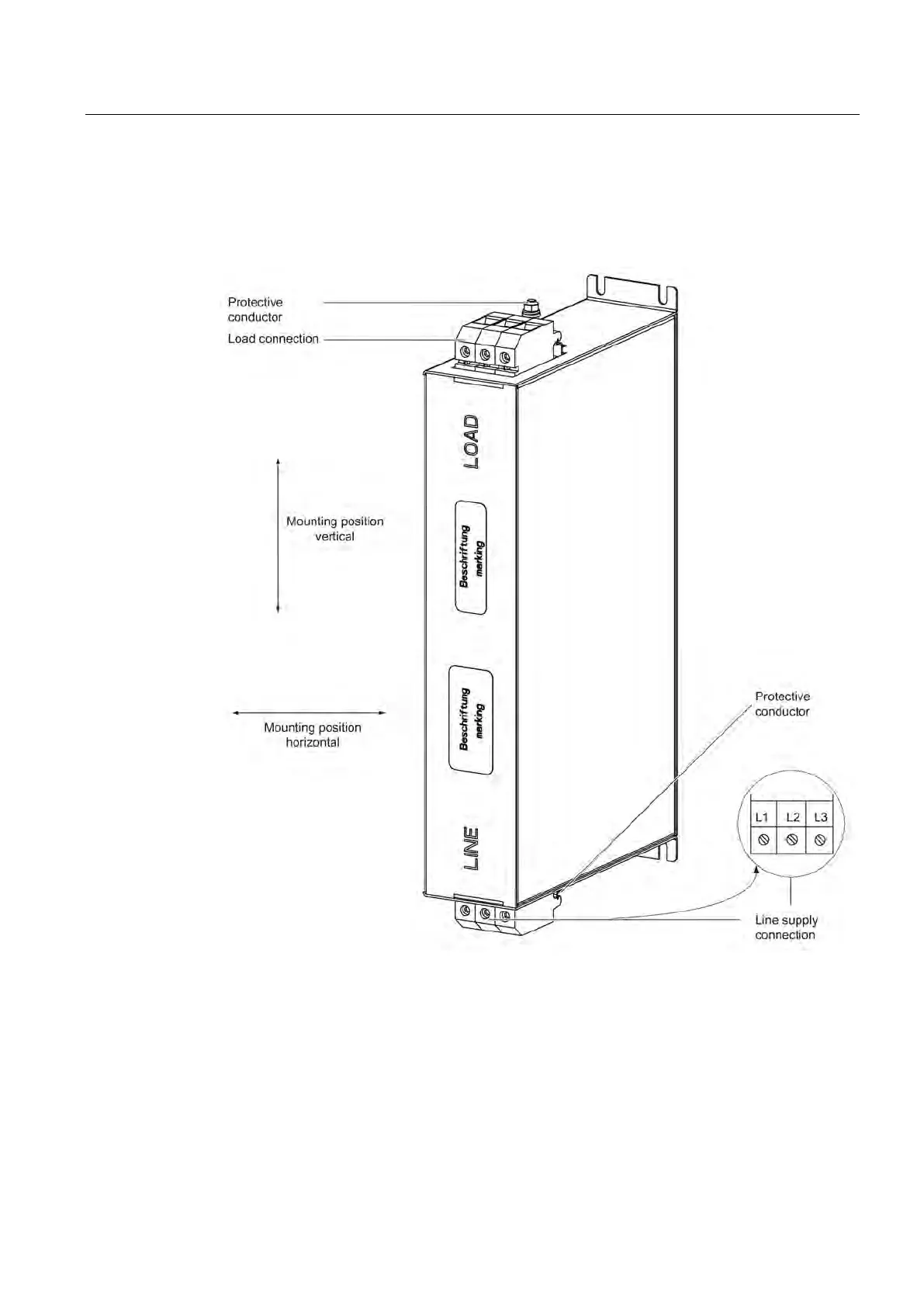

Figure 3-16 Interface overview, Basic Line Filter for Basic Line Modules (example: 40 kW)
Either the upper or lower PE screw can be used for the connection. One of the screws
remains unused. "Looping-through" the protective connection to the line reactor is not
permissible.
