Line Modules Booksize

4.4 Active Line Modules with cold plate

Booksize Power Units

Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

207

4.4.5

Dimension drawings

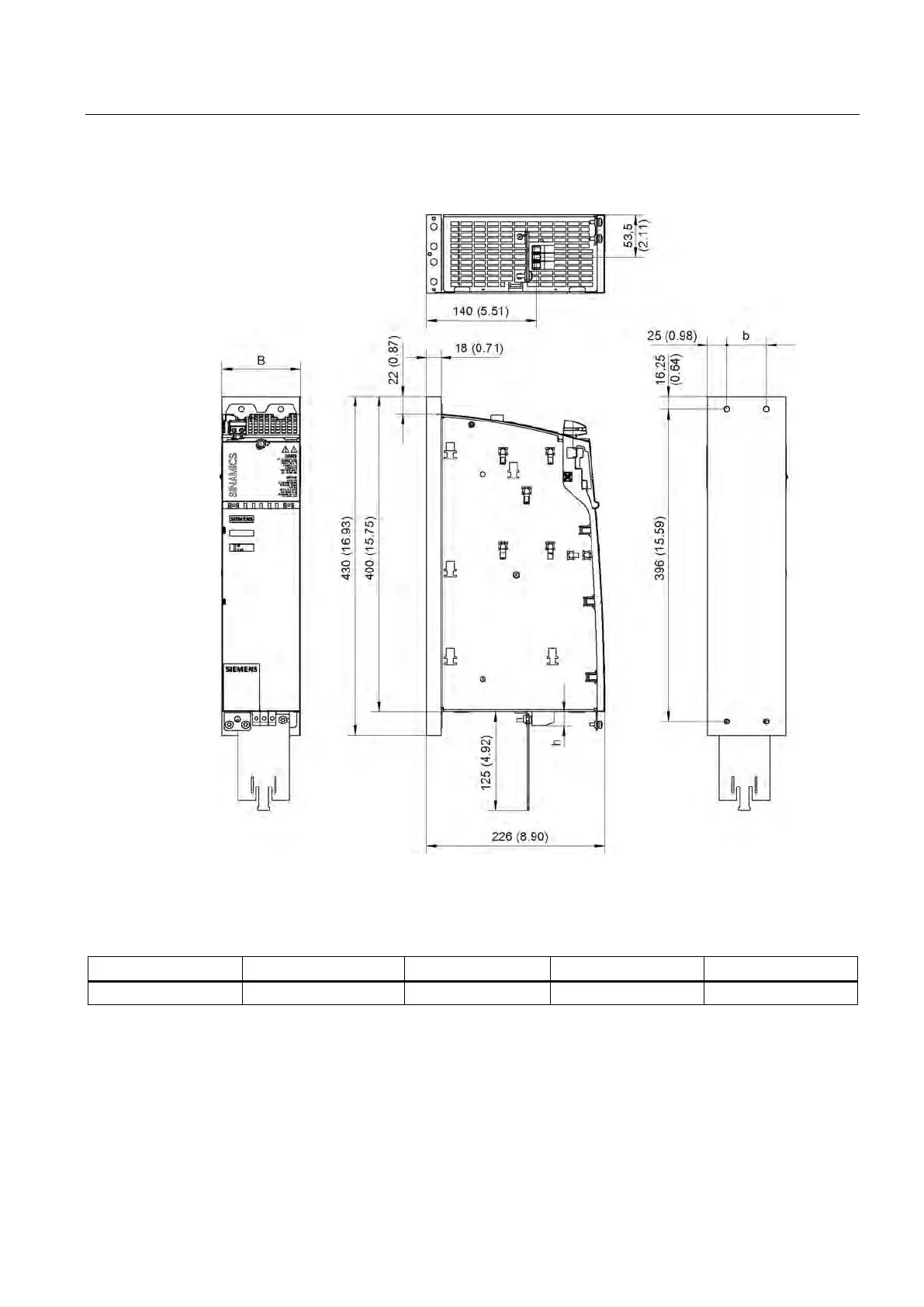

Figure 4-32 Dimension drawing of 16 kW Active Line Module with cold plate, all dimensions in mm

and (inches)

Table 4- 30 Dimensions of 16 kW Active Line Module with cold plate

Active Line Module

Order number

B [mm] (inches)

b [mm] (inches)

h [mm] (inches)

16 kW

6SL3136-7TE21-6AAx

100 (3.94)

50 (1.97)

18 (0.71)
