Line connection and line-side power components
3.9 Active Interface Modules internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
123

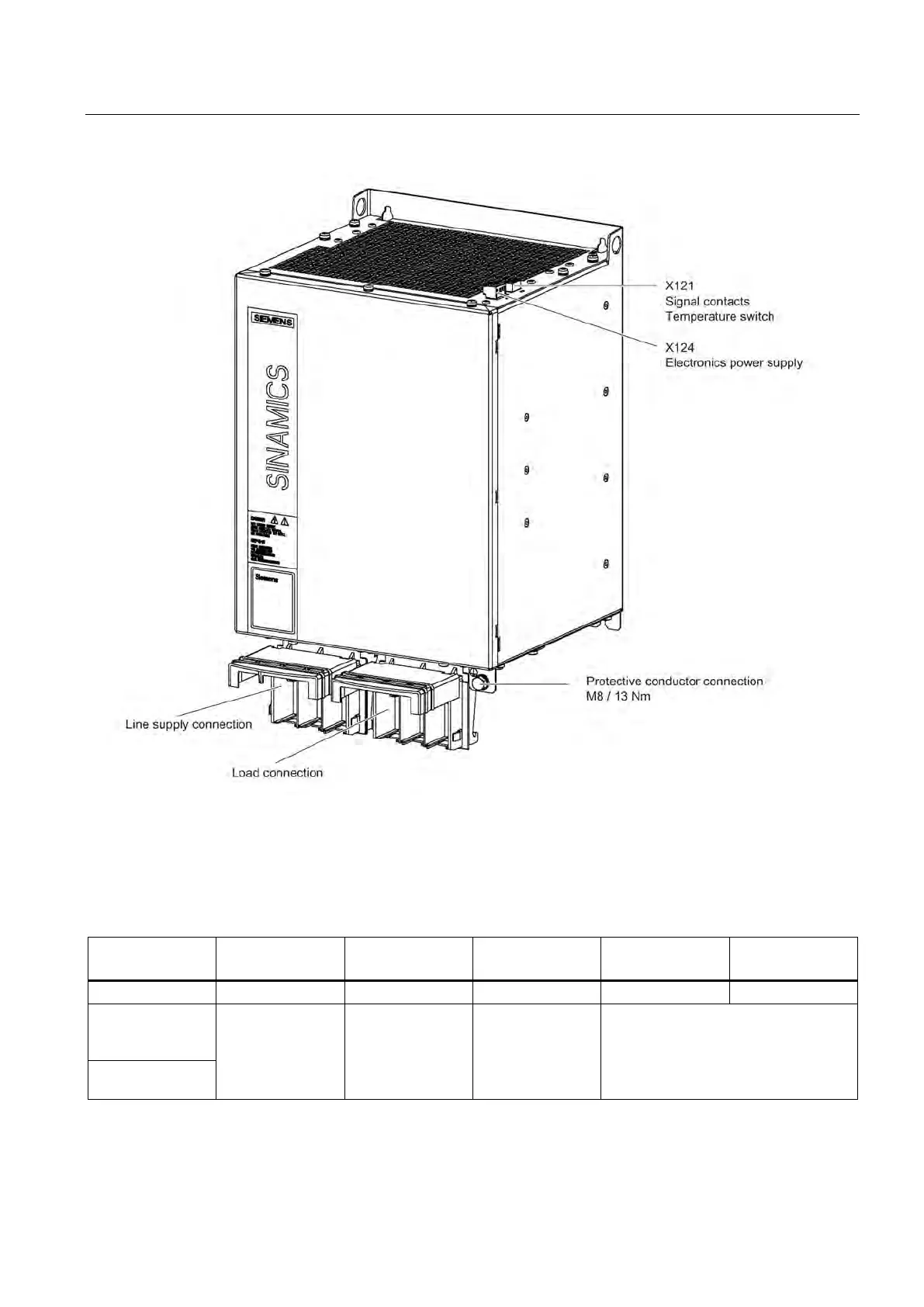

Figure 3-54 Interface overview, Active Interface Module 80 kW and 120 kW
Table 3- 22 Line and load connection Active Interface Module
Line supply
connection
Connector,
16 mm²,
1.7 Nm
Screw terminal
50 mm²,
end sleeve,
6 Nm
Screw terminal
50 mm²,
end sleeve,
6 Nm
Threaded bolt M8,
cross-section 120 / 2 x 50 mm²,
13 Nm
1)
Load connection
1)
For ring cable lugs without insulation
