4.2 Active Line Modules with internal air cooling
Booksize Power Units
164 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

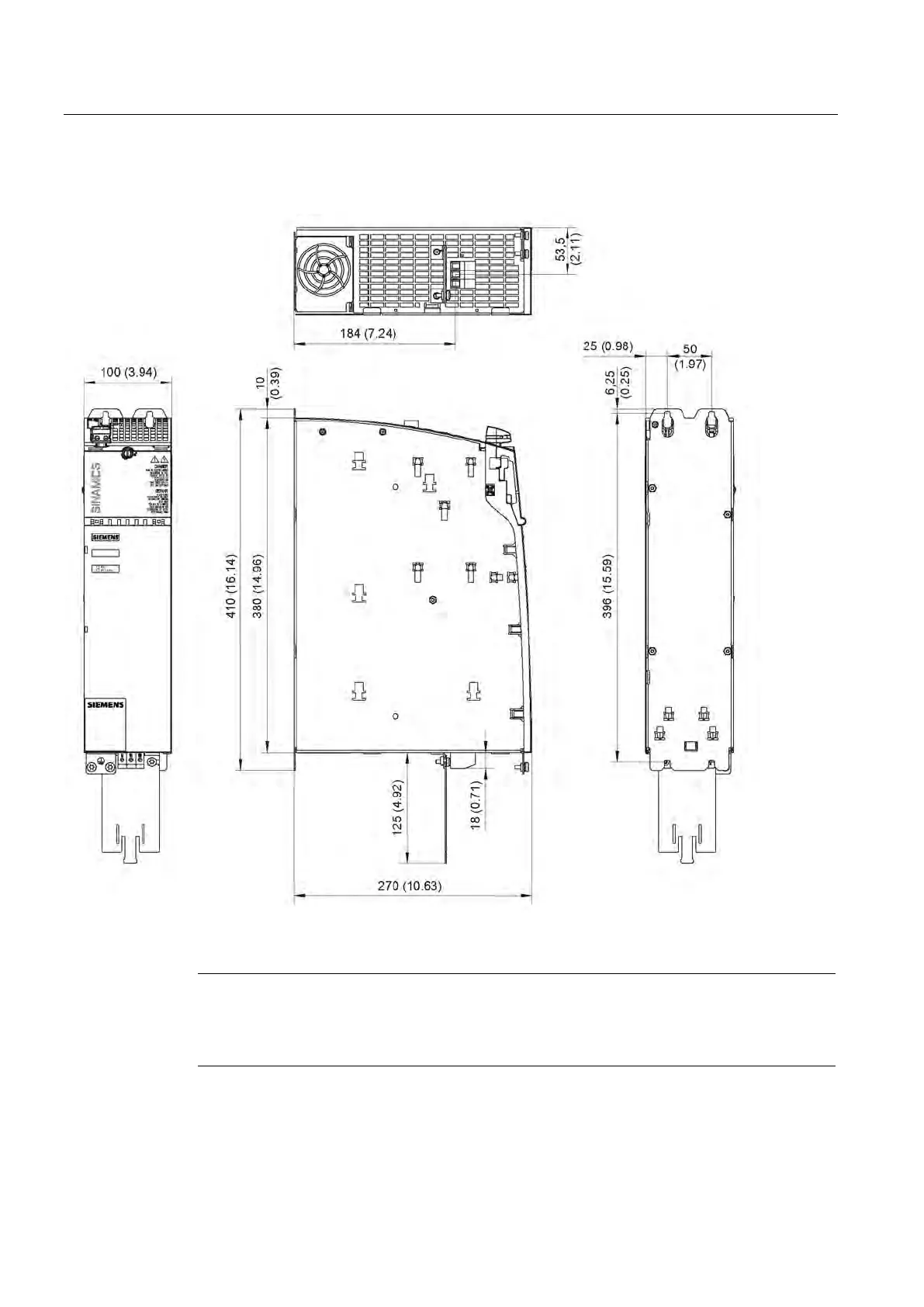

Figure 4-3 Dimension drawing of 16 kW Active Line Module with internal air cooling, all dimensions in mm and (inches)
Note
The shield connecting plate is supplied as standard with a 100 mm Line Module.
For more information, see Chapter
Shield connecting plates for power supply and motor
(Page 617).
