Siemens 6SL3120-2TE21-0AA3 User Manual

Line Modules Booksize
4.5 Active Line Modules Liquid Cooled
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
219
4.5.2.2
X1 line connection

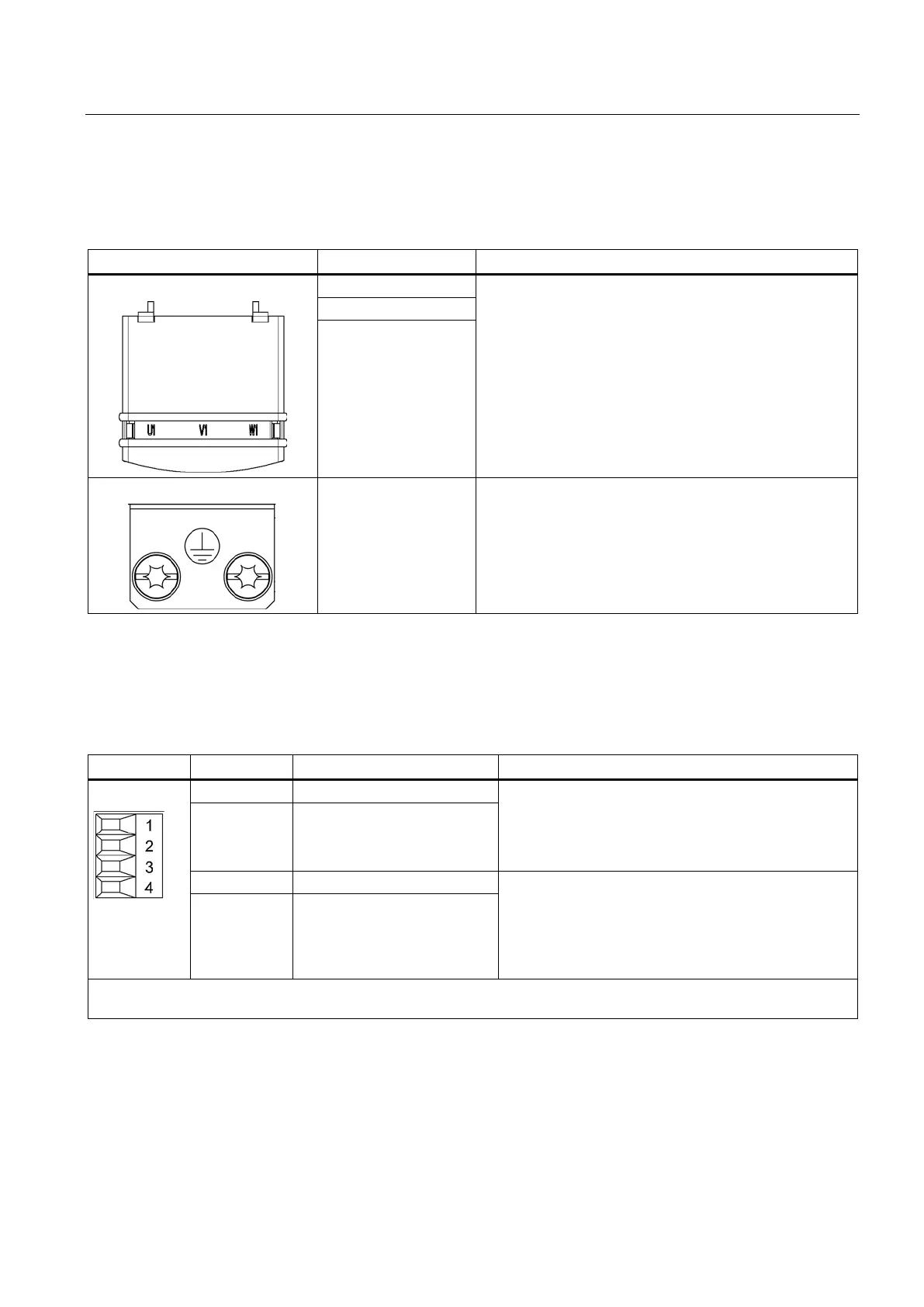

Table 4- 34 X1 line connection
Terminals
Technical data
U1
Supply voltage:
3 AC 380 V … 480 V, 50 / 60 Hz
Threaded bolts M8 / 13 Nm
1)
V1
W1
PE connection Threaded hole M8 / 13 Nm
1)
1)
For ring cable lugs without insulation
4.5.2.3
X21 EP terminals
Table 4- 35 X21 EP terminal / temperature sensor
Terminal
Designation
Technical data
1
+ Temp
Temperature sensors
1)
: KTY 84–
1C130
2)
/PTC
2)
/bimetallic switch with NC contact
If an Active Interface Module is used, the temperature
input must be connected to the Active Interface Module
sensor (bimetallic switch with NC contact).
2 - Temp
3
EP +24 V (pulse enable)
Voltage: 24 V DC
Current consumption: 10 mA
Isolated input
Signal propagation times:
L → H: 100 μs
H → L: 1000 μs
4 EP M (Enable Pulses)
Type: Screw terminal 1 (Page 755)
Max. cross-section that can be connected: 1.5 mm
2
1)
The temperature sensor type and the temperature output can be selected by parameter (see the SINAMICS S120/S150
List Manual).
2)
Temperatures are detected but not evaluated in the Active Line Module.
