Line connection and line-side power components
3.9 Active Interface Modules internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
125
Note
The two "+" and "M" terminals are jumpered in the connector. This ensures the su
pply
voltage is looped through.
3.9.4
Connection example
1)
Digital output (DO), controlled by the Control Unit

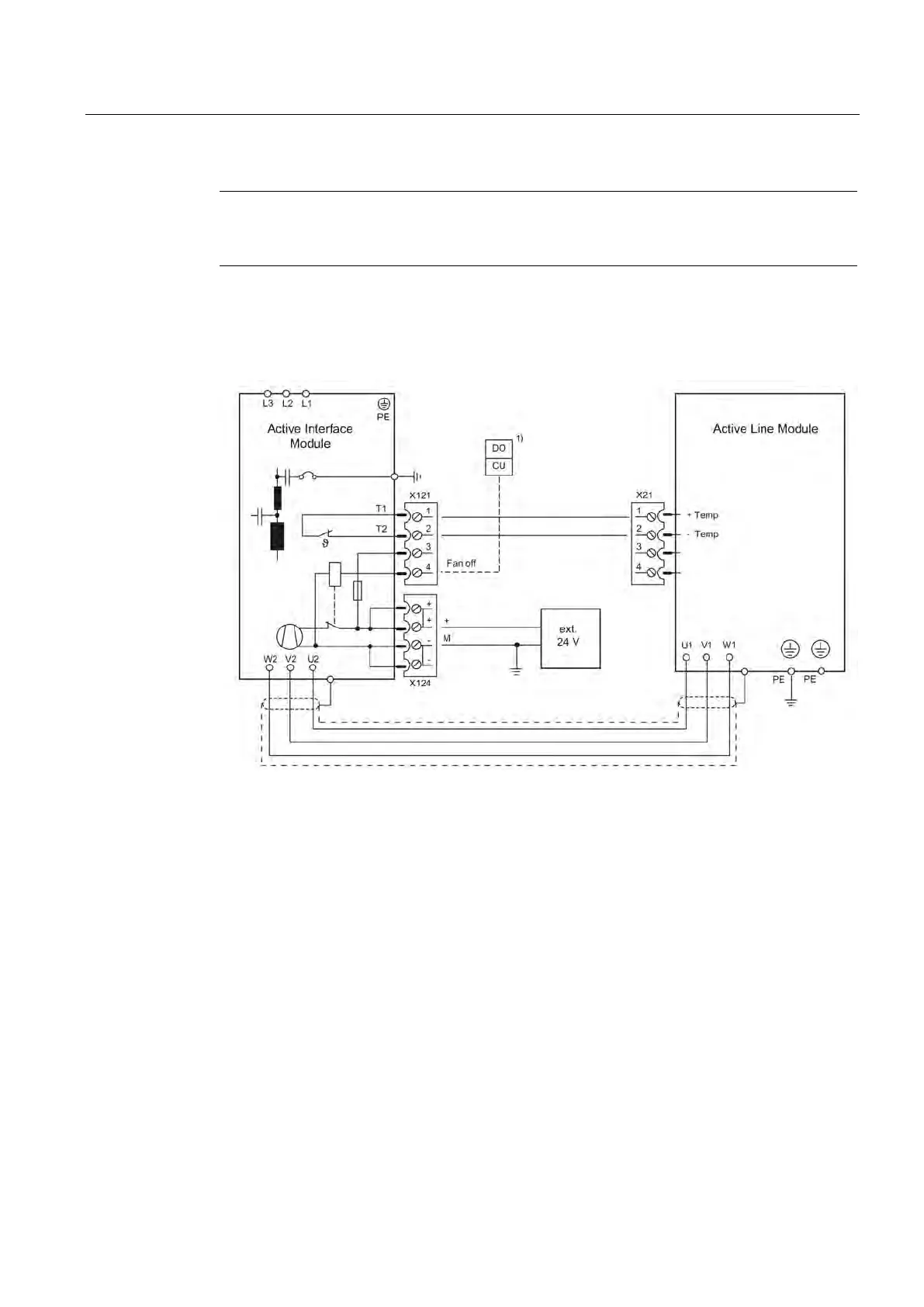

Figure 3-55 Connection example: Active Interface Module
