Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
404 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

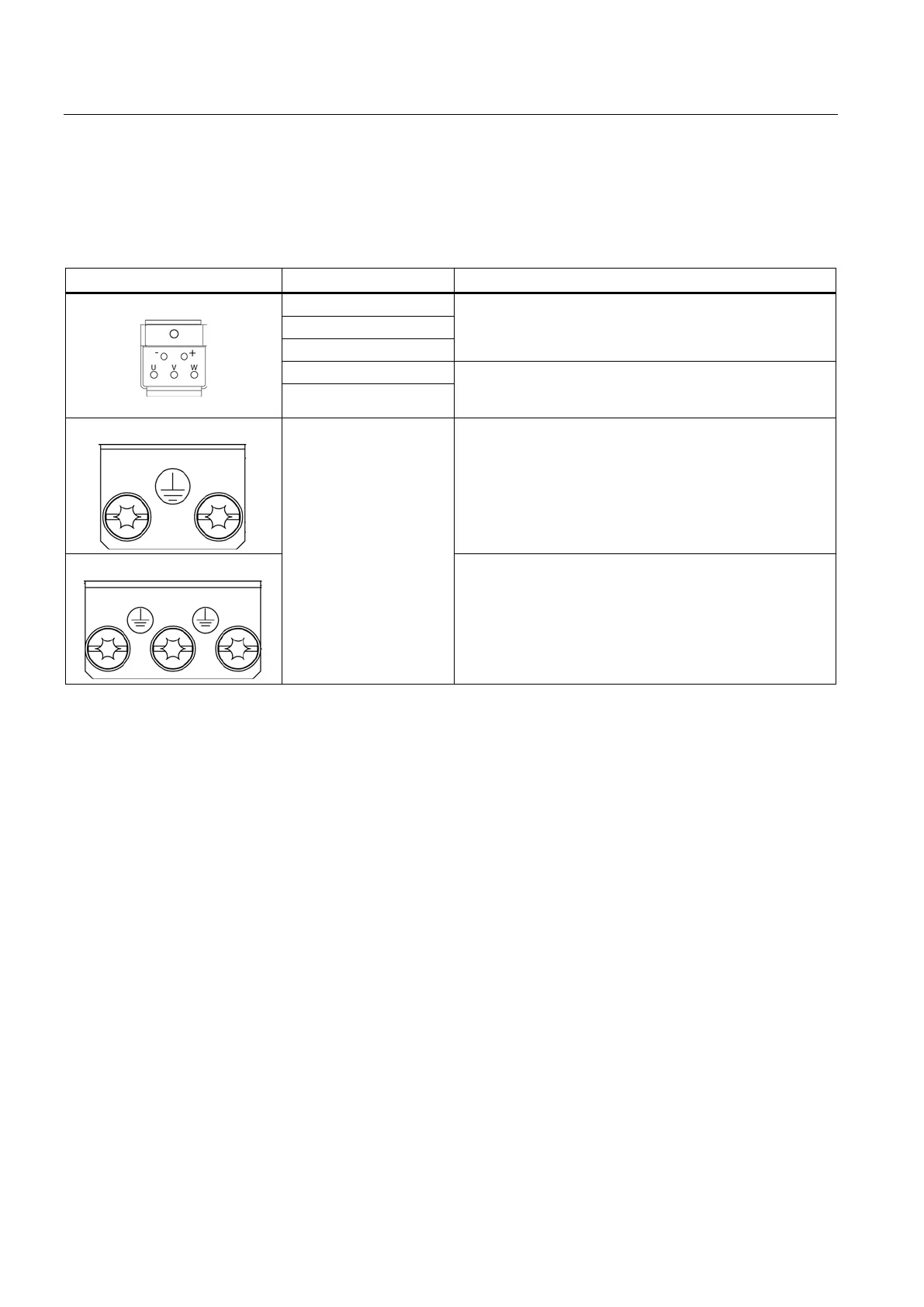

6.3.2.2 Motor and brake connection
Table 6- 16 X1/X2 motor and brake connection for Single Motor Modules 3 A to 30 A and Double Motor Modules 3 A to
18 A
Terminal Technical data
U (U2) Motor connection
V (V2)
W (W2)
+ (BR+) Brake connection
Max. load current: 2 A
Minimum load current: 0.1 A
- (BR-)
PE connection Single Motor Modules 3 ... 30 A:
Threaded hole M5 / 3 Nm
1)
Double Motor Modules 3 ... 18 A:
Threaded hole M
5 / 3 Nm
1)
1)
For ring cable lugs without insulation
