Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
409
6.3.3
Connection examples

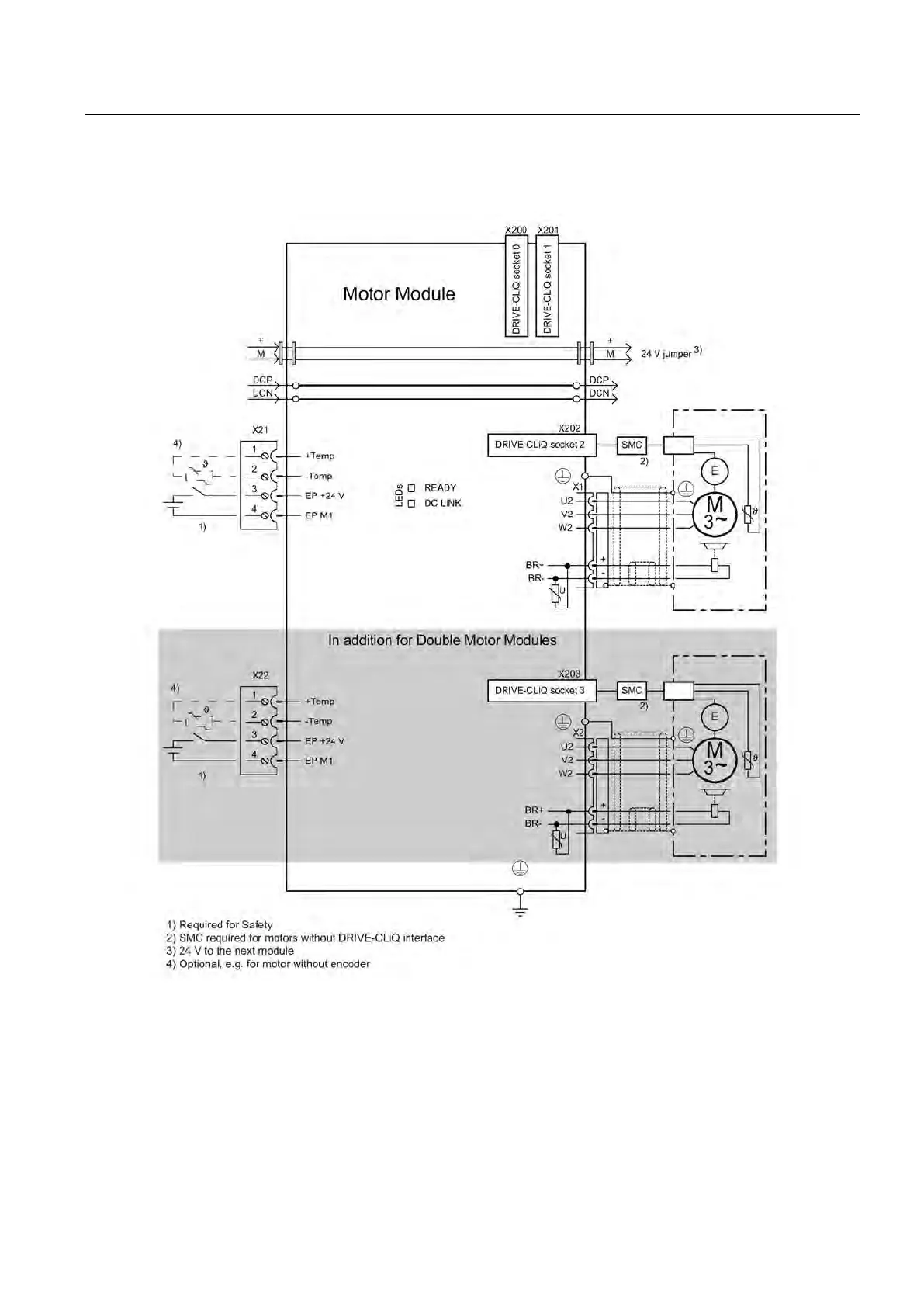

Figure 6-36 Connection example of Motor Modules 3 A to 30 A and Double Motor Modules 3 A to 18 A
