Line Modules Booksize
4.9 Smart Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
319
Mounting plate with openings
M6 nut, width A/F 10 (hexagon head)

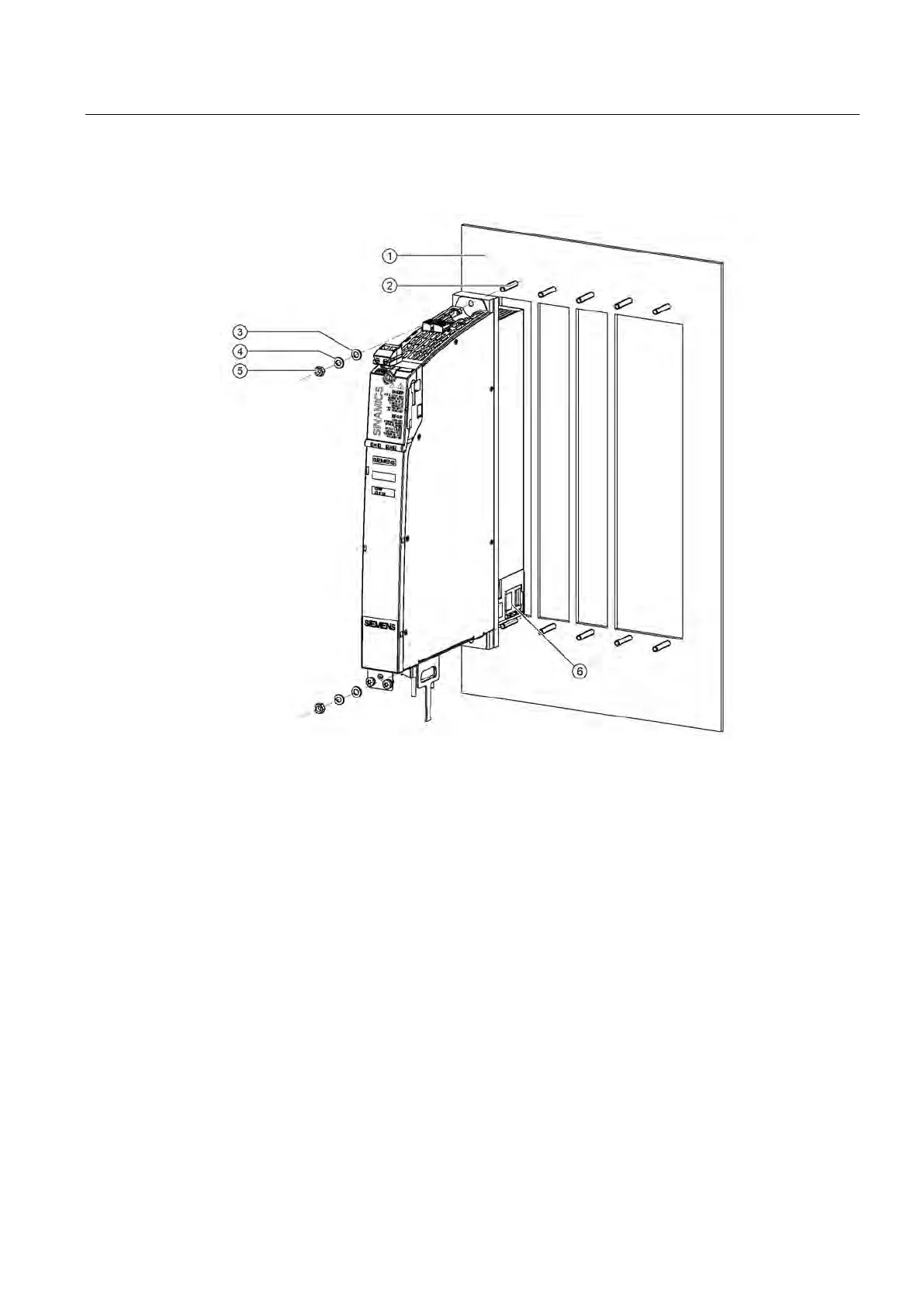

Figure 4-97 Mounting a Smart Line Module with external air cooling on a mounting plate, using a
5 kW Smart Line Module as an example
● Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts.
Tightening torque: 6 Nm
