Siemens 6SL3120-2TE21-0AA3 User Manual

Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
113
3.8.6.2
Dimension drawings

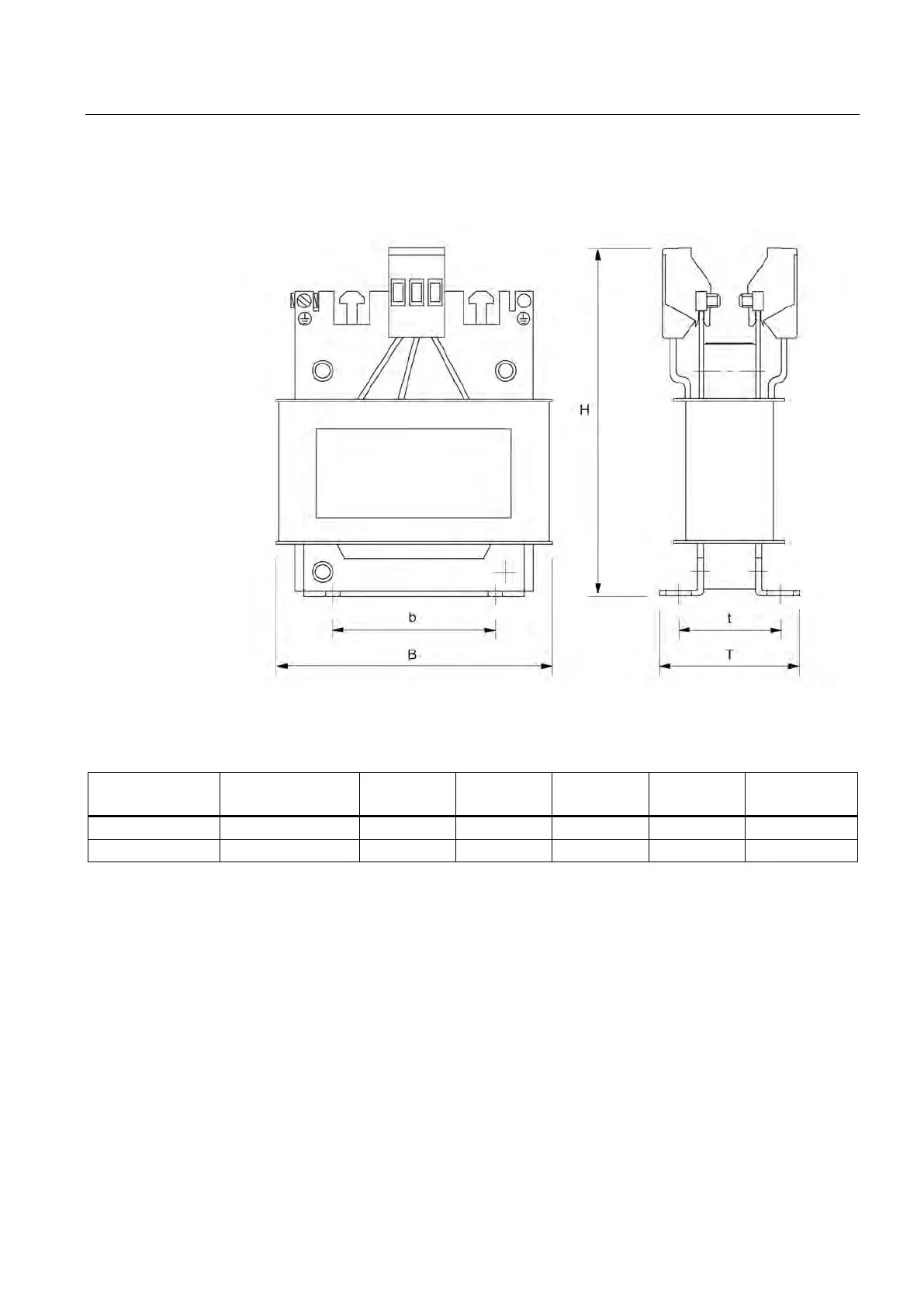

Figure 3-47 Dimension drawing of line reactor for Smart Line Modules 5 kW and 10 kW
Table 3- 20 Dimensions of line reactors for Smart Line Modules (5 kW and 10 kW)
Order number
6SL3000-
B [mm]
(inches)
b [mm]
1)
(inches)
H [mm]
(inches)
D [mm]
(inches)
t [mm]
1)
(inches)
5 kW
0CE-15-0AAx
150 (5.91)
113 (4.53)
175 (6.89)
66,5 (2.62)
49,5 (1.95)
10 kW
0CE-21-0AAx
177 (6.97)
136 (5.35)
196 (7.72)
86 (3.39)
67 (2.64)
1)
Lengths b and t correspond to the distance between holes
