Motor Modules Booksize
6.2 Motor Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
389
Characteristics

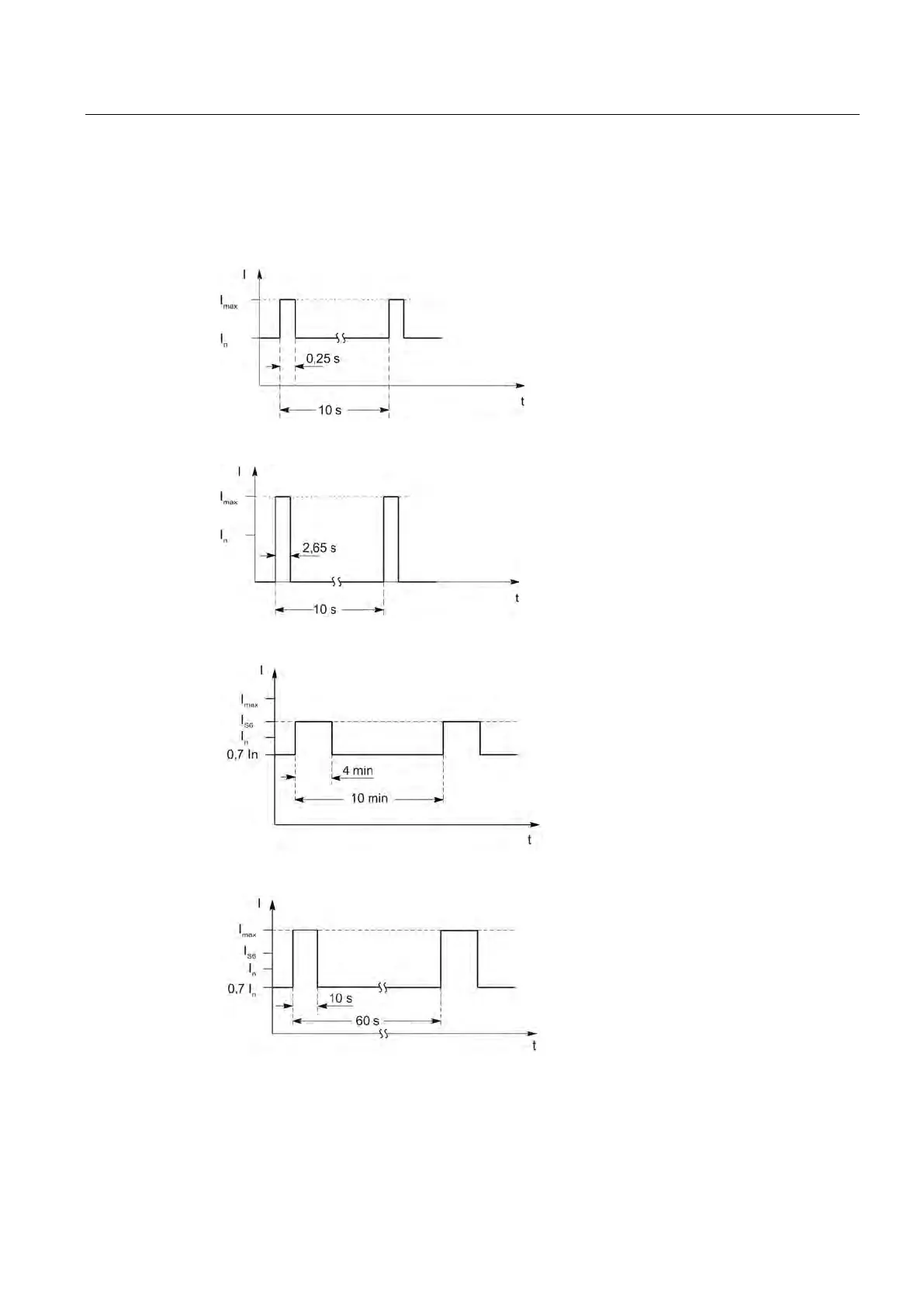

Rated duty cycles Motor Modules Booksize
Figure 6-12 Duty cycle with initial load (for servo drives)
Figure 6-13 Duty cycle without initial load (for servo drives)
Figure 6-14 S6 duty cycle with initial load with a duty cycle duration of 600 s (for servo drives)
Figure 6-15 S6 duty cycle with initial load with a duty cycle duration of 60 s (for servo drives)
