6.4 Motor Modules with cold plate
Booksize Power Units
450 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
6.4.5
Dimension drawings

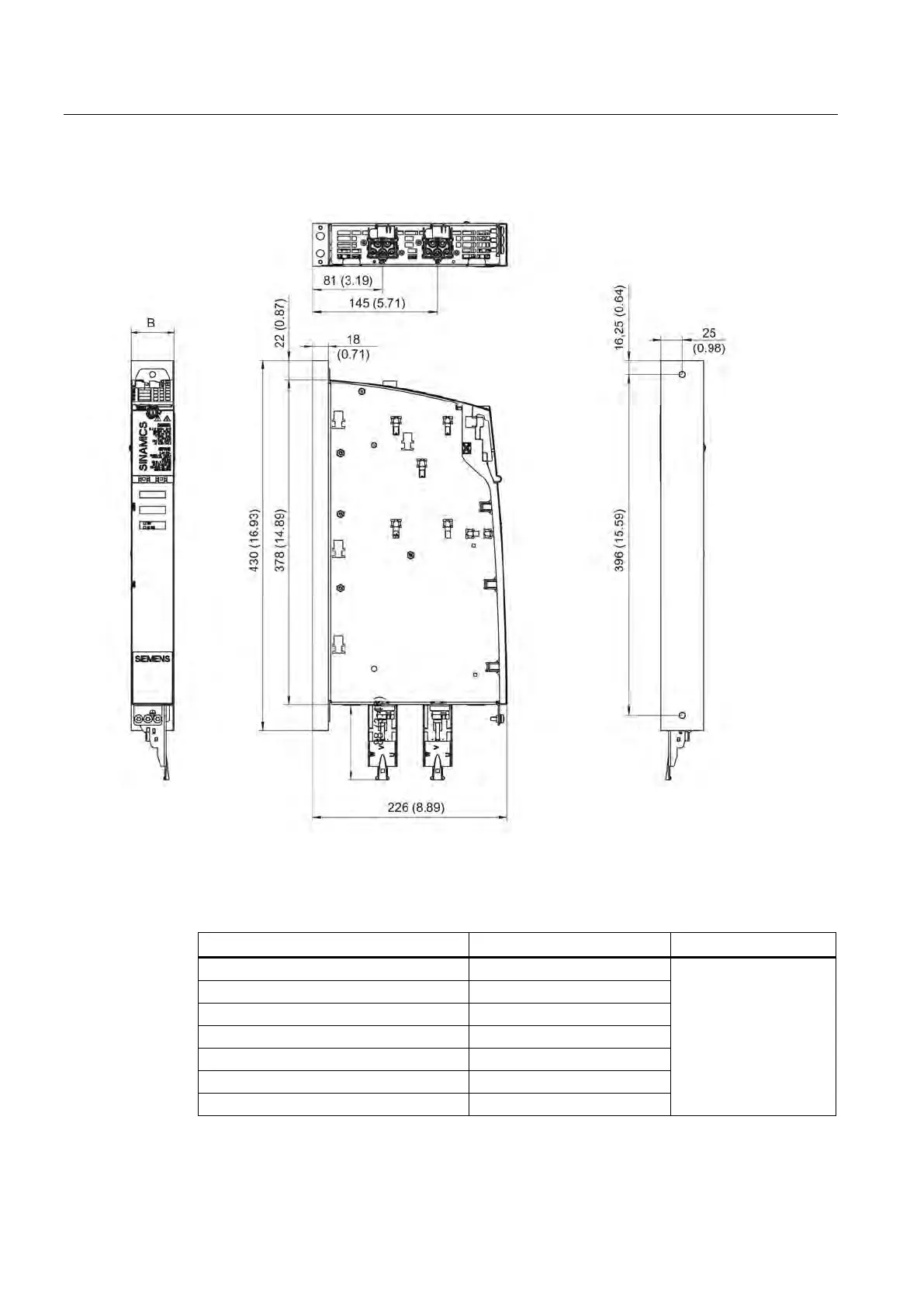

Figure 6-75 Dimension drawing of 3 A to 18 A and 2 x 3 A to 2 x 9 A Motor Modules Booksize with cold plate, all
dimensions in mm and (inches); example: 2 x 5 A Double Motor Module
Table 6- 37 Dimensions of 3 A to 18 A and 2 x 3 A to 2 x 9 A Motor Modules Booksize with cold plate
Motor Module
Order number
B [mm] (inches)
3 A Single Motor Module
6SL3126-1TE13-0AAx
50 (1.97)
5 A Single Motor Module 6SL3126-1TE15-0AAx
9 A Single Motor Module
6SL3126-1TE21-0AAx
18 A Single Motor Module
6SL3126-1TE21-8AAx
3 A Double Motor Module
6SL3126-2TE13-0AAx
5 A Double Motor Module
6SL3126-2TE15-0AAx
9 A Double Motor Module
6SL3126-2TE21-0AAx
