6.2 Motor Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
379
6.2.5
Dimension drawings

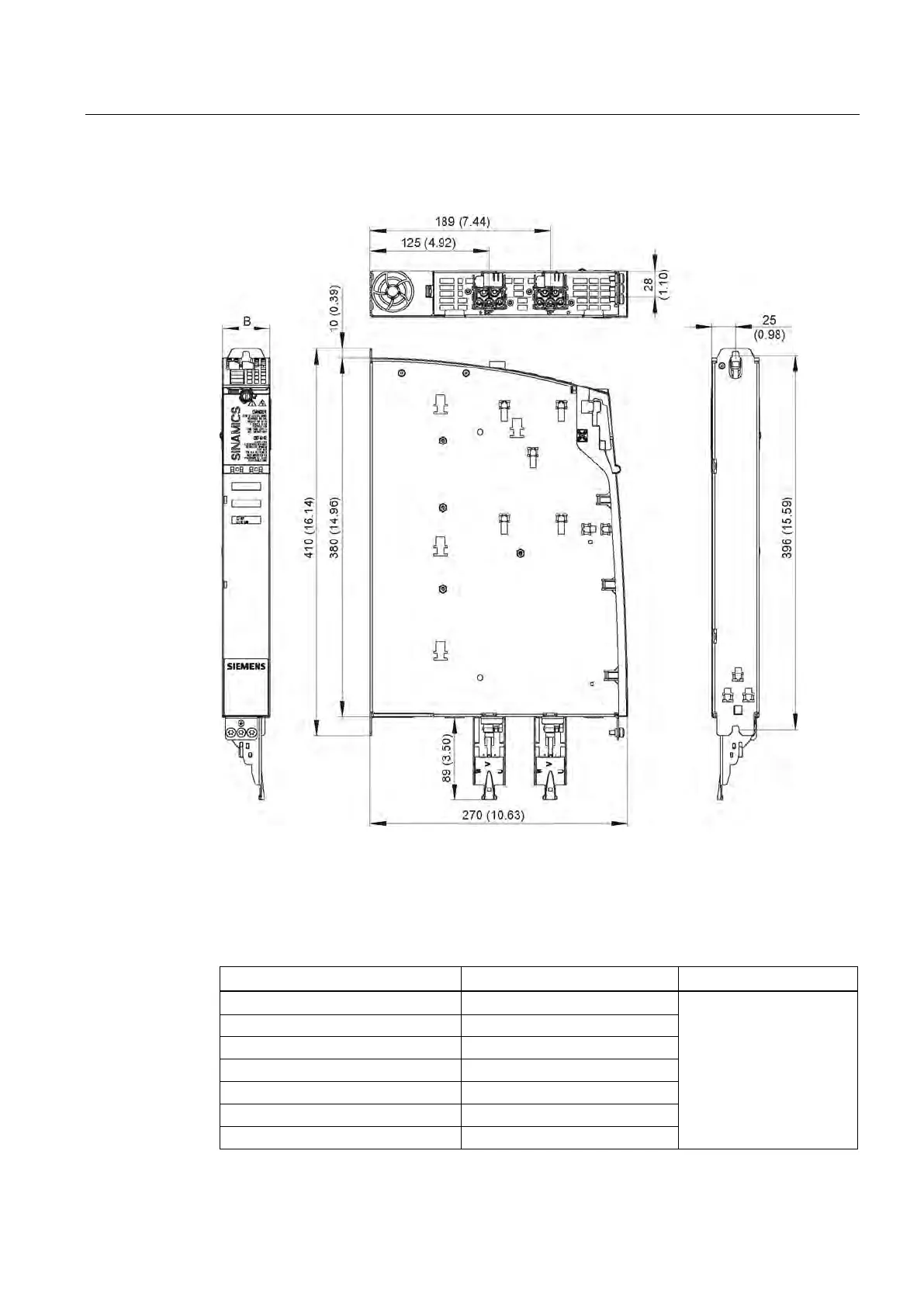

Figure 6-5 Dimension drawing of Motor Modules Booksize with internal air cooling 3 A to 18 A and
2 x 3 A to 2 x 9 A, all dimensions in mm and (inches); example: Double Motor Module
2 x 5 A
Table 6- 7 Dimensions of Motor Modules Booksize with internal air cooling 3 A to 18 A and 2 x 3 A
to 2 x 9 A
Motor Module
Order number
B [mm] (inches)
Single Motor Module 3 A
6SL3120-1TE13-0AAx
50 (1.97)
Single Motor Module 5 A
6SL3120-1TE15-0AAx
Single Motor Module 9 A
6SL3120-1TE21-0AAx
Single Motor Module 18 A
6SL3120-1TE21-8AAx
Double Motor Module 3 A
6SL3120-2TE13-0AAx
Double Motor Module 5 A
6SL3120-2TE15-0AAx
Double Motor Module 9 A
6SL3120-2TE21-0AAx
