Line Modules Booksize
4.4 Active Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
205
4.4.3
Connection example

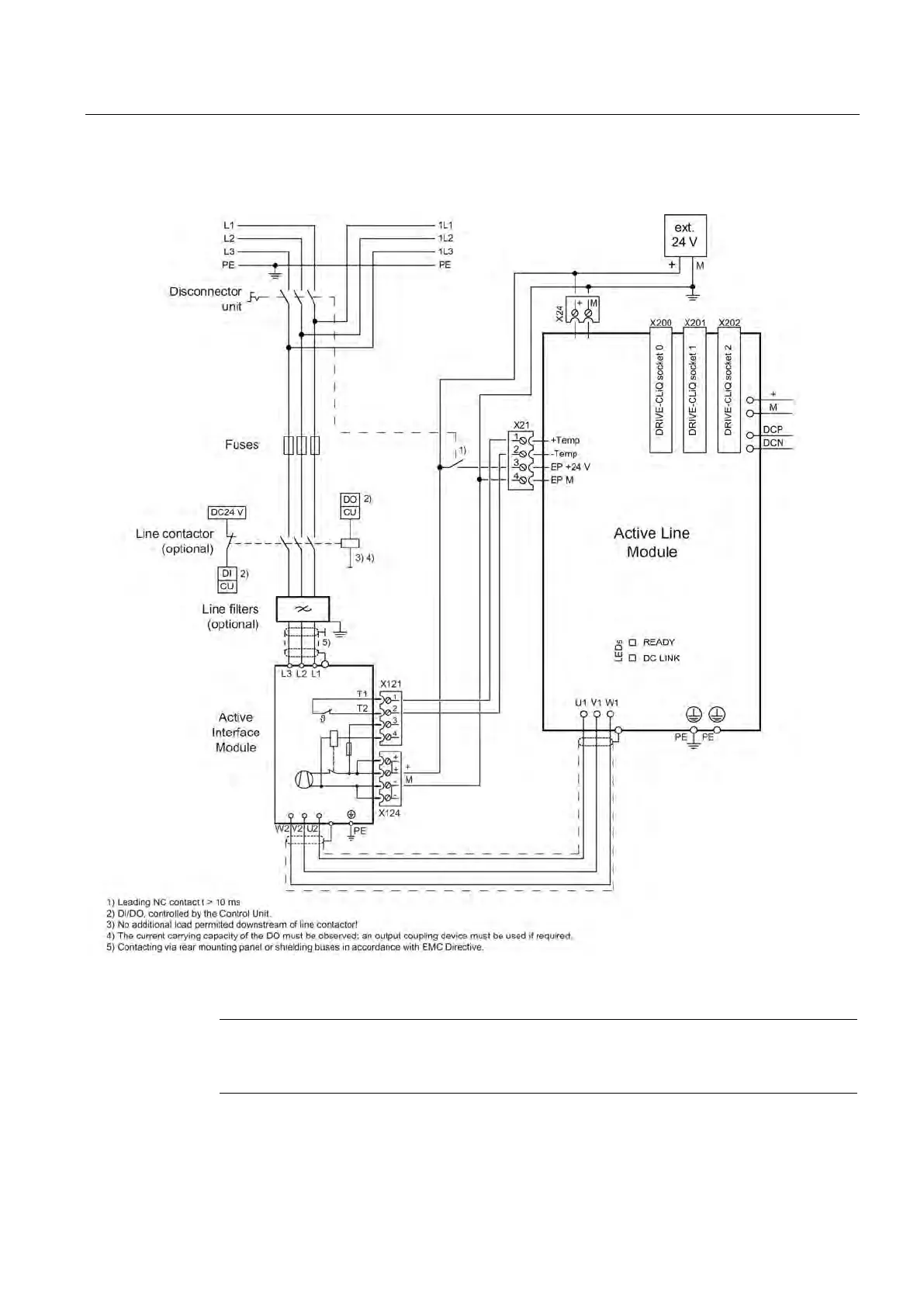

Figure 4-31 Connection example: Active Line Module with cold plate
Note
If you are using a VSM10 Voltage Sensing Module, the leading opening contact can be
omitte
d.
