Siemens 6SL3120-2TE21-0AA3 User Manual

Line Modules Booksize
4.7 Basic Line Modules with cold plate
Booksize Power Units
254 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

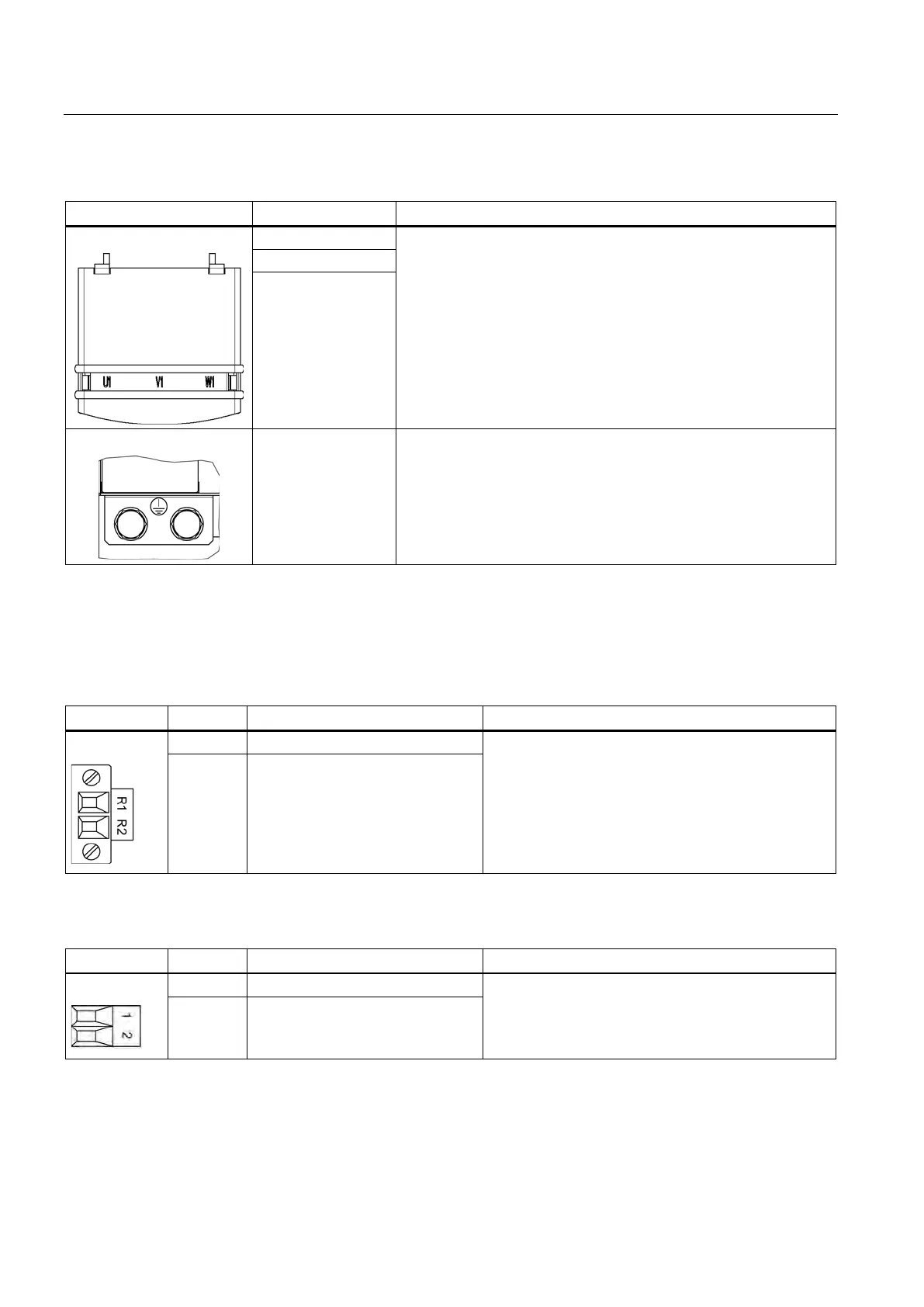

Table 4- 53 X1: Line supply connection for Basic Line Modules 100 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Type: Threaded bolts M8
1)
Max. connectable cross-section: 120 mm
2
Tightening torque: 13 Nm
V1
W1
PE connection Threaded hole M6 / 6 Nm
1)
1)
For ring cable lugs without insulation
4.7.2.3
X2 braking resistor connection
Table 4- 54 X2: Braking resistor connection at the Basic Line Module 20 kW
Terminal
Designation
Technical data
1
Braking resistor connection R1
Type: Screw terminal 4 (Page 755)
Max. cross-section that can be connected: 4 mm
2
Tightening torque: 0.5 … 0.6 Nm
2 Braking resistor connection R2
Table 4- 55 X2: Braking resistor connection at the Basic Line Module 40 kW
Terminal
Designation
Technical data
1
Braking resistor connection R1
Type: Screw terminal 6 (Page 755)
Max. cross-section that can be connected: 10 mm
2
Tightening torque: min 1.5 ... 1.8 Nm
2 Braking resistor connection R2
