Siemens 6SL3120-2TE21-0AA3 User Manual

Line Modules Booksize
4.4 Active Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
201
4.4.2.2
X1 line connection

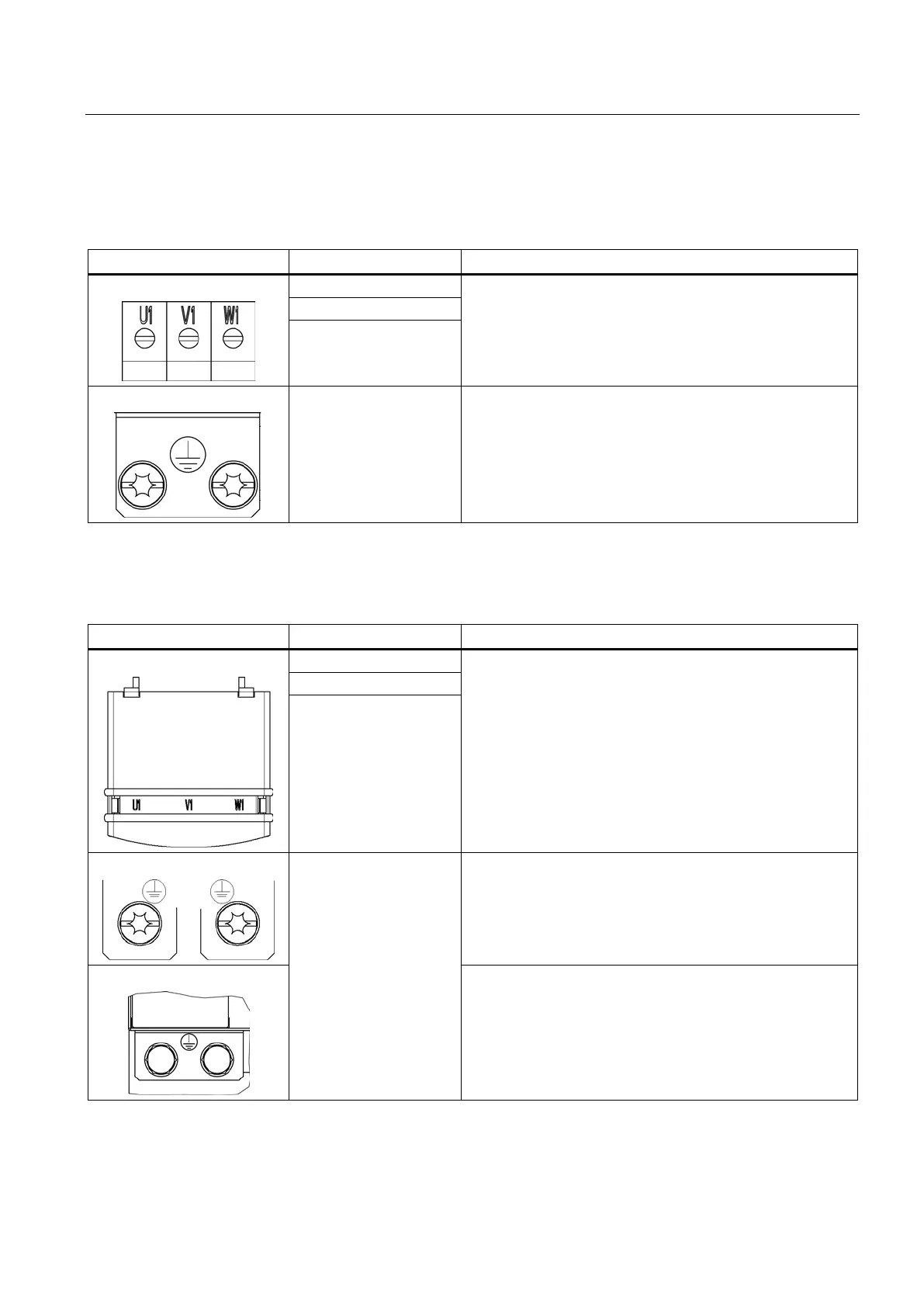

Table 4- 24 X1: Line connection for Active Line Modules 16 kW
Terminal
Technical data
U1
Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (Page 755)
Tightening torque: 1.5 … 1.8 Nm
V1
W1
PE connection Threaded hole M5 / 3 Nm
1)
1)
For ring cable lugs without insulation
Table 4- 25 X1: Line supply connection for Active Line Modules 36 kW to 120 kW
Terminal
Technical data
U1
Supply voltage:
380 … 480 V 3 AC, 50/60 Hz
36 kW:
Threaded bolts M6 / 6 Nm
1)
55 kW, 80 kW and 120 kW:
Threaded bolts M8 / 13 Nm
1)
V1
W1
PE connection
36 kW and 55 kW:
Threaded hole M6 / 6 Nm
1)
80 kW and 120 kW:
Threaded hole M8 / 13 Nm
1)
1)
For ring cable lugs without insulation
