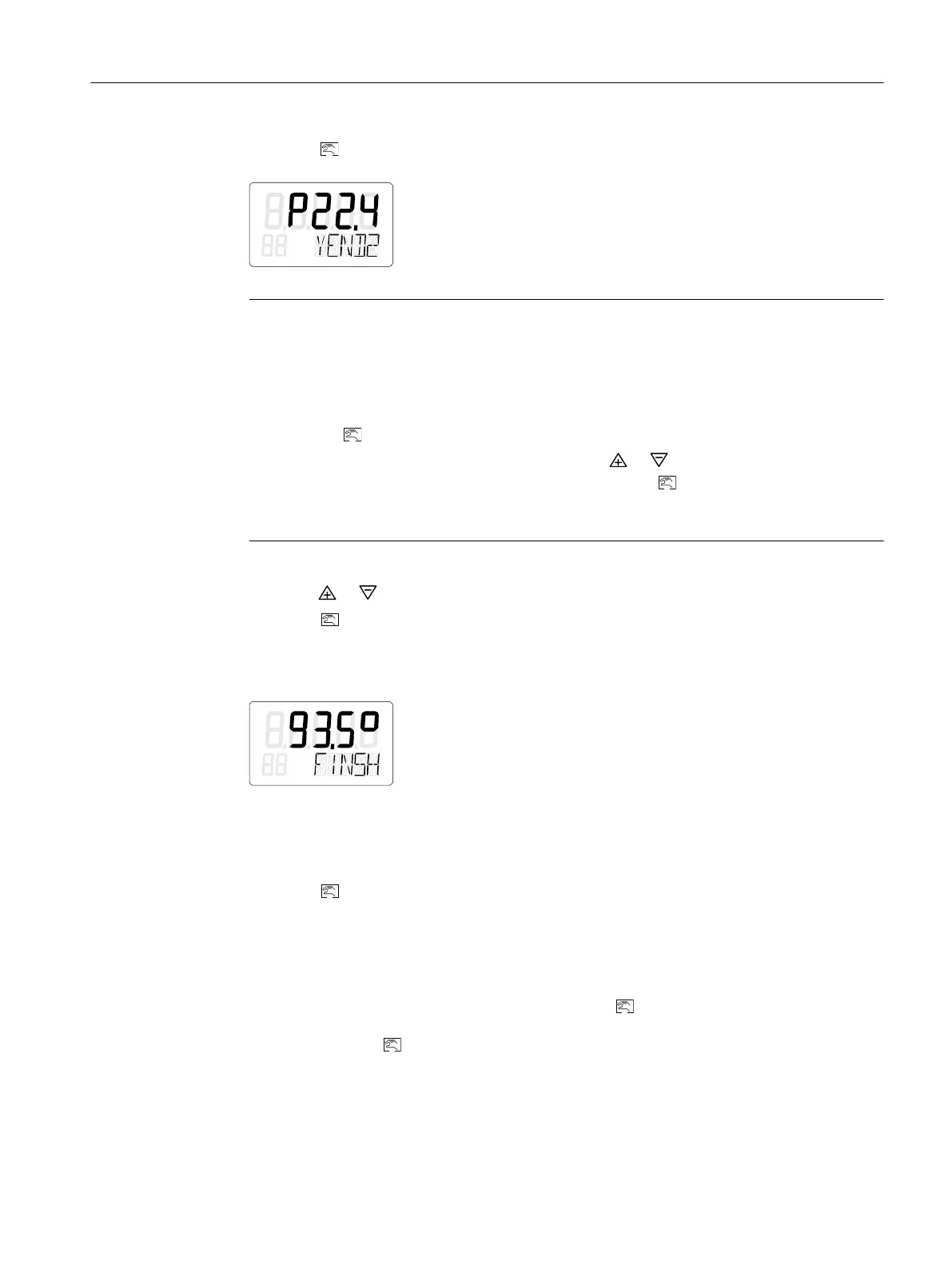

9. Press the button. The current position of the actuator is applied. The display shows the
following:
Note
Fault message "RANGE"
The selected end position is beyond the permissible measuring range if the "RANGE"
message is output on the display. Correct the settings as follows:
1. Move the friction clutch until the display shows "OK".
2. Press the button.
3. Move the actuator to another position using the or button.
4. Abort the manual initialization process by pressing the button.
5. Then return to "P manual mode".
6. Correct the actuator travel and the position detection.
10.Determine the upper endstop of the actuator. Move the actuator to the desired position
using the or button.
11.Press the button. The current position of the actuator is applied.
12.The initialization process is automatically resumed. Initialization steps "RUN 1" to "RUN 5"
are output in the bottom line of the display. The following display indicates that the
initialization has been completed successfully:
7.8 Canceling initialization
1. Press the
button.
– Canceling automatic initialization: the display shows "INITA".
– Canceling manual initialization: the display shows "INITM".
The positioner is in the "Configuration" mode.
2. Exit the "Configuration" mode. To do this, press the button for at least 5 seconds.
The software version is displayed.
After releasing the button, the positioner is in "P manual mode". The positioner is not
initialized.
Commissioning
7.8 Canceling initialization
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 129
