Operation
6
6.1 Operating elements
6.1.1 Display
Introduction
Note
Repetition rate display
When operated in temperature ranges below -10°C, the liquid crystal display of the positioner
becomes sluggish and the repetition rate display reduces considerably.
The display has two lines. These two lines are segmented differently. Each element in the
upper line has 7 segments, whereas that in the lower line has 14 segments. Contents of the
display depend on the selected mode.

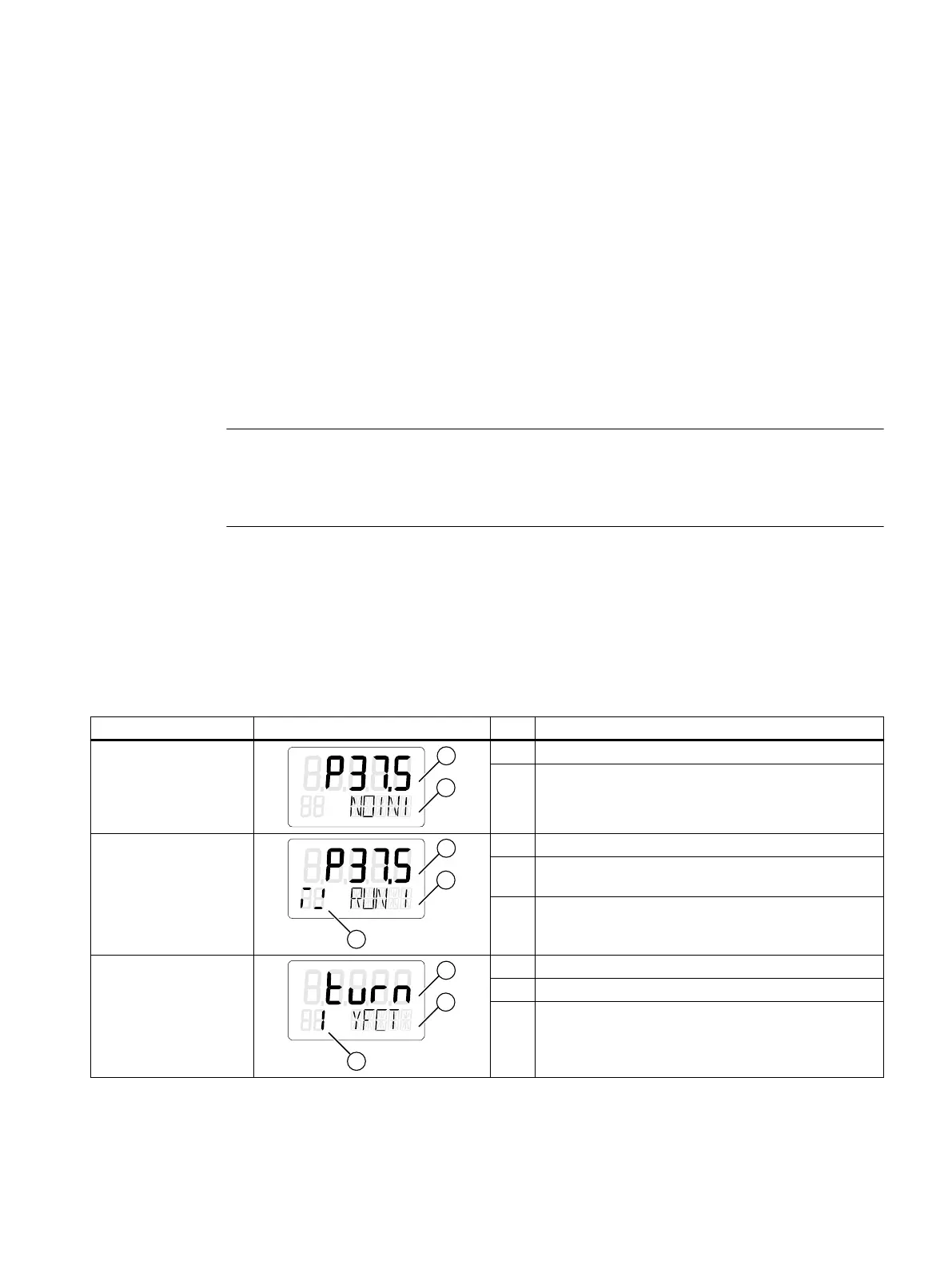

Display options as per the mode
An overview of mode-specific display options is given below.
Operating mode Representation in the display Pos. Legend
P manual mode
â‘ Potentiometer setting [%]
â‘¡ Blinking indicator for the non-initialized status.
Initialization mode
â‘ Potentiometer setting [%]
â‘¡ Display of the current status of initialization or a fault
message.
â‘¢ Indicator for ongoing initialization or a fault message.
Configuring
â‘ Parameter value
â‘¡ Parameter name
â‘¢ Parameter number
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 97
