4.5.7 EMC filter modules 6DR4004-6F and -8F
Function
You will require the EMC filter module if you use an external position sensor on the positioner,
e.g. a potentiometer or a non-contacting sensor. The EMC filter module forms the interface
between external position sensors and the basic electronics of the positioner. This module
protects the positioner from electromagnetic effects.
Device features

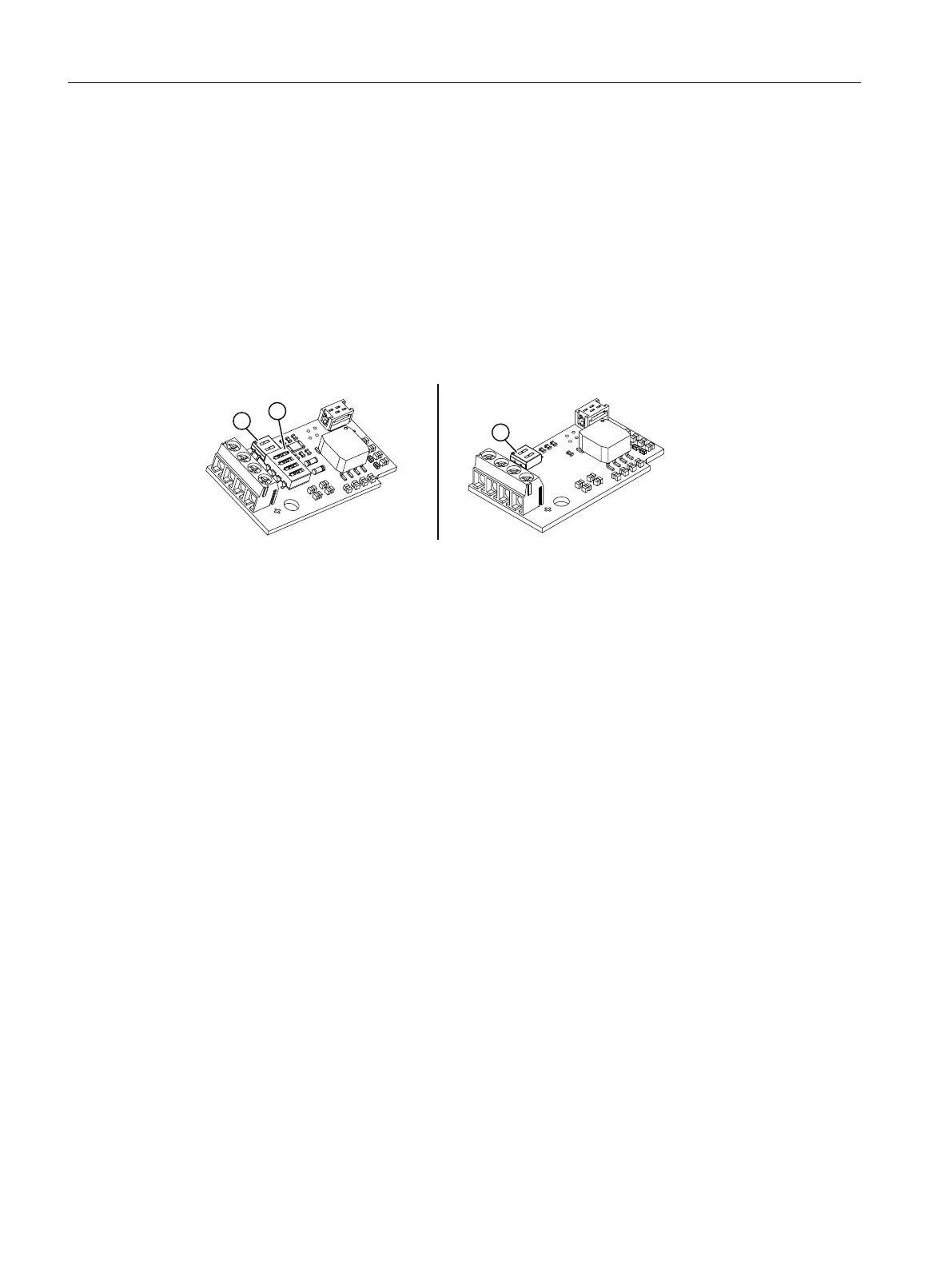

① Switch block 1
② Switch block 2
Figure 4-20 EMC filter module, schematic diagram
● EMC protection
● Connection to basic electronics
● Connection terminals for:
– External potentiometers with 3 kΩ, 5 kΩ or 10 kΩ
– Signals 0 to 20 mA
– Signals 0 to 10 V
Requirement
● You are familiar with the general procedure described in the section "General information on
installing option modules (Page 53)".
● You have at least one of the following modules:
– 6DR4004-8F EMC filter module / Analog Input Module (AIM) - nEx
– 6DR4004-6F EMC filter module / Analog Input Module (AIM) - Ex
Installing/mounting
4.5 Installing the optional modules
SIPART PS2 with PROFIBUS PA
74 Operating Instructions, 05/2019, A5E00127926-AC
