F.3 Positioner with remote control electronics

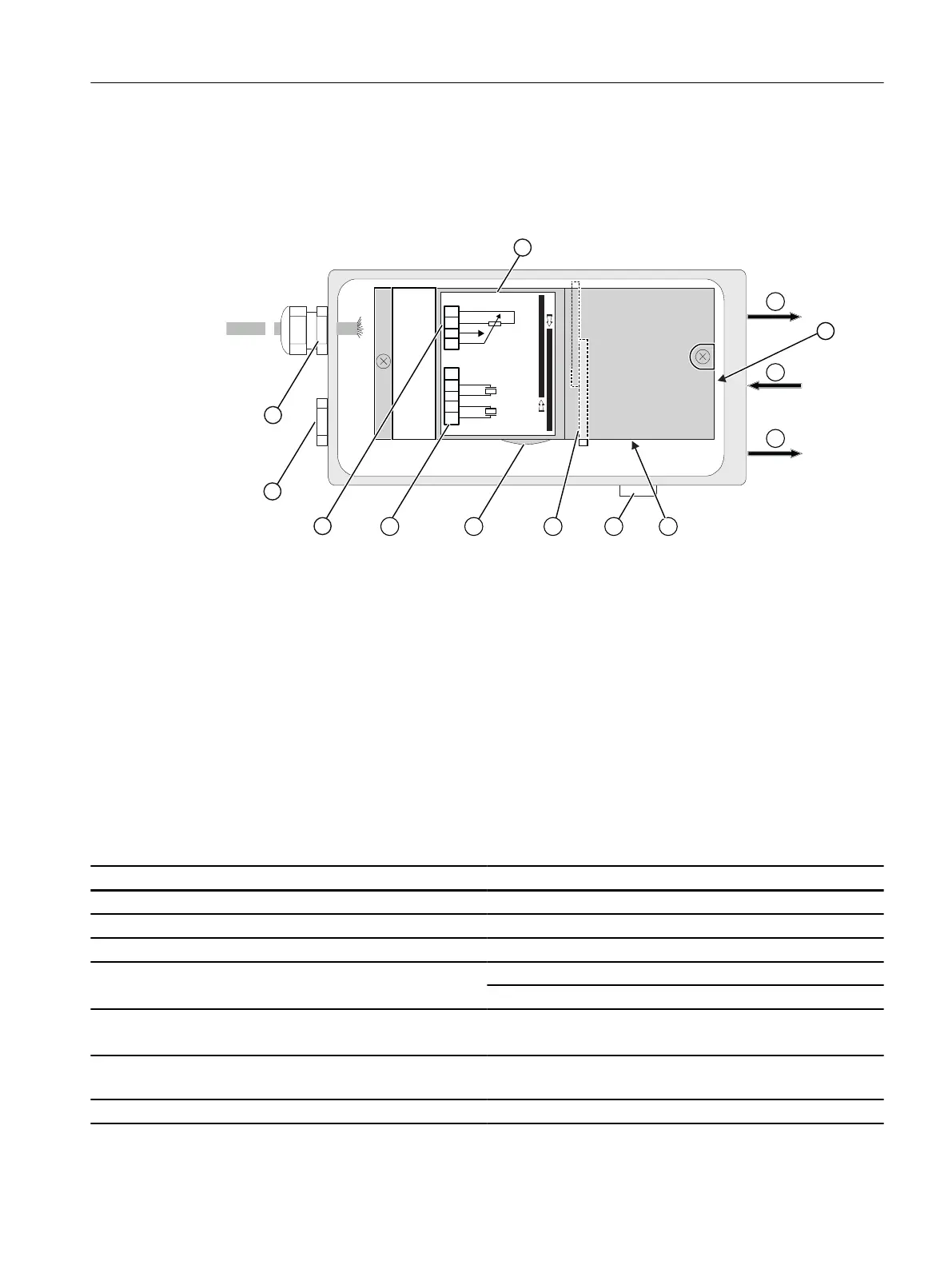

Device view of positioner 6DR5910
'51*$$
a
a
r
r
r
r
*1'
9B5()
9&&
326
$EO
$EO
=XO
=XO
① Output: Actuating pressure Y1 ⑦ Friction clutch adjustment wheel
② Input: Supply air PZ ⑧ Connecting terminals, positioner
③
Output: Actuating pressure Y2 (not for
6DR59..)
⑨ Blanking plug
④ Restrictor Y1 ⑩ Cable gland
⑤ Exhaust air outlet with a sound absorber ⑪ Wiring diagram on module cover
⑥ Transmission ratio selector ⑫ Purge air switch
F.4 Technical specifications, 19" slide-in module
This section contains the technical specifications of the 19" slide-in module. The technical
specifications of the positioner 6DR5910-... correspond to the technical specifications
(Page 281) of a polycarbonate enclosure.
Rated conditions
Degree of protection
1)
IP40 according to IEC/EN 60529
Mounting position Any
Vibration resistance
● Harmonic oscillations (sine wave) according to DIN
EN 60082-2-6/05.96
3.5 mm (0.14"), 5 ... 8.4 Hz, 4 cycles/axle
10 m/s² (33 ft/s²), 8.4 ... 500 Hz, 4 cycles/axle
● Oscillations (sinusoidal) according to DIN
EN 60068-2-6/04.96
KWU DD 7080.9/93
KTA 3503 from 11.86
● Shock (half-sine) according to DIN
EN 60068-2-27/02.2010
150 m/s² (492 ft/s²), 11 ms, 6 shocks/axle
Climate class According to IEC/EN 60721-3
Positioner with remote control electronics
F.4 Technical specifications, 19" slide-in module
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 359
