Description

3.3 ULTRAMAT 7

Operating with the Local User Interface

Operating Manual, 06/2017, A5E31930478-05

3.3.2

How the ULTRAMAT 7 works

Overview

①

Source, adjustable

⑦

Reference chamber

②

Optical filter

⑧

Sample gas outlet

③

Beam splitter

⑨

Detector chambers (measurement/reference compart-

ment)

④

Chopper

⑩

Microflow sensor

⑤

Sample gas inlet

⑪

Decoupler

⑥

Sample chamber

⑫

Slider, adjustable

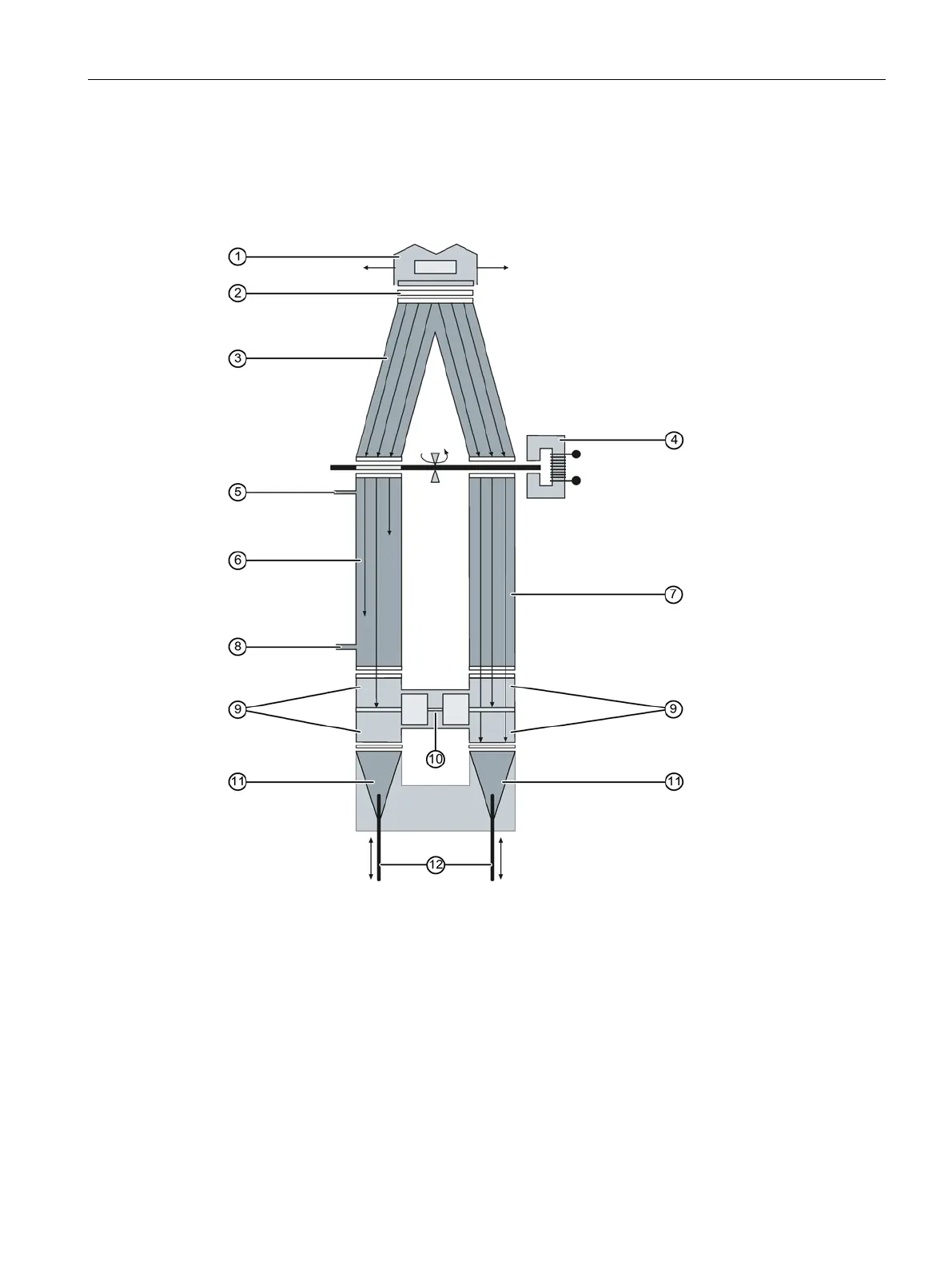

Figure 3-4 Principle of operation of ULTRAMAT 7
