Description
3.6 Combined operation
Operating with the Local User Interface
44 Operating Manual, 06/2017, A5E31930478-05

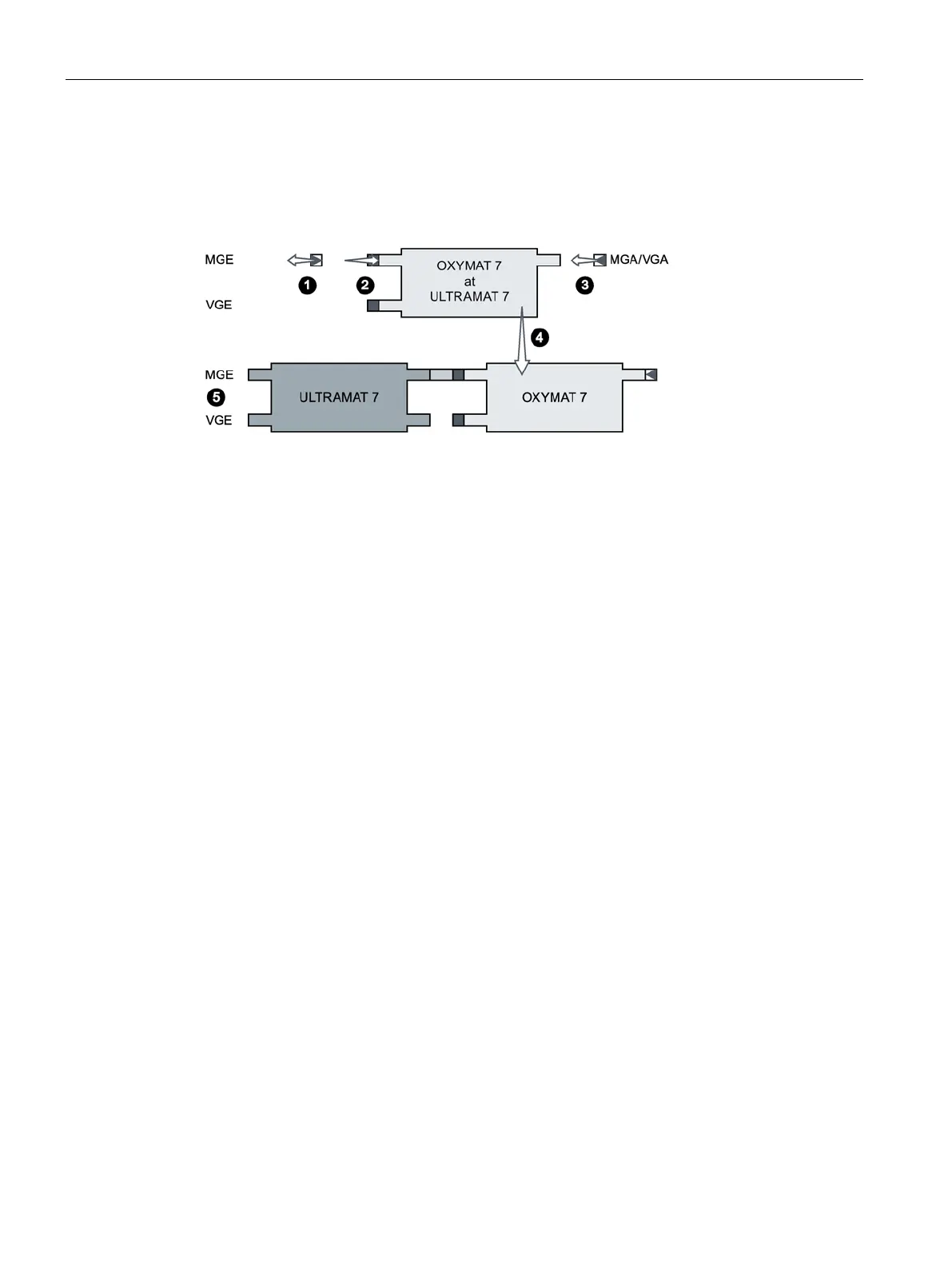

Retrofitting example "Suction operation, serial" operating mode for OXYMAT 7/ULTRAMAT 7
When you are using the ULTRAMAT 7 and the OXYMAT 7 analyzer module in serial suction
operation, you must convert the sample gas restrictor of the OXYMAT 7 analyzer module:
Sample gas inlet → Sample gas outlet.
Sample gas inlet (MGE), Reference gas inlet (VGE)
Sample gas outlet (MGA)/reference gas outlet
Remove sample gas restrictor from the sample gas inlet of the additional OXYMAT 7
Install the clamping screw into the sample gas inlet of the additional OXYMAT 7 ana-
Install the sample gas restrictor into the sample gas outlet of the additional OXYMAT 7
Install additional OXYMAT 7 analyzer module
Target configuration: ULTRAMAT 7 and OXYMAT 7 in serial suction operation
Figure 3-12 Retrofitting of the sample gas restrictors: Example "Pressure operation, serial"
Plug & measure permitted activities
3.6.4.1
"Plug & Measure" is the ability to recognize any analyzer modules and/or option modules
added at a later time and to integrate them. This ability makes it easier to replace modules
for maintenance purposes as well as installing devices at a later time, for example, option
modules.
When you replace or retrofit a module, the processing module recognizes the change in the
device configuration during a restart. The type of module as well as its parameter
assignment are recognized. You can either apply the parameter assignments of the
replacement/retrofit module or use those of the previous module.
