Description
3.6 Combined operation
Operating with the Local User Interface
Operating Manual, 06/2017, A5E31930478-05
37
Sample gas restrictors/clamping screws
Overview
For version with pipes:
Sample gas bushing with 6 mm connection fittings
For version with hoses:
Sample gas bushing with 6 mm connection fittings

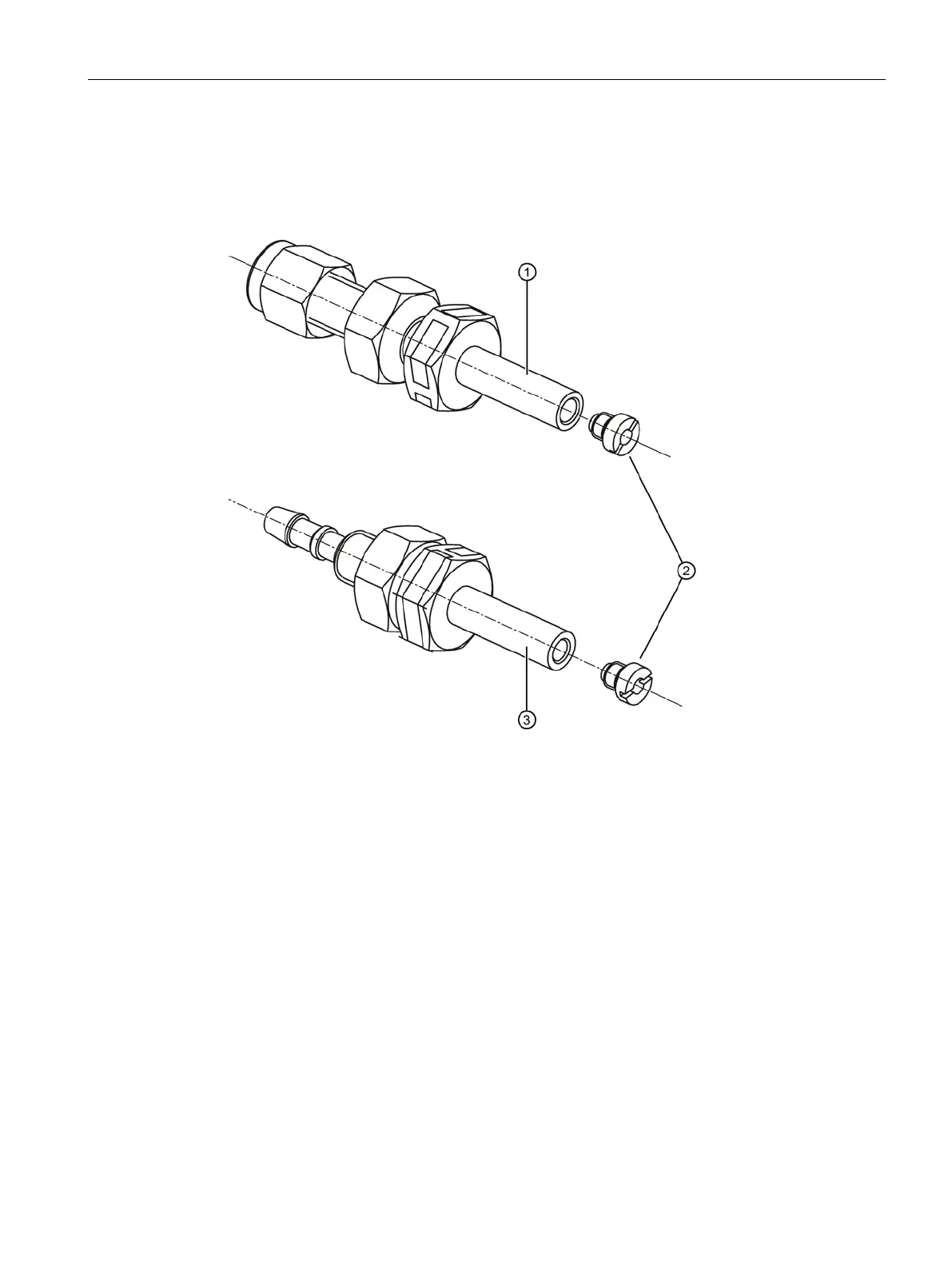

Figure 3-8 Sample gas connections with sample gas restrictors
For rack-mounted and wall-mounted devices, the sample gas connections of the analyzer
modules are 6 mm nozzles. Clamping screws are mounted onto these nozzles which must
be connected tightly to the incoming gas lines and outgoing gas lines.
